Ajax TurretCam (8MP/ 2.8 mm) black
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 2-3 days
Matching accessories

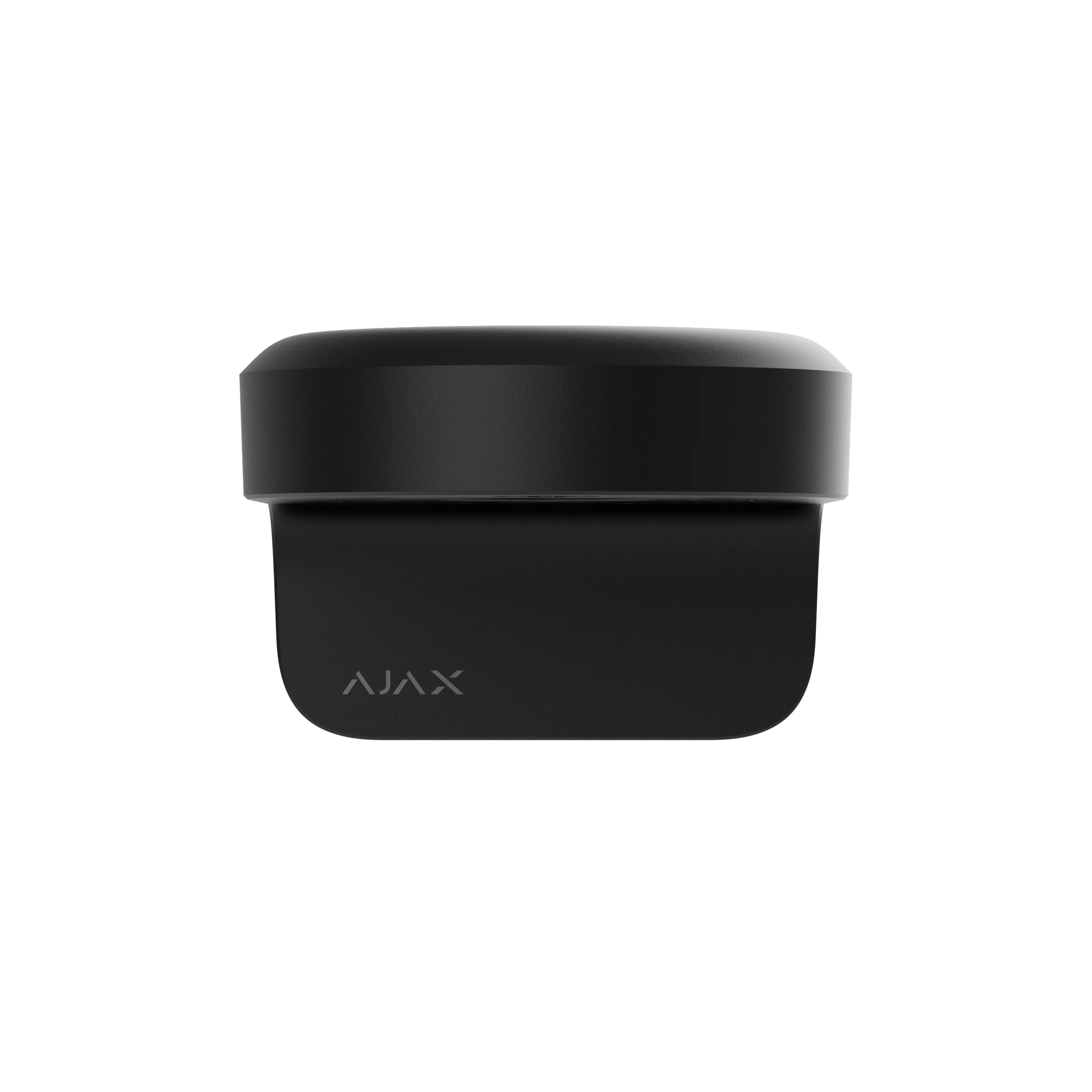

The Ajax MountCam A1 is designed as a camera bracket with a sturdy black aluminium frame. It fits the BulletCam (HL), TurretCam (HL) and DomeCam Mini (HL) models. The manufacturer describes installation as straightforward. The bracket is built to resist weather influences and follows a modern design. A secure camera overview is supported in this way. Camera bracketSturdy black aluminium frameFor BulletCam (HL), TurretCam (HL), DomeCam Mini (HL)Straightforward installationWeather resistant
Not in stock · delivery 2-3 days

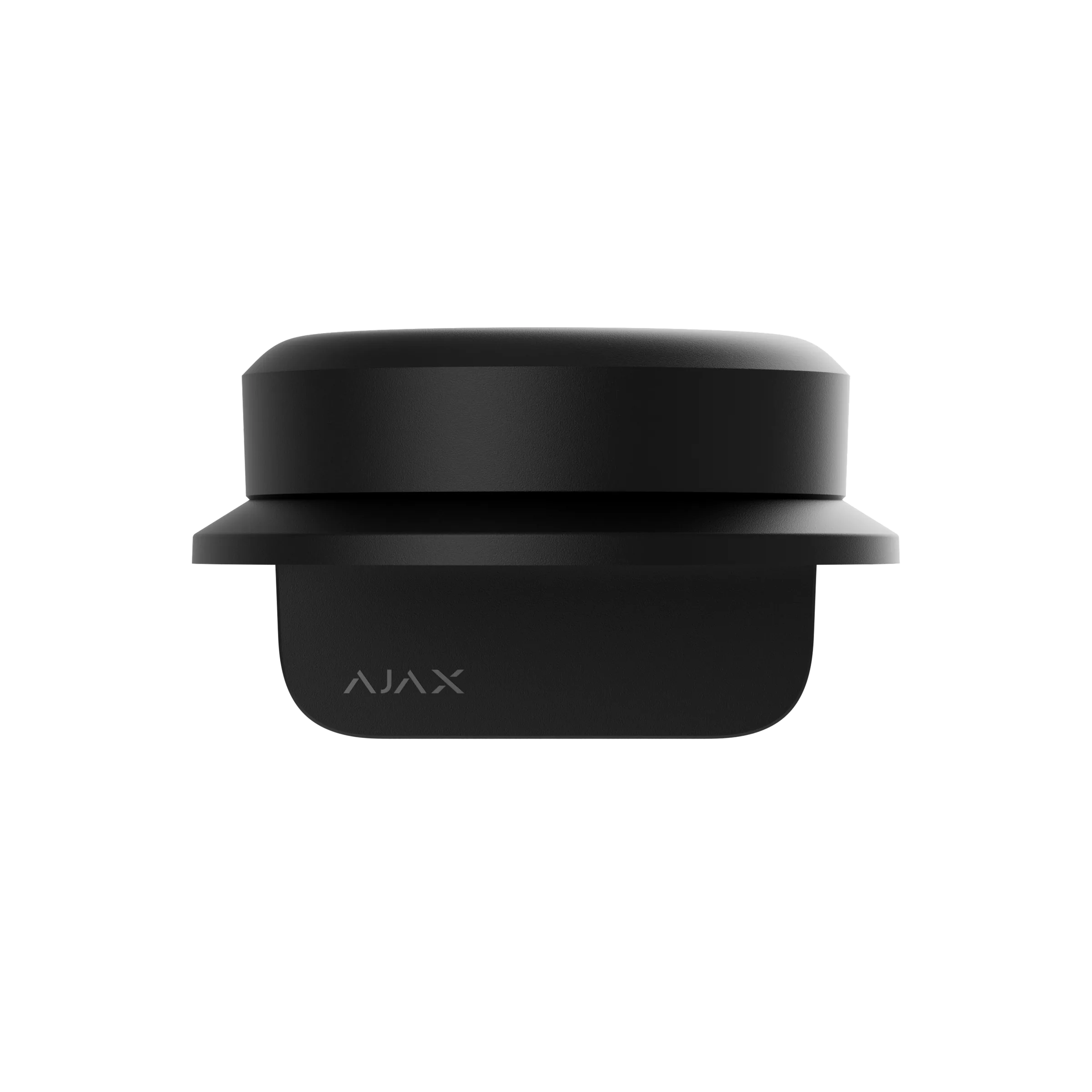

The Ajax MountCam A2 in black serves as a universal camera bracket with a sturdy black aluminium frame. Ajax cameras can be mounted on it, and rotation through 360° is possible. The manufacturer names straightforward installation. The bracket is designed to resist weather influences and is modern in appearance. A secure camera overview is supported in this way. Universal camera bracketSturdy black aluminium frameCompatible with Ajax cameras360° rotationWeather resistant
Not in stock · delivery 2-3 days

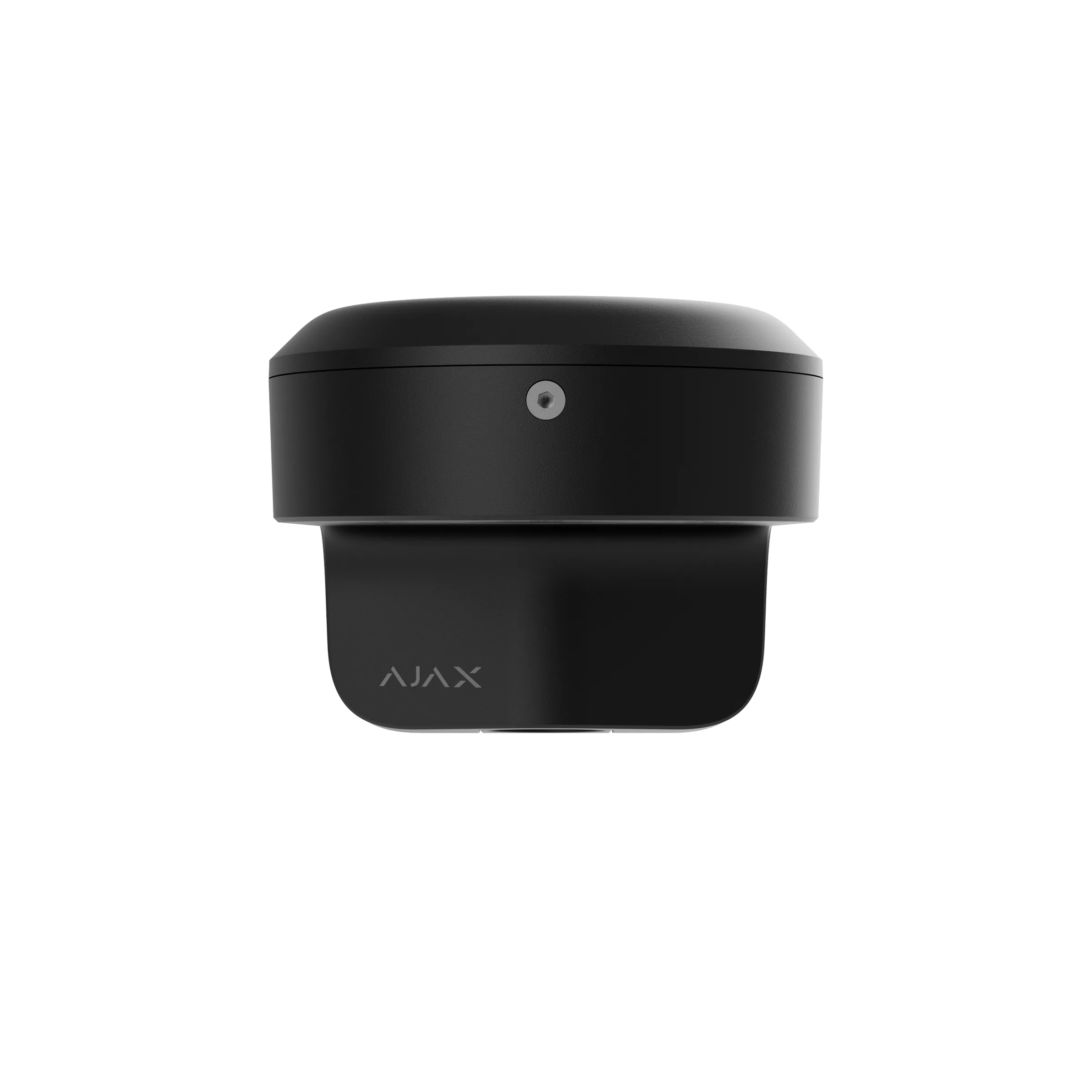

Finished in black, the Ajax MountCam B1 camera bracket features a sturdy black aluminium frame. It is compatible with BulletCam (HL), TurretCam (HL) and DomeCam Mini (HL). The manufacturer describes installation as straightforward. The bracket resists weather influences and is modern in appearance. It supports a secure camera overview. Camera bracketSturdy black aluminium frameFor BulletCam (HL), TurretCam (HL), DomeCam Mini (HL)Straightforward installationWeather resistant
Not in stock · delivery 2-3 days

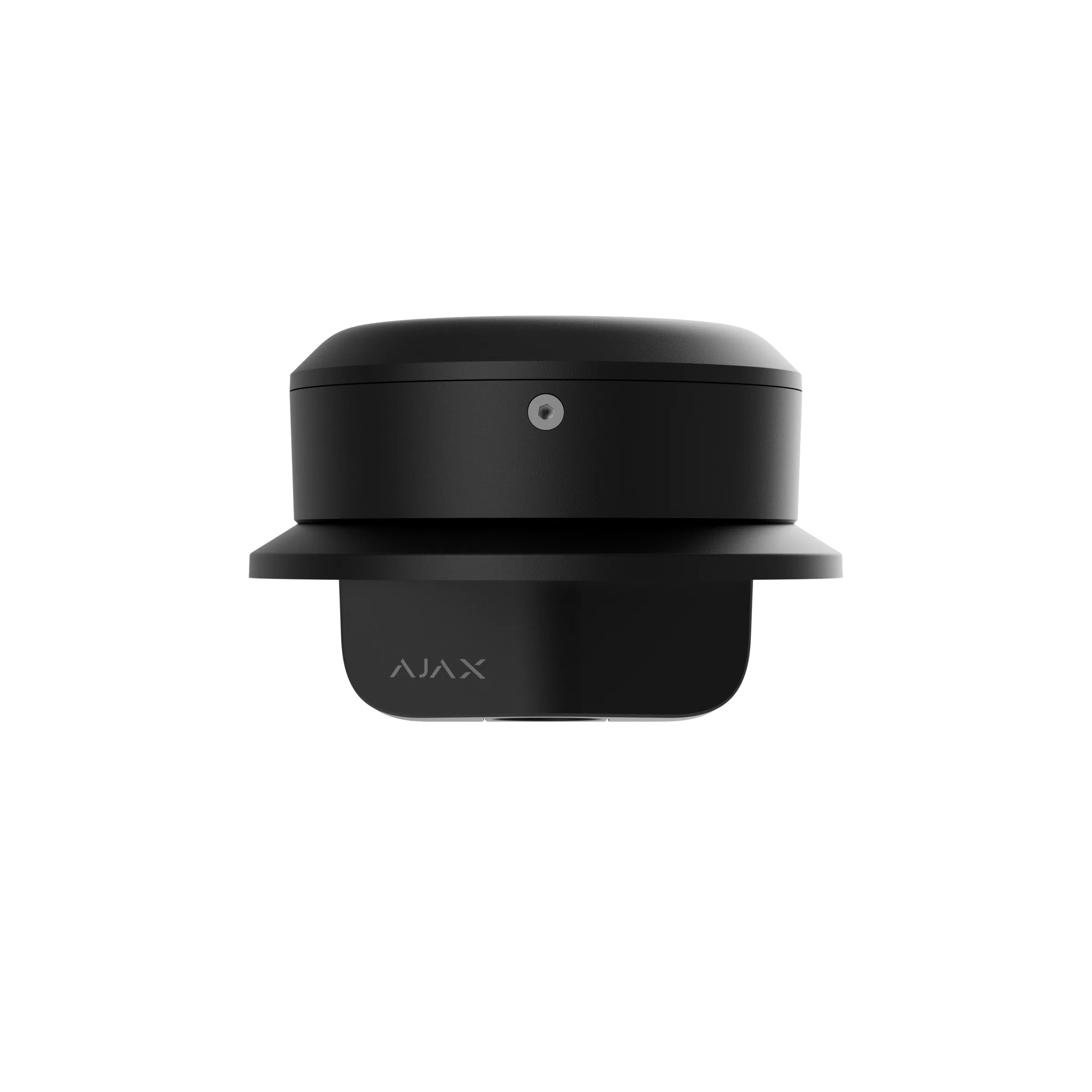

The Ajax MountCam B2 universal camera bracket comes with a sturdy black aluminium frame. Ajax cameras can be mounted on it, and rotation through 360° is provided for. The manufacturer names straightforward installation. The bracket is designed to resist weather influences and is modern in appearance. It supports a secure camera overview. Universal camera bracketSturdy black aluminium frameCompatible with Ajax cameras360° rotationWeather resistant
Not in stock · delivery 2-3 days

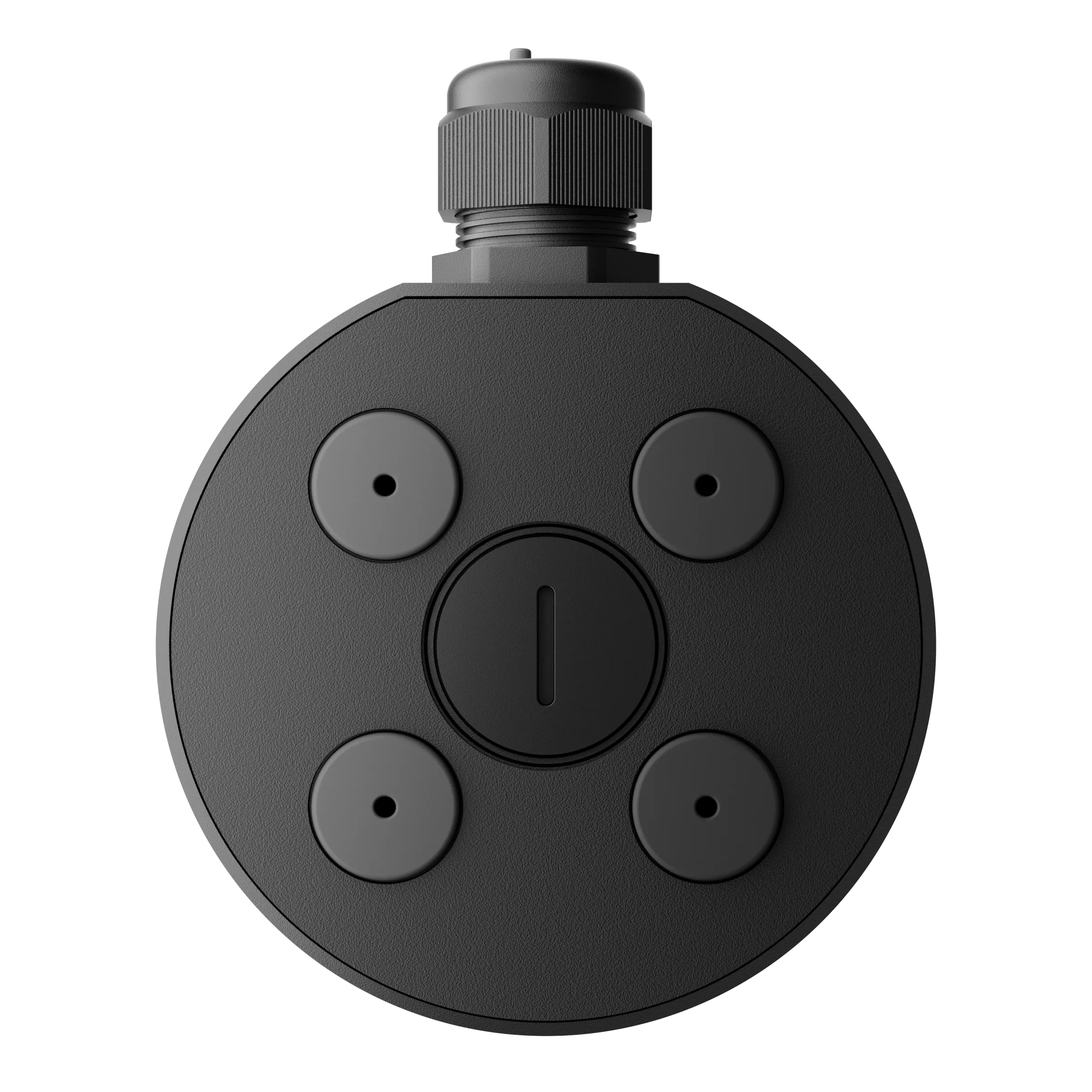

The JunctionBox is a weatherproof mounting enclosure measuring 118x59 mm. An IP65 rating and a robust build in durable material allow it to be used indoors as well as outdoors. Cable connections are held securely inside, and installation remains simple. The box is matched to Ajax system components and finished in black. Weatherproof mounting boxIP65 rating118x59 mm dimensionsFor Ajax system componentsSecure cable connectionBlack finish
Not in stock · delivery 2-3 days
Product data
- Manufacturer
- Ajax
- Article number
- 64928.197.BL1
- EAN / GTIN
- 4823114071362
Description

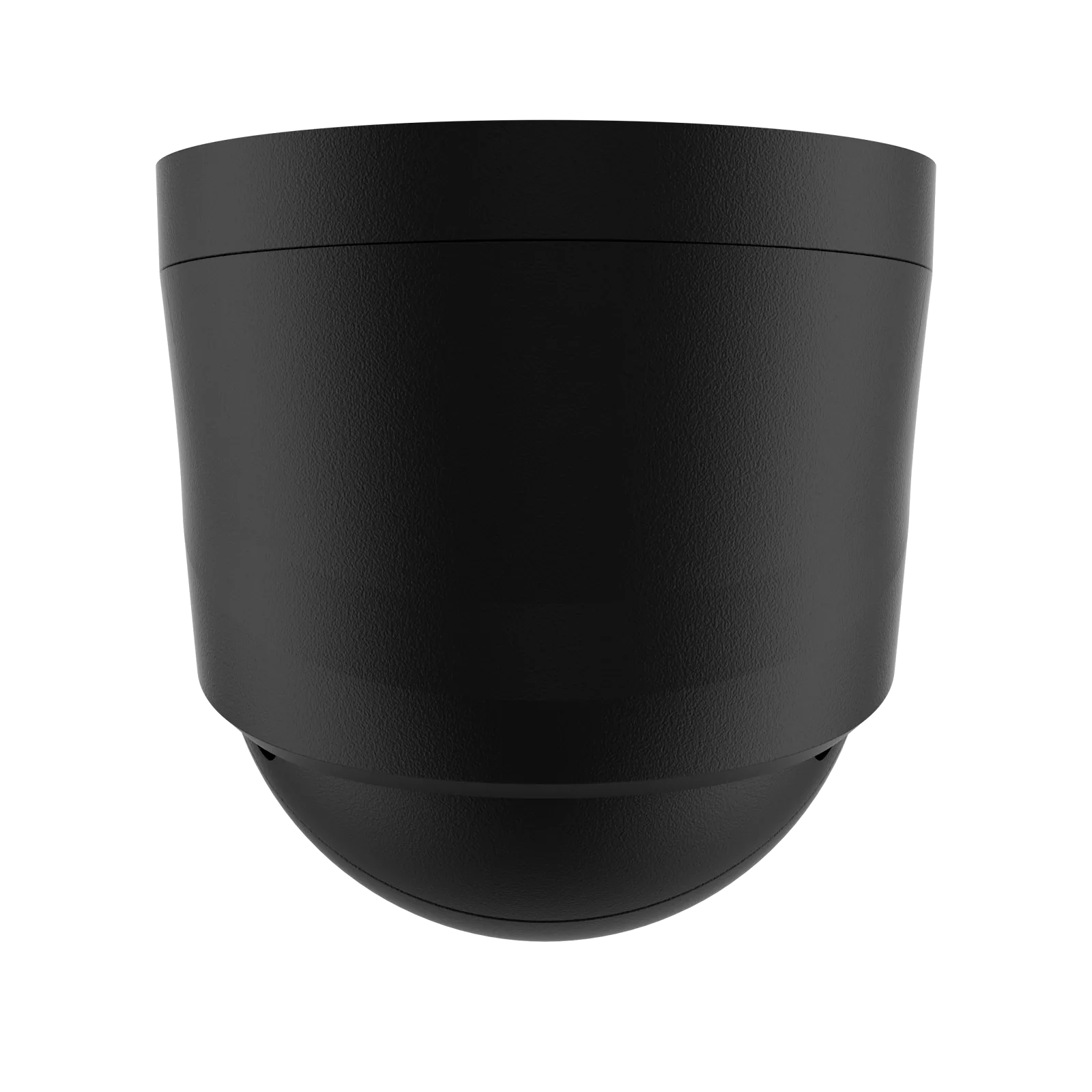

The Ajax TurretCam is a wired IP camera built around a 5 MP CMOS image sensor of 1/2.7" type, a fixed 2.8 mm lens and a fixed f/1.6 iris. Coverage spans 100–110° horizontally, 50–60° vertically and 125–135° diagonally, with DORI figures of 65 m for detection, 26 m for observation, 13 m for recognition and 6.5 m for identification. Video is encoded in H.265 or H.264 at up to 2880 × 1620 pixels and up to 20 fps in linear mode or up to 15 fps with HDR, backed by 120 dB True WDR and a signal-to-noise ratio above 52 dB. Smart IR illumination extends to 50 m, and AI object detection separates people, pets and vehicles. Recordings can be held locally on microSD cards up to 256 GB rated Class V30 or faster. Networking uses a single self-adaptive RJ-45 Ethernet port at 10/100 Mbps, conformant with ONVIF® Profile S and paired with the JetSparrow video protocol.
- 5 MP CMOS 1/2.7", fixed 2.8 mm lens, f/1.6
- DORI: detection 65 m, identification 6.5 m
- H.265/H.264, up to 20 fps linear, 15 fps HDR
- 120 dB True WDR, SNR above 52 dB
- Smart IR illumination up to 50 m
- RJ-45 10/100 Mbps, ONVIF® Profile S
Made by
Ajax Systems is the alarm and security system with the widest range in the catalogue: hubs, motion, opening and glass break detectors, MotionCam with photo verification, sirens, keypads, the EN54 fire detection line, cameras, the Ajax NVR and automation and comfort devices – as the Jeweller wireless system or wired via Fibra, in white and black. The Superior line is certified to EN 50131 Grade 3. AI4Vision is an authorised Ajax partner. All devices are managed through the Ajax app and the monitoring station connection; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Additional information (1)
- Additional information – Warranty
- 24 months
Audio (1)
- Audio – Audio codec
- G711-ULAW, G711-ALAW, G726, G722
Camera (9)
- Camera – DORI distance
- Detection: 213 ft, Observation: 85 ft, Recognition: 42 ft, Identification: 21 ft
- Camera – Field of view
- horizontal: 100–110°, vertical: 50–60°, diagonal: 125–135°
- Camera – Image sensor
- 5 MP CMOS, 1/2.7" type
- Camera – Lens focal length
- 2.8 mm
- Camera – Lens focal type
- fixed
- Camera – Lens iris type
- fixed
- Camera – Maximum aperture
- f/1.6
- Camera – Maximum illumination distance
- IR LED: up to 164 ft
- Camera – Signal-to-noise ratio (SNR)
- more than 52 dB
Enclosure (5)
- Enclosure – Dimensions
- 4.05″ × 3.86″ × 3.86″
- Enclosure – Operating humidity
- up to 90%
- Enclosure – Operating temperature range
- from −22 °F to 140 °F
- Enclosure – Protection class
- IP66, IK08
- Enclosure – Weight
- 17.50 oz
Intelligent video analytics (2)
- Intelligent video analytics – AI object detection
- People, Pets, Vehicles
- Intelligent video analytics – Smart IR illumination
- up to 164 ft
Key features (1)
- Key features – Video protocol
- JetSparrow
Network (3)
- Network – ONVIF®
- conformant with ONVIF® Profile S
- Network – Port
- 1 × RJ-45 self-adaptive Ethernet (10/100 Mbps)
- Network – Protocol
- HTTP, HTTPS, TCP/IP, IPv4, IPv6, SNMP, RTSP, UDP, DHCP, DNS, DDNS
Power supply (3)
- Power supply – Average power consumption
- 8.5 W
- Power supply – PoE standard
- 802.3at/af, 36–57 V, Class 3
- Power supply – Power supply unit
- 12 V⎓, 1 А
Sabotage protection (1)
- Sabotage protection – Authentication
- via Ajax Cloud
Video (6)
- Video – Dynamic range
- 120 dB (True WDR)
- Video – Frame rate
- up to 20 fps (Linear), up to 15 fps (HDR)
- Video – Image rotation
- 0°, 180°
- Video – Resolution
- 5 MP (2880 × 1620), 4 MP (2560 × 1440), 3 MP (2304 × 1296), 2 MP (1920 × 1080), 0.6 MP (1024 × 576)
- Video – Storage
- microSD, Camera supports microSD up to 256 GB. The memory card should be Class V30 or faster. The card is not included in the complete set.
- Video – Video codec
- H.265, H.264
