Ajax EN54 FireProtect (Heat) black
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 2-3 days
Product data
- Manufacturer
- Ajax
- Article number
- 119918.273.BL1
- EAN / GTIN
- 4823114061073
Description

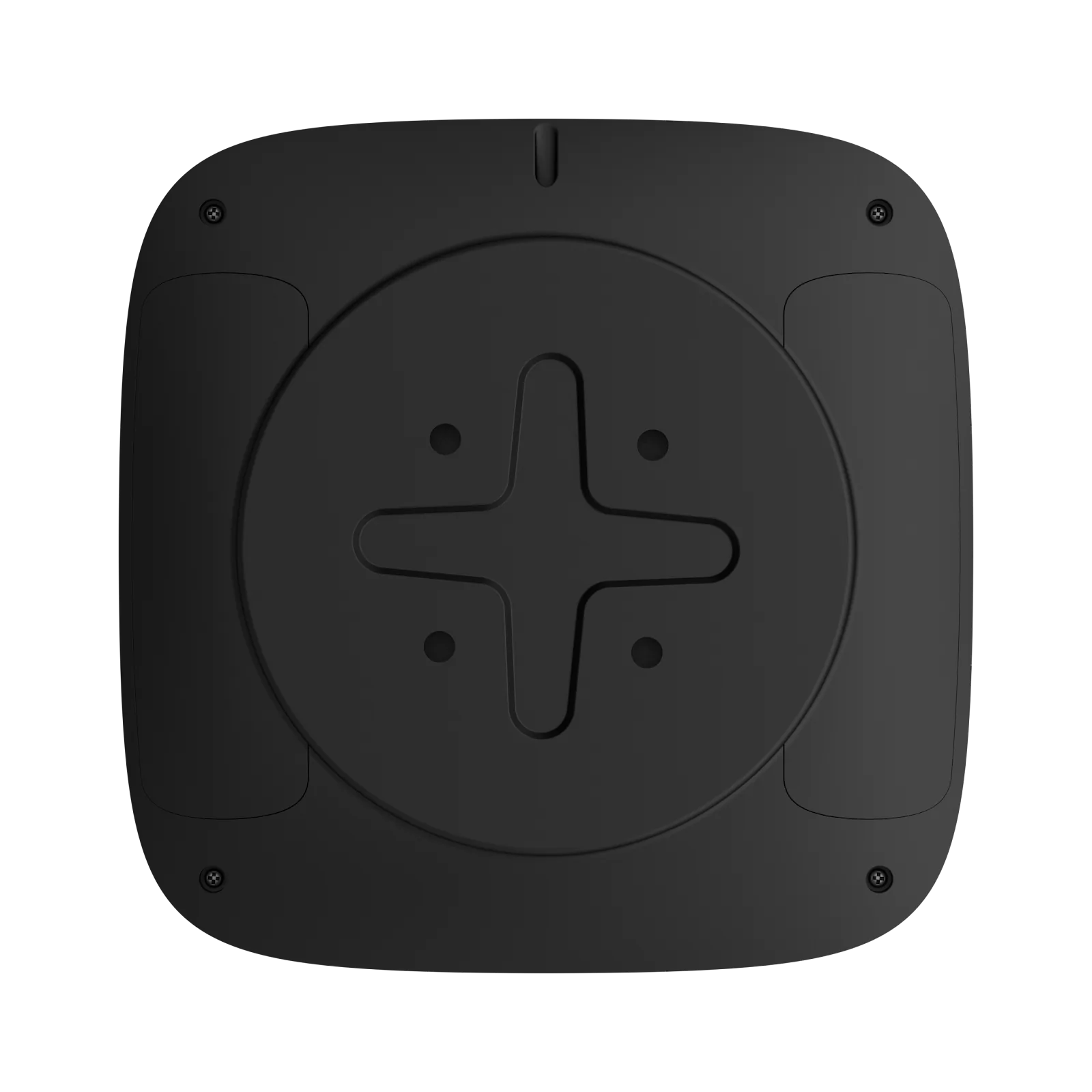

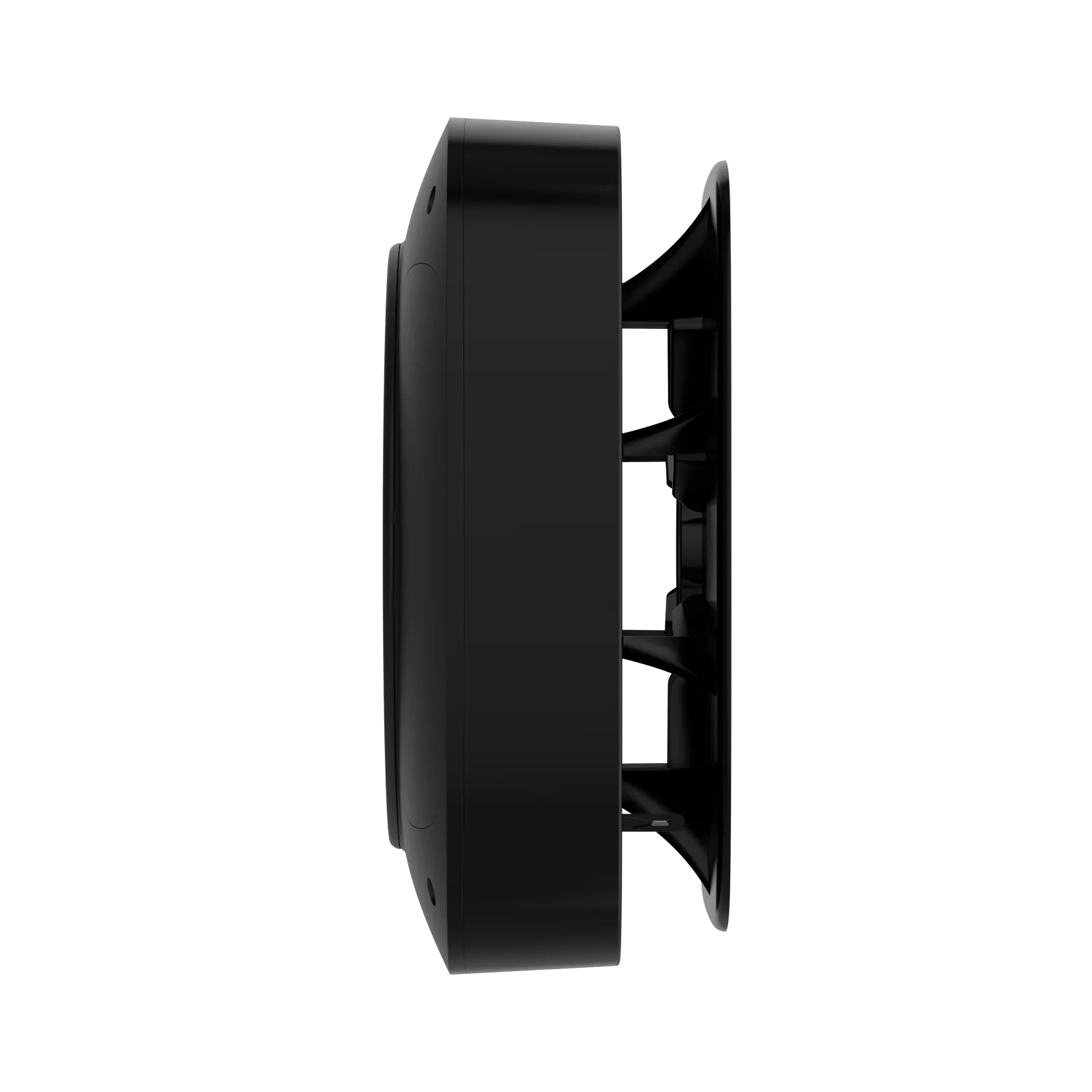

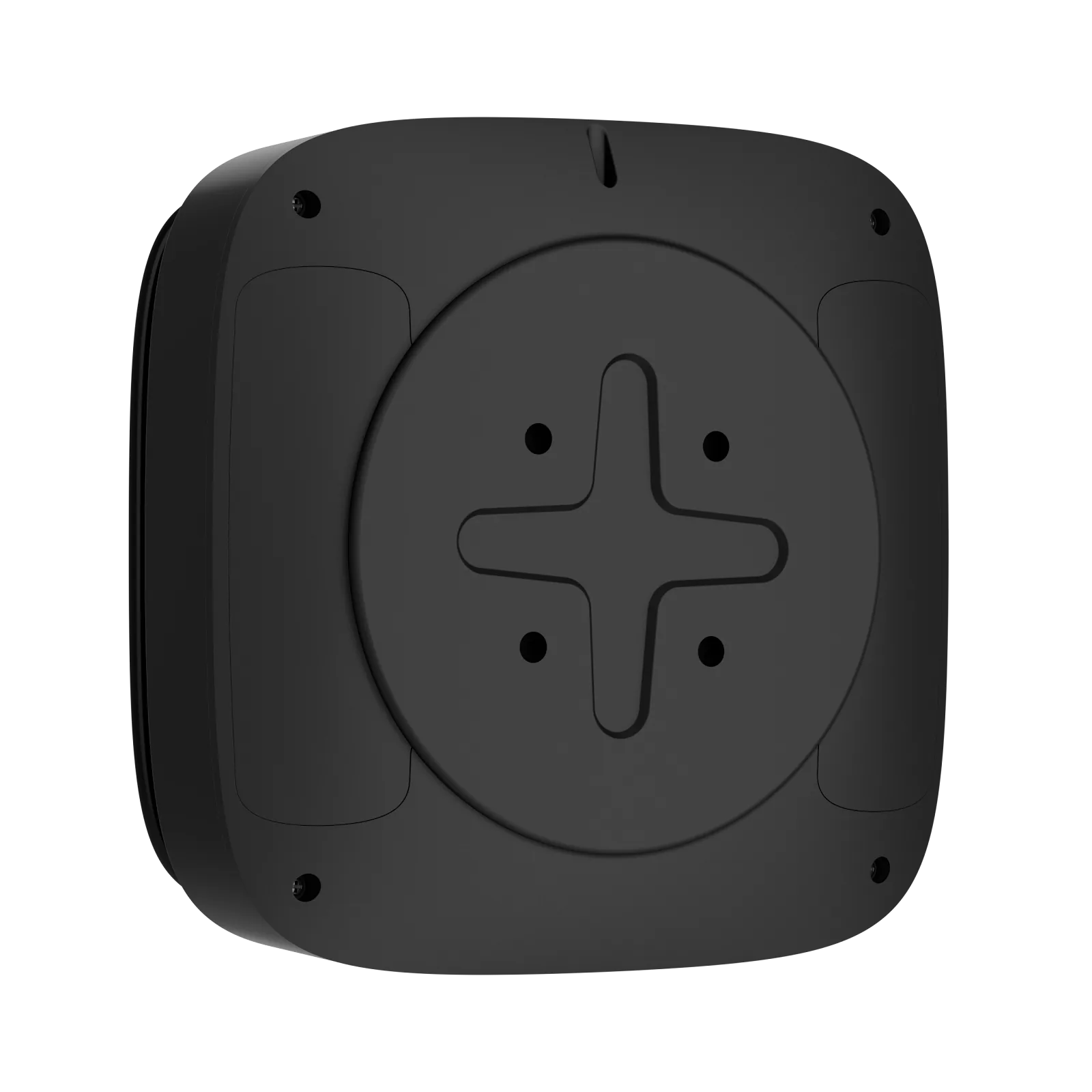

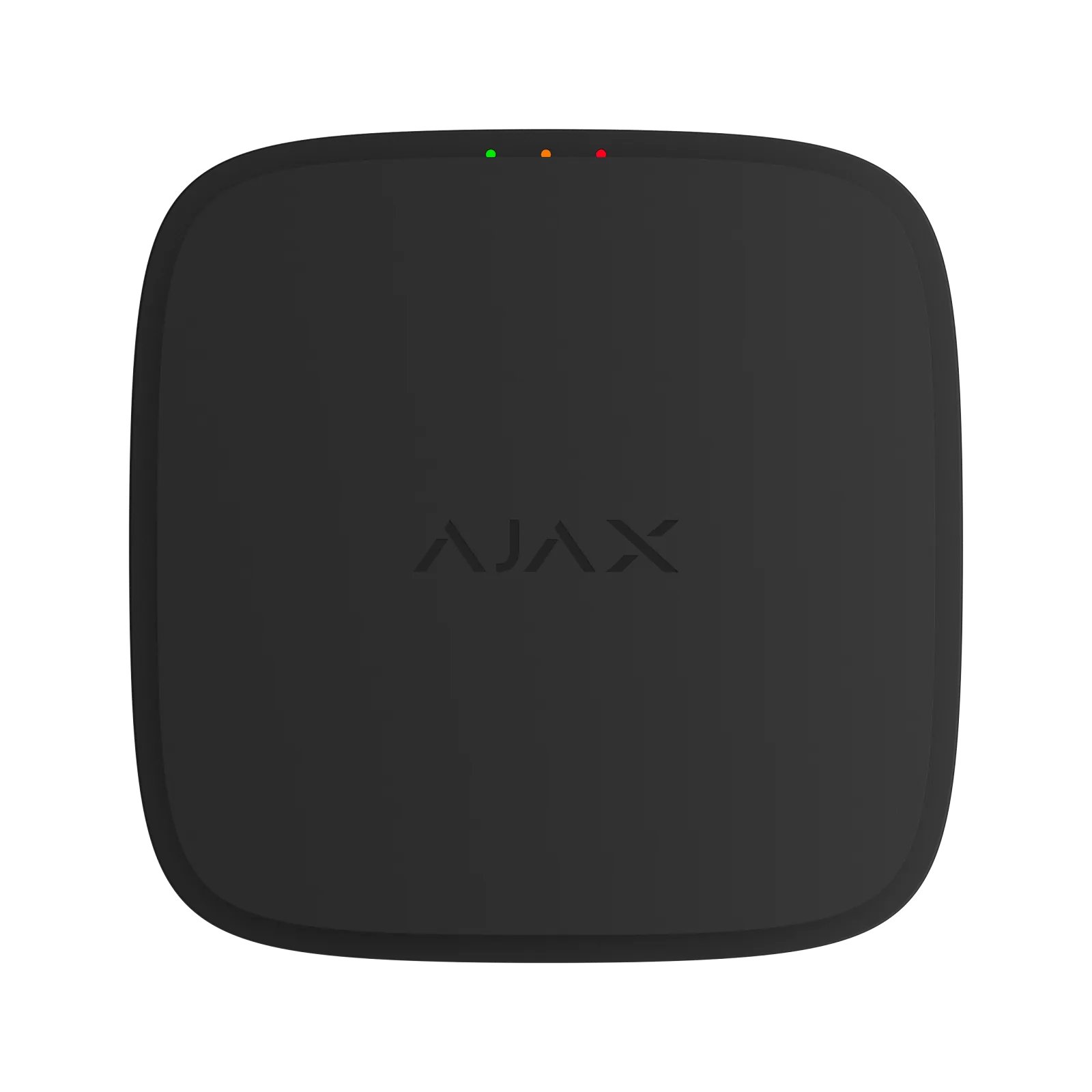

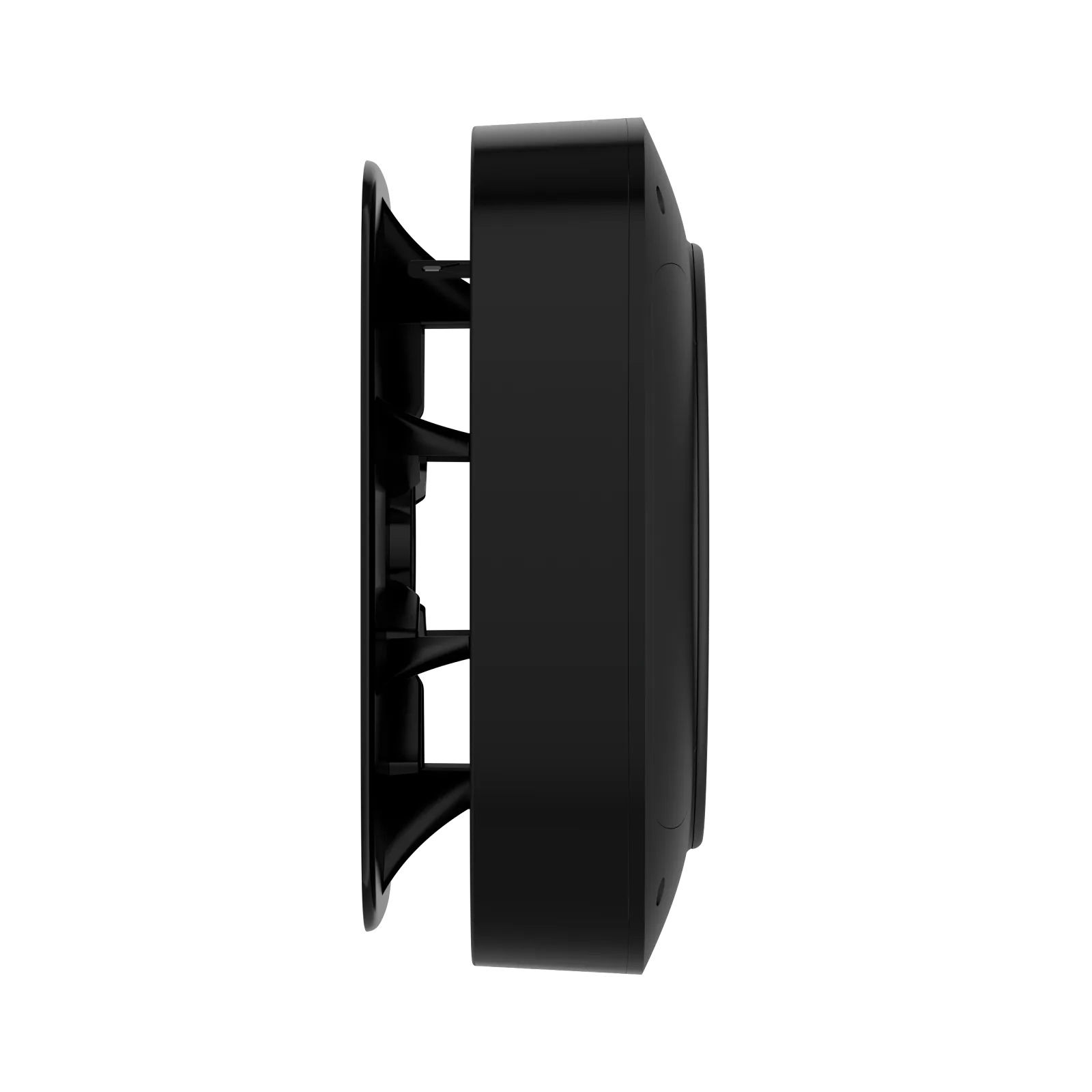

The EN54 FireProtect (Heat) is an addressable wireless heat detector for EN 54 fire alarm systems. Two thermistors measure the room temperature and trigger according to the selected mode: A1, A1R, A1S, B, BR, BS, C, CR, CS or a fixed temperature threshold. It reports to the fire control panel over Jeweller two-way radio at ranges of up to 1,700 metres. Red, yellow and green indicators show the device state on site, and the unit mounts on a SmartBracket plate. Housing colour: black.
Made by
Ajax Systems is the alarm and security system with the widest range in the catalogue: hubs, motion, opening and glass break detectors, MotionCam with photo verification, sirens, keypads, the EN54 fire detection line, cameras, the Ajax NVR and automation and comfort devices – as the Jeweller wireless system or wired via Fibra, in white and black. The Superior line is certified to EN 50131 Grade 3. AI4Vision is an authorised Ajax partner. All devices are managed through the Ajax app and the monitoring station connection; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Additional features (1)
- Additional features – LED indication
- red, yellow, green
Additional information (1)
- Additional information – Warranty
- 24 months
Communication (5)
- Communication – Frequency bands
- 866.0–866.5 MHz, 868.0–868.6 MHz, 868.7–869.2 MHz, 905.0–926.5 MHz, 915.85–926.5 MHz, 921.0–922.0 MHz
- Communication – Jeweller communication technology
- Zwei-Wege-Kommunikation., Erweiterter Sabotageschutz., Blockverschlüsselung mit einem dynamischen Schlüssel., Sofortige Benachrichtigungen., Fernsteuerung und -konfiguration über Ajax Apps.
- Communication – Maximum effective radiated power (ERP)
- up to 20 mW
- Communication – Radio communication range
- up to 5,550 ft
- Communication – Radio signal modulation
- GFSK
Dangerous temperature detection (2)
- Dangerous temperature detection – Heat sensor modes
- A1, A1R, A1S, B, BR, BS, C, CR, CS, Fixed temperature
- Dangerous temperature detection – Sensitive element
- 2 × thermistor
Enclosure (6)
- Enclosure – Dimensions
- 4.87" × 4.87" × 1.90"
- Enclosure – Flammability rating
- UL 94 V-0
- Enclosure – Operating humidity
- up to 80%
- Enclosure – Operating temperature range
- from 32 °F to 122 °F
- Enclosure – Protection class
- IP20
- Enclosure – Weight
- 9.35 oz
Power supply (3)
- Power supply – Battery
- 2 × CR123A
- Power supply – Calculated battery life
- up to 6 years
- Power supply – Recommended battery type
- Huiderui CR123A; 3 V; 1,600 mAh, LiMnO₂
Sabotage protection (3)
- Sabotage protection – Connection loss detection
- after 36 s
- Sabotage protection – Lock for SmartBracket
- to secure the device on the SmartBracket mounting panel
- Sabotage protection – Protection against spoofing
- device authentication
