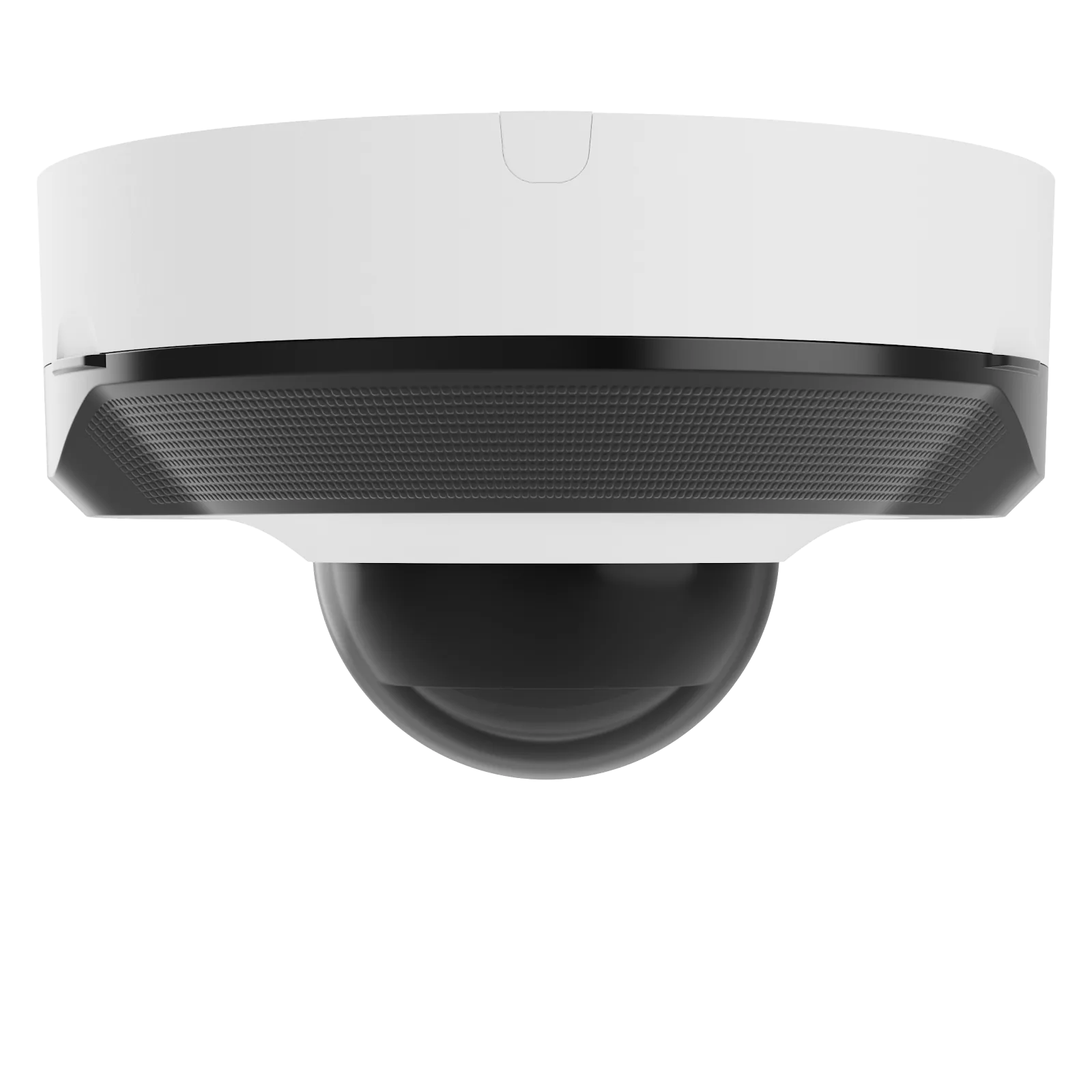

Ajax DomeCam Mini (8MP/ 4mm) white
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 2-3 days
Matching accessories
MountCam is an Ajax wall mount for installing video surveillance cameras reliably and conveniently at 90º to the wall surface, indoors and outdoors. This article is the MountCam A1 version. Wall mount for video surveillance camerasMounted at 90º to the wallIndoors and outdoors; A1 version
Not in stock · delivery 2-3 days
The Ajax MountCam A1 is a camera bracket with a sturdy aluminium frame, offered here in white. It is compatible with the BulletCam (HL), TurretCam (HL) and DomeCam Mini (HL) camera models. According to the manufacturer, installation is straightforward. The bracket is built to withstand weather influences and follows a modern design. It supports a secure camera overview. Camera bracketSturdy aluminium frameFor BulletCam (HL), TurretCam (HL), DomeCam Mini (HL)Straightforward installationWeather resistant
Not in stock · delivery 2-3 days
The Ajax MountCam A2 is a universal camera bracket built around a sturdy white aluminium frame. It is compatible with Ajax cameras and can be rotated through 360°. The manufacturer describes installation as straightforward. The bracket is designed to resist weather influences and follows a modern design. It supports a secure camera overview. Universal camera bracketSturdy white aluminium frameCompatible with Ajax cameras360° rotationWeather resistant
In stock, ships immediately · delivery 1-2 days
The Ajax MountCam B1 is a camera bracket with a sturdy white aluminium frame. It is intended for the BulletCam (HL), TurretCam (HL) and DomeCam Mini (HL) models. Installation can be carried out straightforwardly according to the manufacturer. The bracket is designed to resist weather influences and follows a modern design. It supports a secure camera overview. Camera bracketSturdy white aluminium frameFor BulletCam (HL), TurretCam (HL), DomeCam Mini (HL)Straightforward installationWeather resistant
Not in stock · delivery 2-3 days
The Ajax MountCam B2 universal camera bracket has a sturdy white aluminium frame. It accepts Ajax cameras and can be rotated through 360°. Installation is straightforward according to the manufacturer. Designed to resist weather influences, the bracket is at the same time modern in appearance. A secure camera overview is supported in this way. Universal camera bracketSturdy white aluminium frameCompatible with Ajax cameras360° rotationWeather resistant
In stock, ships immediately · delivery 1-2 days
The JunctionBox is a weatherproof mounting enclosure measuring 118x59 mm. An IP65 rating and a robust build in durable material allow it to be used indoors as well as outdoors. Cable connections are held securely inside, and installation remains simple. The box is matched to Ajax system components and finished in white. Weatherproof mounting boxIP65 rating118x59 mm dimensionsFor Ajax system componentsSecure cable connectionWhite finish
Not in stock · delivery 2-3 days
Product data
- Manufacturer
- Ajax
- Article number
- 76024.214.WH1
- EAN / GTIN
- 4823114074813
Description
The Ajax DomeCam Mini records through a 5 MP CMOS image sensor of 1/2.7" type behind a fixed 2.8 mm lens with a fixed f/1.6 iris. Its field of view covers 100–110° horizontally, 50–60° vertically and 125–135° diagonally, while DORI distances are stated as 65 m for detection, 26 m for observation, 13 m for recognition and 6.5 m for identification. The stream is available in H.265 or H.264 at up to 2880 × 1620 pixels and up to 25 fps, supported by 120 dB True WDR and a signal-to-noise ratio of more than 52 dB. Smart IR illumination reaches 15 m, AI object detection distinguishes people, pets and vehicles, and precise privacy settings give each system user defined control over the camera stream. Footage can be stored locally on microSD cards up to 256 GB rated Class V30 or faster. The camera connects through one self-adaptive RJ-45 Ethernet port at 10/100 Mbps, conformant with ONVIF® Profile G and S and using the JetSparrow video protocol.
- 5 MP CMOS 1/2.7", fixed 2.8 mm lens, f/1.6
- Up to 2880 × 1620 pixels at up to 25 fps
- DORI: detection 65 m, identification 6.5 m
- Smart IR illumination up to 15 m
- 120 dB True WDR, AI object detection
- RJ-45 10/100 Mbps, ONVIF® Profile G and S
Made by
Ajax Systems is the alarm and security system with the widest range in the catalogue: hubs, motion, opening and glass break detectors, MotionCam with photo verification, sirens, keypads, the EN54 fire detection line, cameras, the Ajax NVR and automation and comfort devices – as the Jeweller wireless system or wired via Fibra, in white and black. The Superior line is certified to EN 50131 Grade 3. AI4Vision is an authorised Ajax partner. All devices are managed through the Ajax app and the monitoring station connection; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Additional information (1)
- Additional information – Warranty
- 24 months
Audio (1)
- Audio – Audio codec
- G711-ULAW, G711-ALAW, G726, G722
Camera (9)
- Camera – DORI distance
- Detection: 213 ft, Observation: 85 ft, Recognition: 42 ft, Identification: 21 ft
- Camera – Field of view
- horizontal: 100–110°, vertical: 50–60°, diagonal: 125–135°
- Camera – Image sensor
- 5 MP CMOS, 1/2.7" type
- Camera – Lens focal length
- 2.8 mm
- Camera – Lens focal type
- fixed
- Camera – Lens iris type
- fixed
- Camera – Maximum aperture
- f/1.6
- Camera – Maximum illumination distance
- IR LED: up to 49 ft
- Camera – Signal-to-noise ratio (SNR)
- more than 52 dB
Enclosure (5)
- Enclosure – Dimensions
- 4.45″ × 2.36″
- Enclosure – Operating humidity
- up to 90%
- Enclosure – Operating temperature range
- from −22 °F to 140 °F
- Enclosure – Protection class
- IP66, IK08
- Enclosure – Weight
- 12.70 oz
Intelligent video analytics (2)
- Intelligent video analytics – AI object detection
- People, Pets, Vehicles
- Intelligent video analytics – Smart IR illumination
- up to 50 ft
Key features (1)
- Key features – Video protocol
- JetSparrow
Network (3)
- Network – ONVIF®
- conformant with ONVIF® Profile G and S
- Network – Port
- 1 × RJ-45 self-adaptive Ethernet (10/100 Mbps)
- Network – Protocol
- HTTP, HTTPS, TCP/IP, IPv4, IPv6, SNMP, RTSP, UDP, DHCP, DNS, DDNS
Power supply (3)
- Power supply – Average power consumption
- 12 W
- Power supply – PoE standard
- 802.3at/af, 36–57 V, Class 3
- Power supply – Power supply unit
- 12 V⎓, 1 А
Sabotage protection (1)
- Sabotage protection – Authentication
- via Ajax Cloud
Video (6)
- Video – Dynamic range
- 120 dB (True WDR)
- Video – Frame rate
- up to 25 fps
- Video – Image rotation
- 0°, 180°
- Video – Resolution
- 5 MP (2880 × 1620), 4 MP (2560 × 1440), 3 MP (2304 × 1296), 2 MP (1920 × 1080), 0.6 MP (1024 × 576)
- Video – Storage
- microSD, Camera supports microSD up to 256 GB. The memory card should be Class V30 or faster. The card is not included in the complete set.
- Video – Video codec
- H.265, H.264
