Ajax Curtain Outdoor Mini Jeweller white
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 2-3 days
Product data
- Manufacturer
- Ajax
- Article number
- 130273.345.WH1
- EAN / GTIN
- 4823114042607
Description

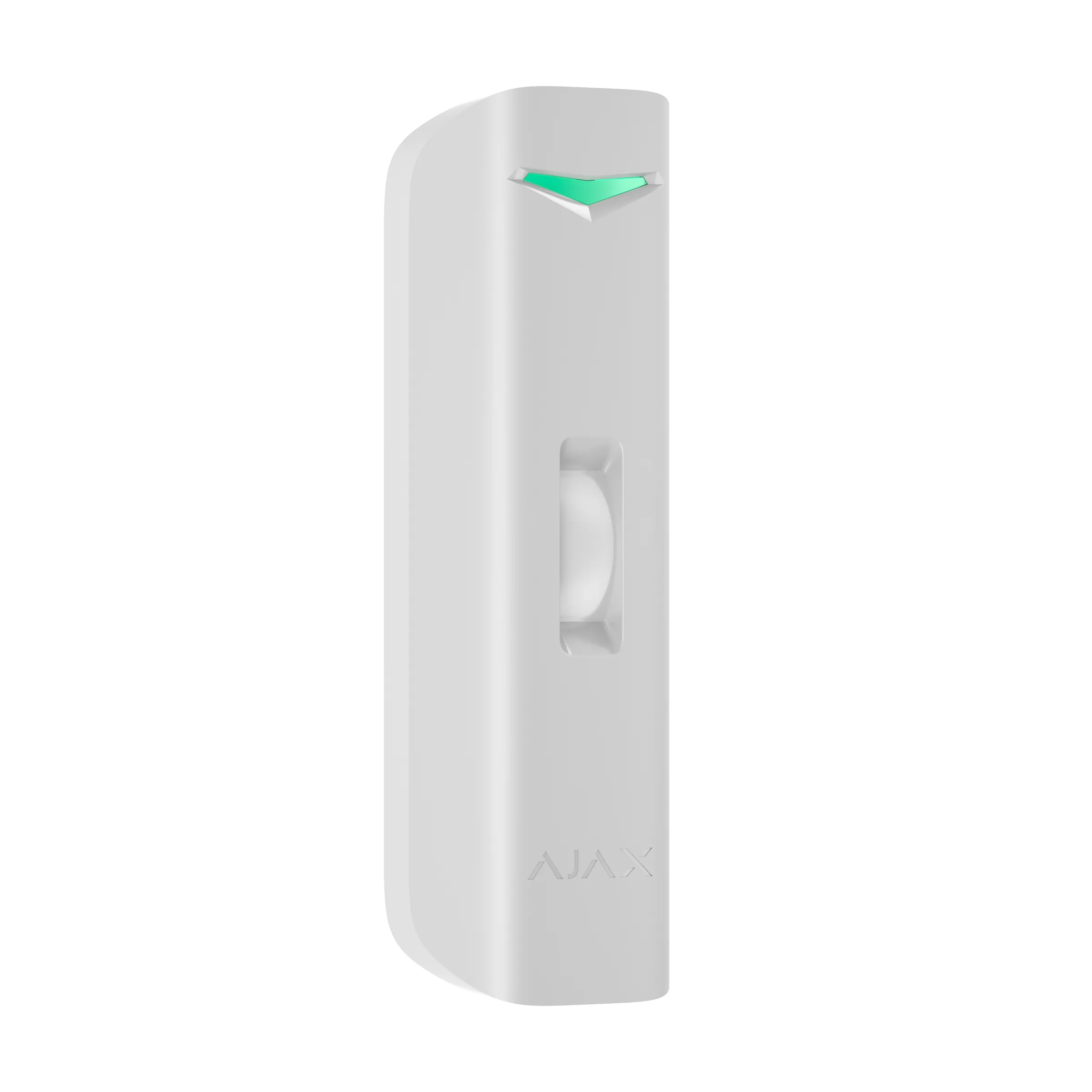

Ajax Curtain Outdoor Mini Jeweller is a wireless curtain-type motion detector for outdoor use whose compact body simplifies placement and reduces visibility. Detection relies on 1 × PIR sensor and 1 × K-band microwave sensor over a distance of up to 16.4 ft, with angles of 15° horizontally and 100° vertically, at motion speeds from 1 to 6.6 ft/s and across five sensitivity levels. Dual motion detection technology and SmartDetect counter false alarms, and pet immunity applies up to 28 inches in height with weight irrelevant. Transmission runs over Jeweller and Wings, each with two-way communication, advanced anti-sabotage, block encryption featuring a dynamic key, a radio range of up to 5,550 ft, GFSK modulation and up to 20 mW ERP in the 866.0–866.5 MHz, 868.0–868.6 MHz, 868.7–869.2 MHz, 905.0–926.5 MHz, 915.85–926.5 MHz and 921.0–922.0 MHz bands. Device authentication, an anti-masking system and an accelerometer report tampering, and communication loss is detected after 36 s. Power comes from 2 × CR123A batteries of type C with a calculated life of up to 3 years.
- PIR sensor and K-band microwave sensor
- Detection distance up to 16.4 ft
- Detection angles 15° horizontal, 100° vertical
- Pet immunity up to 28 inches in height
- Radio range up to 5,550 ft via Jeweller and Wings
- 2 × CR123A, up to 3 years of battery life
Made by
Ajax Systems is the alarm and security system with the widest range in the catalogue: hubs, motion, opening and glass break detectors, MotionCam with photo verification, sirens, keypads, the EN54 fire detection line, cameras, the Ajax NVR and automation and comfort devices – as the Jeweller wireless system or wired via Fibra, in white and black. The Superior line is certified to EN 50131 Grade 3. AI4Vision is an authorised Ajax partner. All devices are managed through the Ajax app and the monitoring station connection; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Additional information (1)
- Additional information – Warranty
- 24 months
Communication (6)
- Communication – Frequency bands
- 866.0 – 866.5 MHz, 868.0 – 868.6 MHz, 868.7 – 869.2 MHz, 905.0 – 926.5 MHz, 915.85 – 926.5 MHz, 921.0 – 922.0 MHz
- Communication – Jeweller communication technology
- Zwei-Wege-Kommunikation., Erweiterter Sabotageschutz., Blockverschlüsselung mit einem dynamischen Schlüssel., Sofortige Benachrichtigungen., Fernsteuerung und -konfiguration über Ajax Apps.
- Communication – Maximum effective radiated power (ERP)
- up to 20 mW
- Communication – Radio communication range
- up to 5,550 ft
- Communication – Radio signal modulation
- GFSK
- Communication – Wings communication technology
- Two-way communication., Advanced anti-sabotage., Block encryption featuring a dynamic key., Data packets reload in case of transmission errors.
Detection (7)
- Detection – False alarm prevention
- dual motion detection technology, SmartDetect
- Detection – Motion detection angles
- horizontal: 15°, vertical: 100°
- Detection – Motion detection distance
- up to 16.4 ft
- Detection – Motion detection speed
- 1 to 6.6 ft/s
- Detection – Pet immunity
- height: up to 28″, weight: irrelevant
- Detection – Sensitive elements
- 1 × PIR sensor, 1 × K-band microwave sensor
- Detection – Sensitivity
- 5 levels
Enclosure (7)
- Enclosure – Detector dimensions
- 5.71″ × 1.26″ × 1.69″
- Enclosure – Detector weight
- 4.59 oz
- Enclosure – Dimensions of detector with angle mount
- 5.71″ × 1.73″ × 2.13″
- Enclosure – Operating humidity
- up to 95%
- Enclosure – Operating temperature range
- from −13°F to 140°F
- Enclosure – Protection class
- IP55
- Enclosure – Weight of angle mount
- 0.7 oz
Power supply (13)
- Power supply – Battery
- 2 × CR123A
- Power supply – Calculated battery life
- up to 3 years
- Power supply – Detector’s nominal operating voltage
- 6 V⎓
- Power supply – Detector’s operating voltage range
- 4.1−6.2 V⎓
- Power supply – End-of-life battery capacity
- 170 mAh
- Power supply – End-of-life battery voltage
- 4.1 V⎓
- Power supply – Full battery capacity
- 1,600 mAh
- Power supply – Low battery recovery voltage
- 5.14 V⎓
- Power supply – Low battery voltage
- 4.48 V⎓
- Power supply – Manufacturer
- Huiderui or Panasonic
- Power supply – Maximum detector’s current consumption at nominal voltage
- 600 mA
- Power supply – Quiescent detector’s current consumption at nominal voltage
- 30 μA
- Power supply – Type
- Type C
Sabotage protection (4)
- Sabotage protection – Accelerometer
- alarm when the detector is moved
- Sabotage protection – Anti-masking system
- detects attempts to block the detector view
- Sabotage protection – Communication loss detection
- after 36 s
- Sabotage protection – Protection against spoofing
- device authentication
