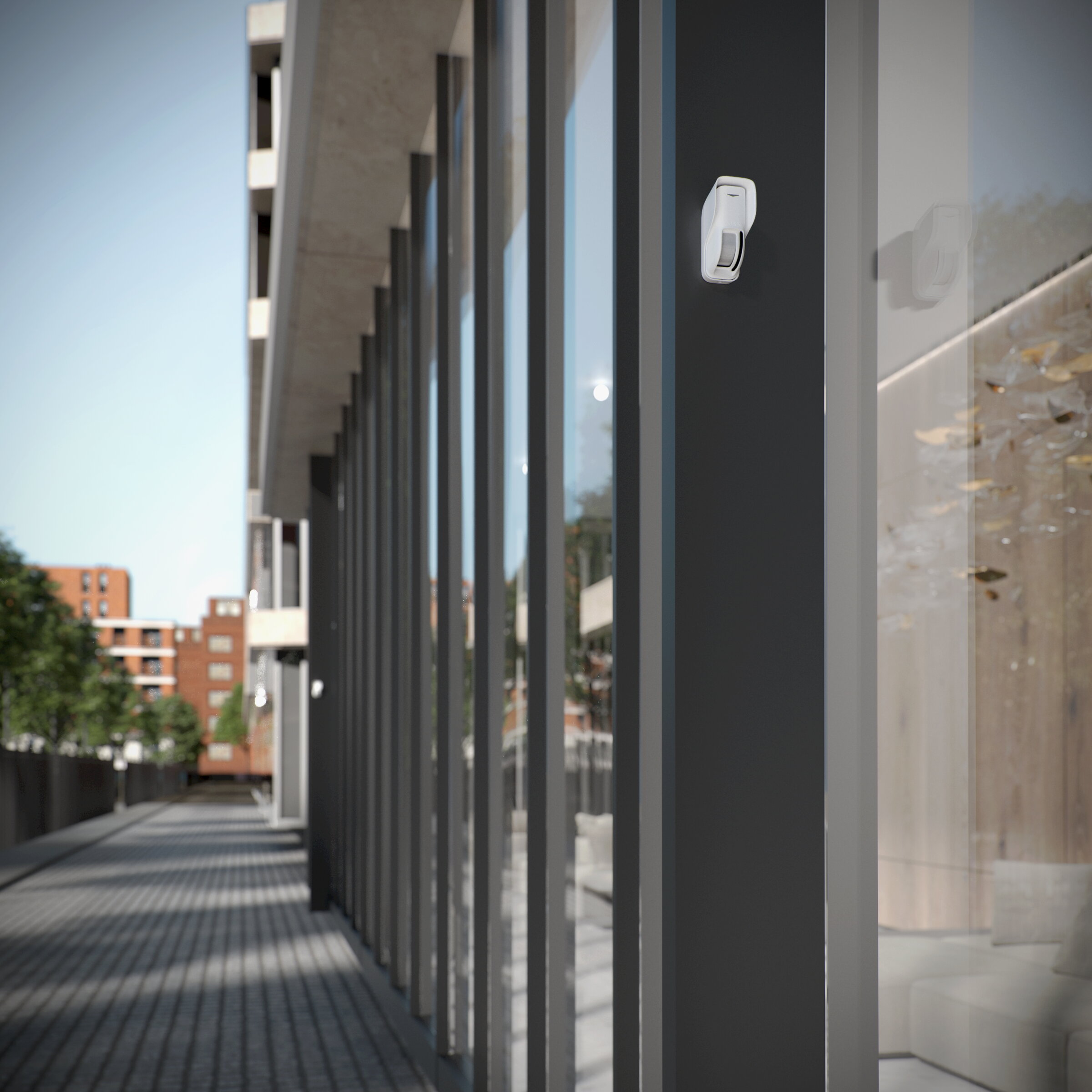

Ajax Curtain Outdoor Jeweller white
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 2-3 days
Product data
- Manufacturer
- Ajax
- Article number
- 101441.289.WH1
- EAN / GTIN
- 4823114076619
Description
Coverage is confined to a narrow curtain-shaped field of 8° horizontally and 85°/75°/15° vertically, over a motion detection distance of up to 26–39 ft. Two PIR sensors work alongside a K-band microwave sensor, and this dual motion detection technology together with SmartDetect counters false alarms across a detection speed range of 1 to 6.6 ft/s, with sensitivity selectable in three levels. Pets up to a height of 3.3 ft are disregarded irrespective of weight. The Jeweller and Wings radio links use GFSK modulation, up to 20 mW ERP and a range of up to 5,550 ft across bands from 866.0–866.5 MHz to 921.0–922.0 MHz. An anti-masking system, an accelerometer, device authentication against spoofing and communication loss detection within 36 s guard the unit against tampering. Power comes from two CR123A batteries of type C, with a calculated battery life of up to 3 years.
- Curtain coverage 8° horizontal, 85°/75°/15° vertical
- 2 × PIR sensors and 1 × K-band microwave sensor
- Motion detection distance up to 26–39 ft
- Pet immunity up to 3.3 ft height
- Radio communication range up to 5,550 ft
- 2 × CR123A, up to 3 years battery life
Made by
Ajax Systems is the alarm and security system with the widest range in the catalogue: hubs, motion, opening and glass break detectors, MotionCam with photo verification, sirens, keypads, the EN54 fire detection line, cameras, the Ajax NVR and automation and comfort devices – as the Jeweller wireless system or wired via Fibra, in white and black. The Superior line is certified to EN 50131 Grade 3. AI4Vision is an authorised Ajax partner. All devices are managed through the Ajax app and the monitoring station connection; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Additional information (1)
- Additional information – Warranty
- 24 months
Anti-sabotage protection (1)
- Anti-sabotage protection – Anti-masking system
- detects attempts to block the detector view
Communication (6)
- Communication – Frequency bands
- 866.0–866.5 MHz868.0–868.6 MHz868.7–869.2 MHz905.0–926.5 MHz*915.85–926.5 MHz921.0–922.0 MHz
- Communication – Jeweller communication technology
- Two-way communication., Advanced anti-sabotage., Block encryption featuring a dynamic key., Instant notifications., Remote control and configuration in Ajax apps.
- Communication – Maximum effective radiated power (ERP)
- up to 20 mW
- Communication – Radio communication range
- up to 5,550 ft
- Communication – Radio signal modulation
- GFSK
- Communication – Wings communication technology
- Two-way communication., Advanced anti-sabotage., Block encryption featuring a dynamic key., Data packages reload in case of transmission errors.
Detection (7)
- Detection – False alarm prevention
- dual motion detection technology, SmartDetect
- Detection – Motion detection angles
- horizontal: 8°vertical: 85°/75°/15°
- Detection – Motion detection distance
- up to 26–39 ft
- Detection – Motion detection speed
- 1 to 6.6 ft/s
- Detection – Pet immunity
- height: up to 3.3 ftweight: irrelevant
- Detection – Sensitive elements
- 2 × PIR sensor, 1 × K-band microwave sensor
- Detection – Sensitivity
- 3 levels
Enclosure (10)
- Enclosure – Dimensions with hood
- 6.1″ × 3.03″ × 3.35″

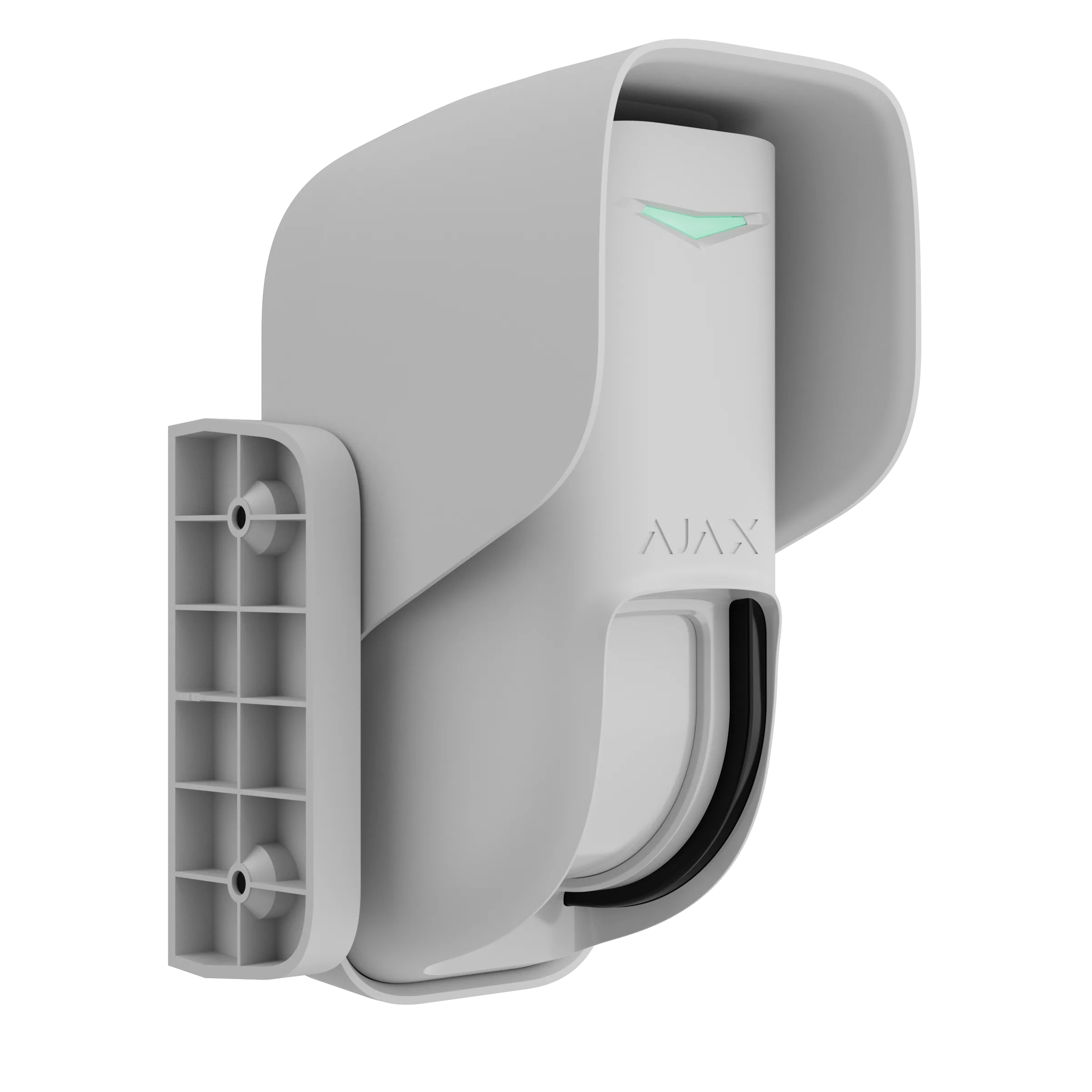

- Enclosure – Dimensions with hood and angle mount
- 6.1″ × 3.31″ × 3.86″
- Enclosure – Dimensions without hood
- 5.55″ × 2.36″ × 2.83″
- Enclosure – Dimensions without hood and with angle mount
- 5.55″ × 2.99″ × 3.31″
- Enclosure – Operating humidity
- up to 95%
- Enclosure – Operating temperature range
- from −13 °F to 140 °F
- Enclosure – Protection class
- IP55
- Enclosure – Weight of angle mount
- 1.2 oz
- Enclosure – Weight with hood
- 10.55 oz
- Enclosure – Weight without hood
- 7.87 oz
Power supply (13)
- Power supply – Battery
- 2 × CR123A
- Power supply – Calculated battery life
- up to 3 years
- Power supply – Detector’s nominal operating voltage
- 6 V⎓
- Power supply – Detector’s operating voltage range
- 4.1−6.2 V⎓
- Power supply – End-of-life battery capacity
- 170 mAh
- Power supply – End-of-life battery voltage
- 4.1 V⎓
- Power supply – Full battery capacity
- 1,600 mAh
- Power supply – Low battery recovery voltage
- 5.14 V⎓
- Power supply – Low battery voltage
- 4.48 V⎓
- Power supply – Manufacturer
- Huiderui or Panasonic
- Power supply – Maximum detector’s current consumption at nominal voltage
- 600 mA
- Power supply – Quiescent detector’s current consumption at nominal voltage
- 37 μA
- Power supply – Type
- Type C
Sabotage protection (3)
- Sabotage protection – Accelerometer
- alarm when the detector is moved
- Sabotage protection – Communication loss detection
- after 36 s
- Sabotage protection – Protection against spoofing
- device authentication
