Ajax CombiProtect white
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 2-3 days
Matching accessories

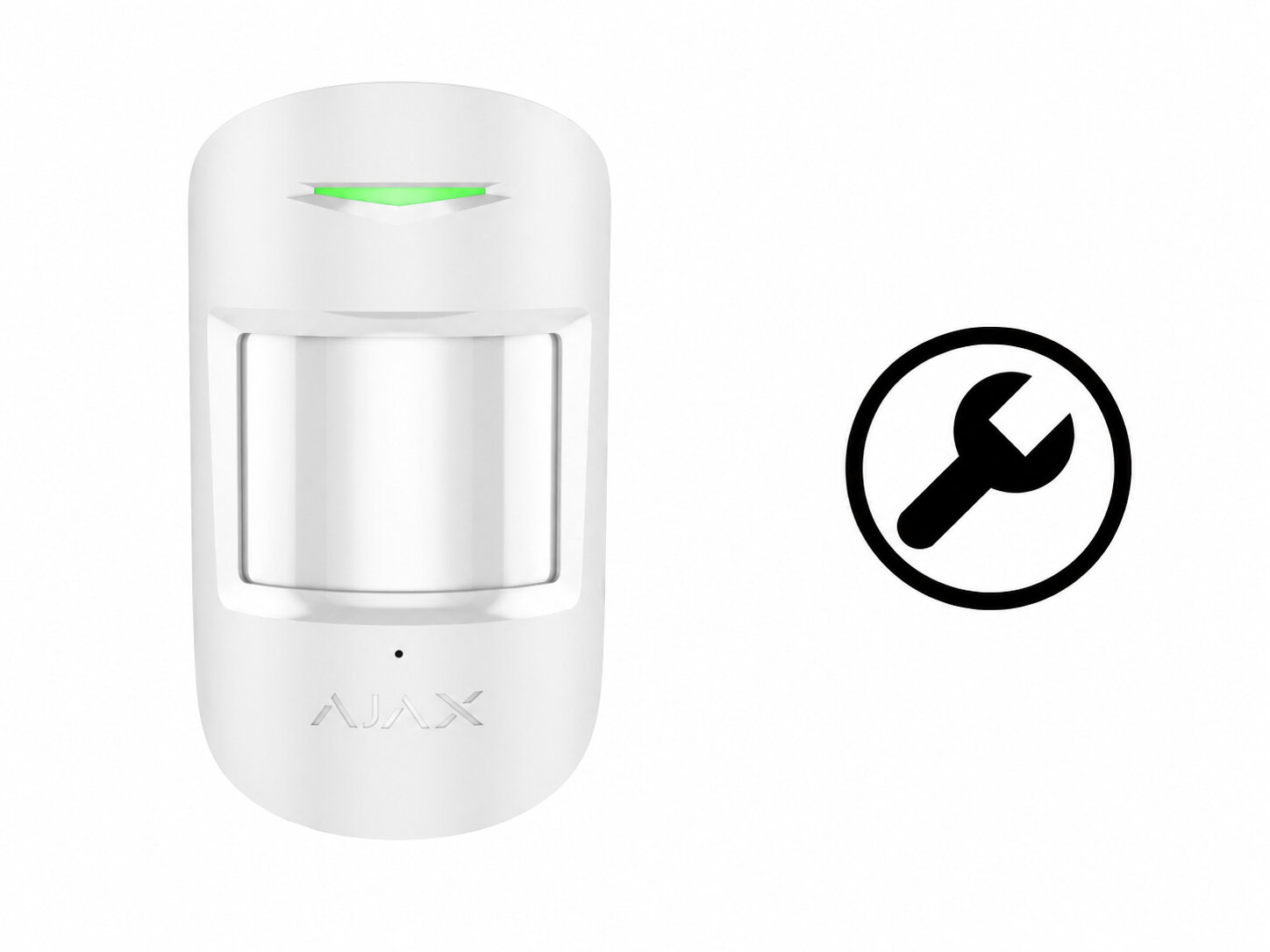

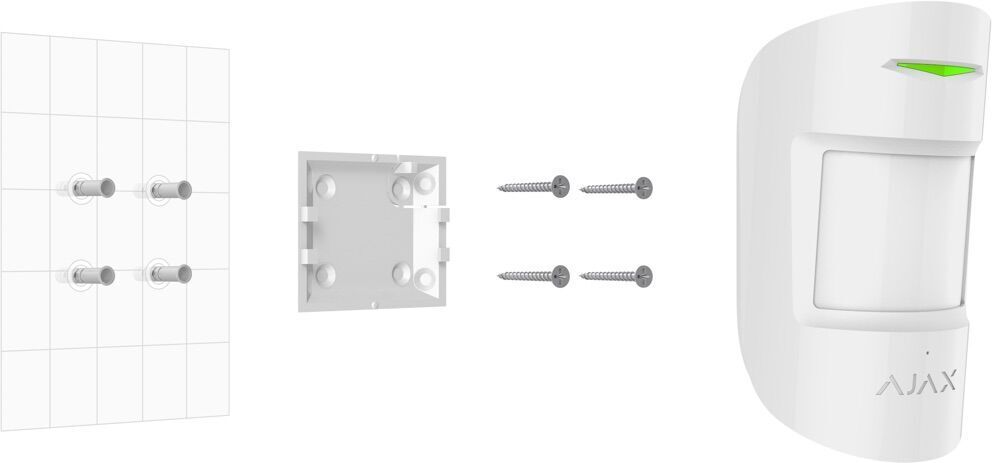

RepairKit for Ajax CombiProtect motion and glass break detector, white version. Enables professional maintenance and replacement installation without replacing the complete detector.- SmartBracket mounting plate with integrated tamper protection- Complete fixing kit with screws and wall plugs- Quick start guide for installation and configuration- Compatible with CombiProtect Jeweller (motion and glass break detector)- Colour version: white- Weight: 140 g- 24 months warranty
Not in stock · delivery 2-3 days
Product data
- Manufacturer
- Ajax
- Article number
- 38097.06.WH1
- EAN / GTIN
- 4823114061301
Description
CombiProtect combines a motion detector and a glass break detector in one wireless enclosure and reports intrusion through doors and windows. The PIR sensor covers up to 12 m across a horizontal angle of 88.5° at movement speeds from 0.3 to 2.0 m/s, and pet immunity applies up to 20 kg in weight and 50 cm in height. Glass break is picked up by an electret microphone from 0.3 to 9 m across 180° horizontally, from a minimum glass size of 279 × 279 mm. Both channels offer three sensitivity levels and false alarm prevention: SmartDetect for motion, DualTone for glass break. The Jeweller radio link uses GFSK modulation, up to 20 mW ERP and reaches up to 1,200 m, with communication loss detected after 36 s. One CR123A cell powers the detector.
- Motion and glass break detection in one device
- PIR detection up to 12 m, 88.5° horizontal
- Glass break detection 0.3 to 9 m, 180°
- Pet immunity up to 20 kg and 50 cm
- 1 × CR123A
Made by
Ajax Systems is the alarm and security system with the widest range in the catalogue: hubs, motion, opening and glass break detectors, MotionCam with photo verification, sirens, keypads, the EN54 fire detection line, cameras, the Ajax NVR and automation and comfort devices – as the Jeweller wireless system or wired via Fibra, in white and black. The Superior line is certified to EN 50131 Grade 3. AI4Vision is an authorised Ajax partner. All devices are managed through the Ajax app and the monitoring station connection; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Additional information (1)
- Additional information – Warranty
- 24 months
Communication (5)
- Communication – Frequency bands
- 866,0–866,5 MHz, 868,0–868,6 MHz, 868,7–869,2 MHz, 905.0–926.5 MHz, 915,85–926,5 MHz, 921,0–922,0 MHz
- Communication – Jeweller communication technology
- Zwei-Wege-Kommunikation., Erweiterter Schutz vor Sabotage., Blockverschlüsselung mit einem dynamischen Schlüssel., Sofortige Benachrichtigungen., Fernsteuerung und -konfiguration über Ajax Apps.
- Communication – Maximum effective radiated power (ERP)
- up to 20 mW
- Communication – Radio communication range
- bis zu 1200 m
- Communication – Radio signal modulation
- GFSK
Detection (7)
- Detection – False alarm prevention
- SmartDetect
- Detection – Motion detection angles
- horizontal — 88.5°
- Detection – Motion detection distance
- bis zu 12 m
- Detection – Motion detection speed
- from 1 to 6.6 ft/s
- Detection – Pet immunity
- Gewicht: bis zu 20 kg, Größe: bis zu 50 cm
- Detection – Sensing element
- PIR-Sensor
- Detection – Sensitivity
- 3 levels
Enclosure (5)
- Enclosure – Dimensions
- 4.33" × 2.56" × 1.97"
- Enclosure – Operating humidity
- up to 75%
- Enclosure – Operating temperature range
- from 14 °F to 104 °F
- Enclosure – Protection class
- IP50
- Enclosure – Weight
- 91 g
Glasbrucheigenschaften (1)
- Glasbrucheigenschaften – Glasarten und deren Dicke:
- Standardverglasung — 3 mm und 10 mm, gehärtetes Glas — 3 mm und 10 mm, Verbundglas — 3 mm und 13 mm, Drahtglas — 6 mm, Isolierglas — 3 mm und 6 mm, geglühtes Glas — 1,6 mm
Glasbrucherkennung (1)
- Glasbrucherkennung – Reichweite der Glasbrucherkennung
- von 0,3 bis 9 m
Glass break characteristics (1)
- Glass break characteristics – Minimum glass size
- 279 × 279 mm
Glass break detection (4)
- Glasbrucherkennung – Winkel der Glasbrucherkennung
- horizontal: 180°
- Glass break detection – False alarm prevention
- DualTone
- Glass break detection – Sensing element
- Elektretmikrofon
- Glass break detection – Sensitivity
- 3 levels
Power supply (13)
- Power supply – Battery
- 1 × CR123A
- Power supply – Calculated battery life
- bis zu 5 Jahren
- Power supply – End-of-life battery capacity
- 300 mAh
- Power supply – End-of-life battery voltage
- 2.1 V⎓
- Power supply – Full battery capacity
- 1,600 mAh
- Power supply – Low battery recovery voltage
- 2.7 V⎓
- Power supply – Low battery voltage
- 2.5 V⎓
- Power supply – Manufacturer
- Huiderui or Duracell
- Power supply – Maximum current consumption at nominal voltage
- 60 mA
- Power supply – Nominal operating voltage
- 3 V⎓
- Power supply – Operating voltage range
- 2,1−3,3 V⎓
- Power supply – Quiescent current consumption at nominal voltage
- 38 μA
- Power supply – Type
- type C
Sabotage protection (2)
- Sabotage protection – Communication loss detection
- after 36 s
- Sabotage protection – Protection against spoofing
- device authentication
