Ajax Button white
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 2-3 days
Matching accessories

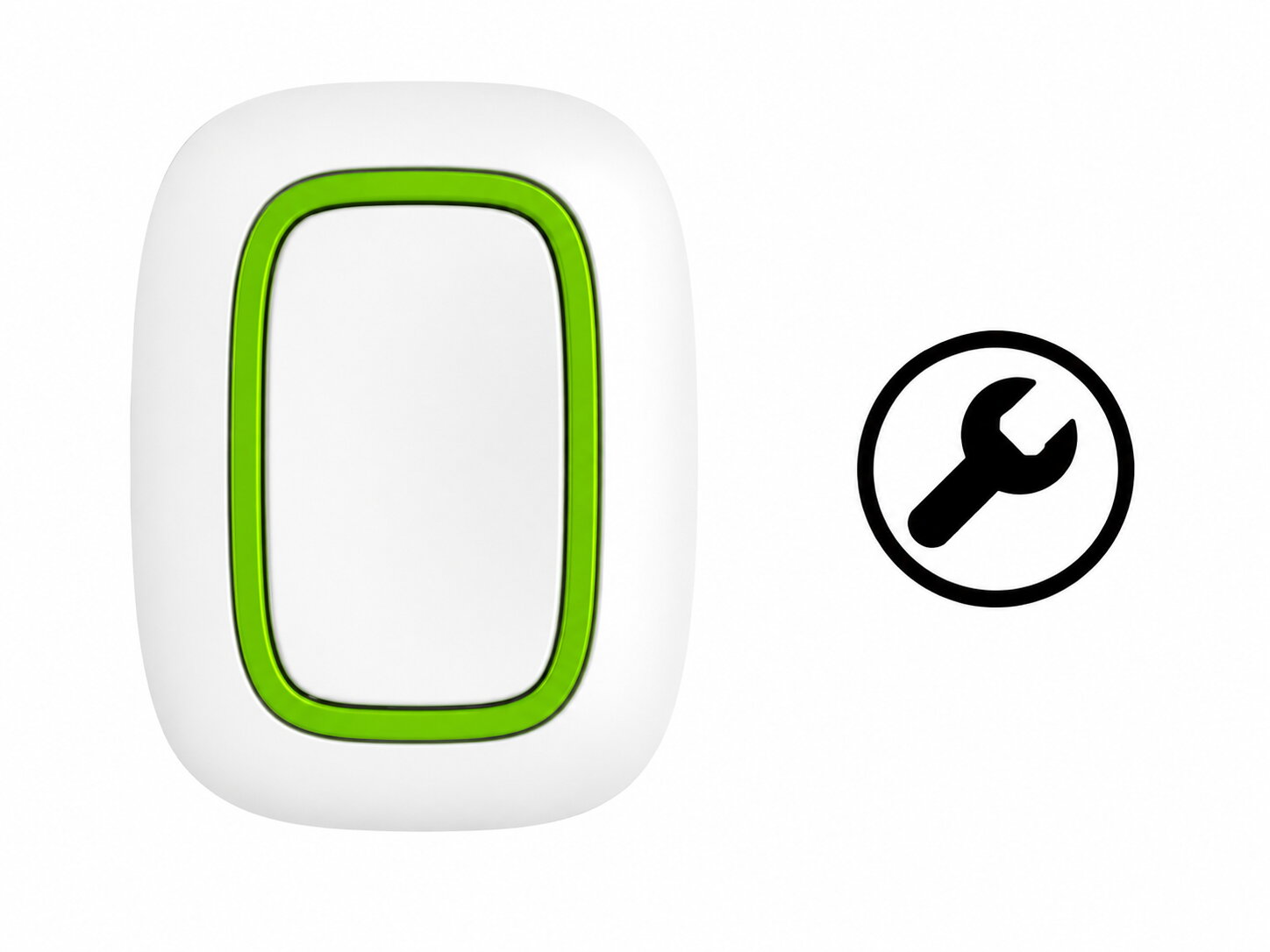

Replacement housing for repairing Ajax Button Jeweller emergency buttons in white. Mechanical components without electronics for housing replacement in the event of damage.- Replacement housing for Button Jeweller white- Without electronics or radio technology- Original Ajax components- Visually identical to the original- For repair by specialist installers- Ensures professional repair
Not in stock · delivery 2-3 days
Product data
- Manufacturer
- Ajax
- Article number
- 38095.26.WH1
- EAN / GTIN
- 4823114011351
Description
Button is a wireless one-button device that sends an alarm to an alarm monitoring company. The event type it transmits is configurable: intrusion, fire, auxiliary alarm, panic button, gas alarm, malfunction, leakage or a custom type. A long or double press is required, which prevents accidental activation. Jeweller radio covers the 866.0–866.5, 868.0–868.6, 868.7–869.2, 905.0–926.5, 915.85–926.5 and 921.0–922.0 MHz bands with GFSK modulation, up to 20 mW ERP and a range of up to 1,300 m. Device authentication protects against spoofing and communication loss is reported after 36 s. The 235 mAh CR2032 battery is calculated for up to 5 years at 3 V nominal, within an operating range of 1.8−3.3 V.
- One button, configurable event types
- Long or double press activation
- Radio range up to 1,300 m
- 1 × CR2032, up to 5 years
- Device authentication
Made by
Ajax Systems is the alarm and security system with the widest range in the catalogue: hubs, motion, opening and glass break detectors, MotionCam with photo verification, sirens, keypads, the EN54 fire detection line, cameras, the Ajax NVR and automation and comfort devices – as the Jeweller wireless system or wired via Fibra, in white and black. The Superior line is certified to EN 50131 Grade 3. AI4Vision is an authorised Ajax partner. All devices are managed through the Ajax app and the monitoring station connection; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Additional information (1)
- Additional information – Warranty
- 24 months
Communication (5)
- Communication – Frequency bands
- 866.0–866.5 MHz868.0–868.6 MHz868.7–869.2 MHz905.0–926.5 MHz*915.85–926.5 MHz921.0–922.0 MHz
- Communication – Jeweller communication technology
- Two-way communication., Advanced anti-sabotage., Block encryption featuring a dynamic key., Instant notifications., Remote control and configuration in Ajax apps.
- Communication – Maximum effective radiated power (ERP)
- up to 20 mW
- Communication – Radio communication range
- up to 1,000 ft
- Communication – Radio signal modulation
- GFSK
Enclosure (5)
- Enclosure – Dimensions
- 1.85″ × 1.38″ × 0.51″
- Enclosure – Operating humidity
- up to 75%
- Enclosure – Operating temperature range
- from 14 ℉ to 104 ℉
- Enclosure – Protection class
- IP55
- Enclosure – Weight
- 0.56 oz
Key features (3)
- Key features – Adjustable event types
- Intrusion, Fire, Auxiliary alarm, Panic button, Gas alarm, Malfunction, Leakage, Custom
- Key features – Number of buttons
- 1
- Key features – Protection against accidental pressing
- long or double press
Power supply (13)
- Power supply – Battery
- 1 × CR2032
- Power supply – Button’s nominal operating voltage
- 3 V⎓
- Power supply – Button’s operating voltage range
- 1.8−3.3 V⎓
- Power supply – Calculated battery life
- up to 5 years
- Power supply – End-of-life battery capacity
- 40 mAh
- Power supply – End-of-life battery voltage
- 1.8 V⎓
- Power supply – Full battery capacity
- 235 mAh
- Power supply – Low battery recovery voltage
- 2.3 V⎓
- Power supply – Low battery voltage
- 2.2 V⎓
- Power supply – Manufacturer
- Panasonic or Renata
- Power supply – Maximum button’s current consumption at nominal voltage
- 27.8 mA
- Power supply – Quiescent button’s current consumption at nominal voltage
- 0.5 μA, 2.02 μA
- Power supply – Type
- Type C
Sabotage protection (2)
- Sabotage protection – Communication loss detection
- after 36 s
- Sabotage protection – Protection against spoofing
- device authentication
