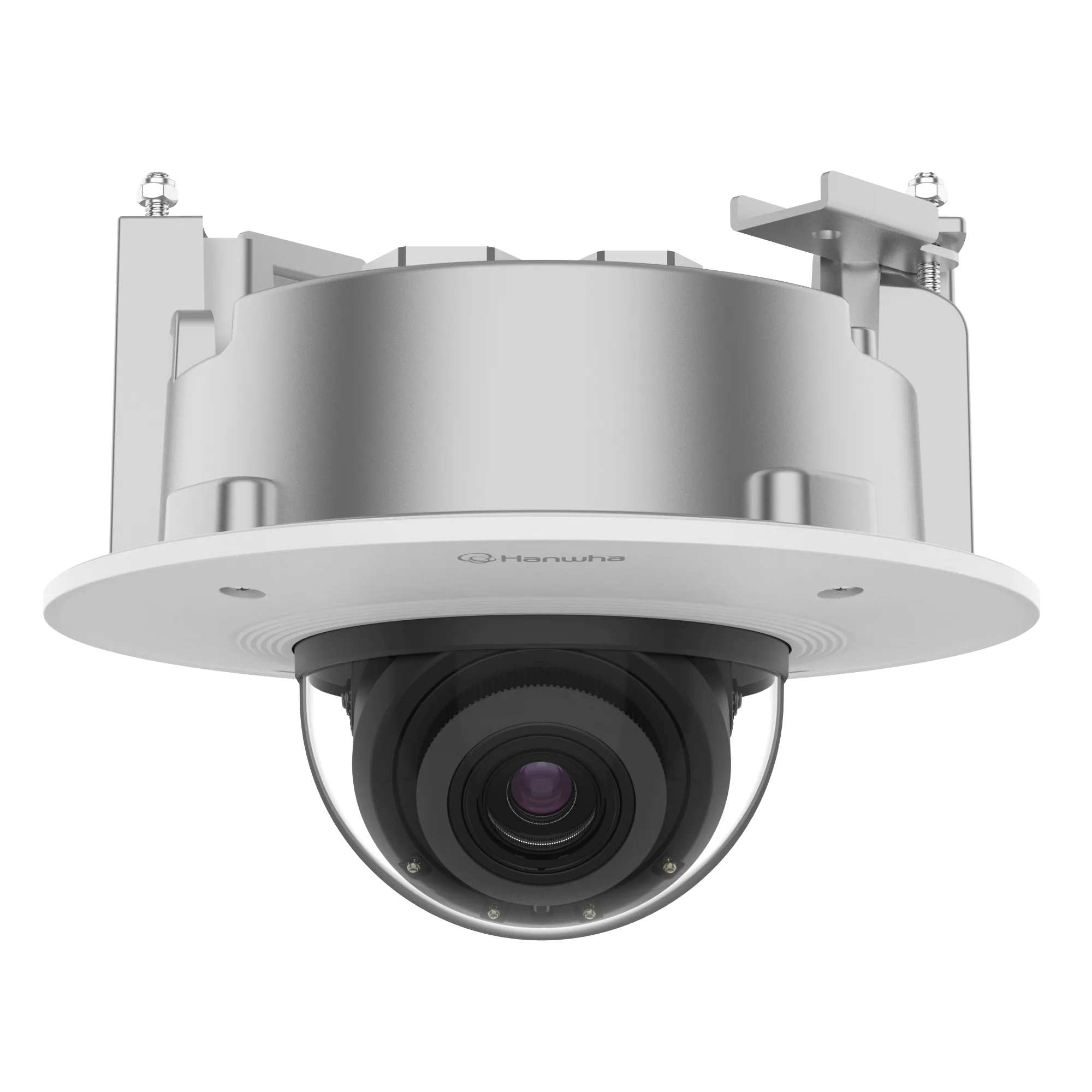

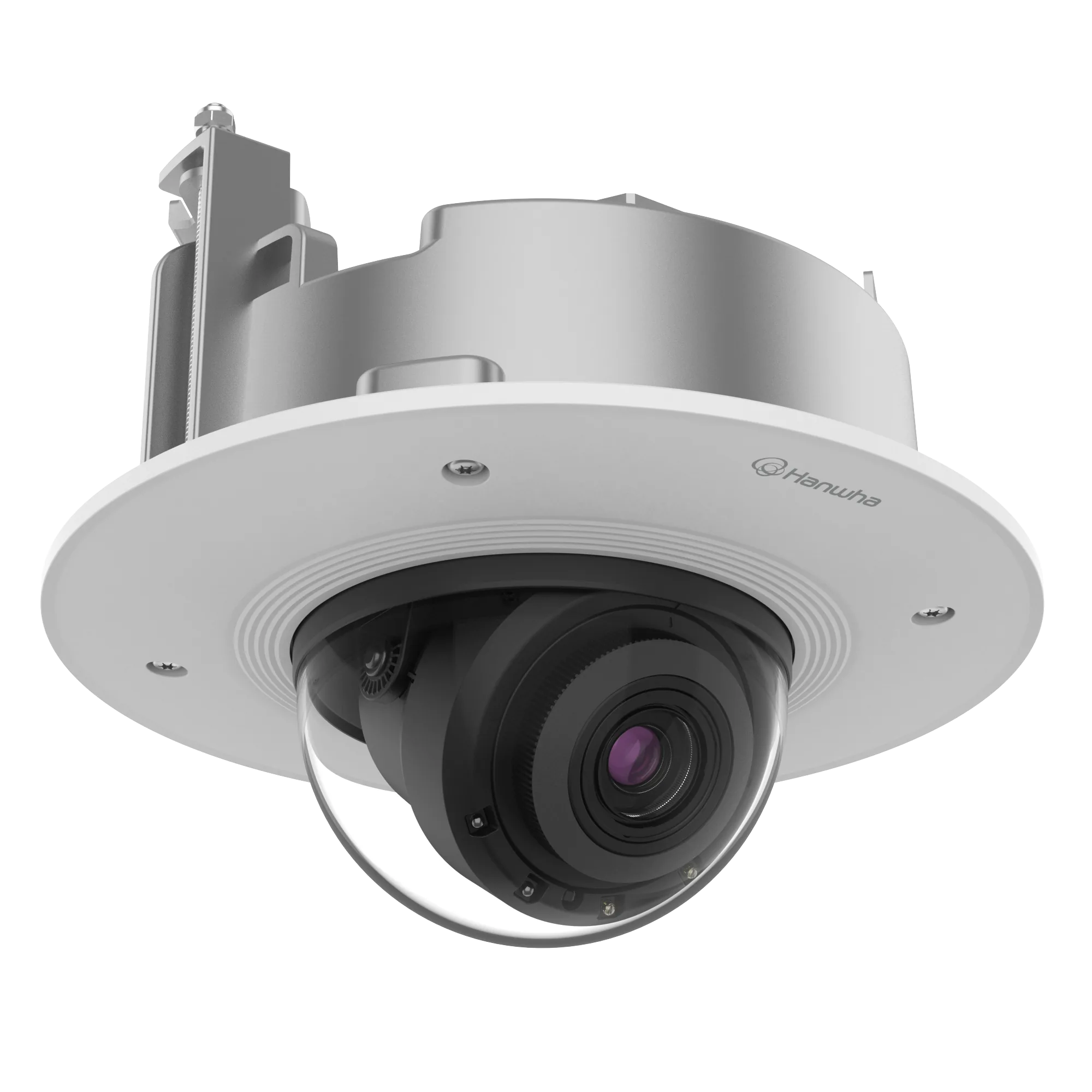

8MP AI IR Flush Mount Indoor Dome
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 3-4 days
Matching accessories
The SPB-FCD85W is a smoked dome cover intended for indoor flush mount cameras. Its base top is white in RAL code RAL9003, while the bubble itself is transparent smoked. Aluminum is used for the base top and polycarbonate (PC) for the bubble. Dimensions are ø205x78mm and the weight is 390g, with certification stated as IP52. XND-8081FZ is listed as a supported product; further compatible models are published on the manufacturer's website or in its Toolbox. Smoked bubbleWhite base top, RAL9003Aluminum and polycarbonateø205x78mm, 390gIP52Supports XND-8081FZ
Not in stock · delivery 3-4 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- PND-A9081RF
- EAN / GTIN
- 8801089171931
- Weight
- 3.3 kg
- Dimensions (W×H×D)
- 437 × 213 × 194 mm
Description
The PND-A9081RF is an AI network dome camera with infrared illumination whose 1/1.8-inch CMOS sensor resolves up to 4K, or 3840x2160. H.265 and H.264 achieve 30fps at 60Hz or 25fps at 50Hz and MJPEG runs at 30fps, with H.265, H.264 and MJPEG codecs supported alongside WiseStream II. Video analytics is based on deep learning with artificial intelligence. The varifocal lens covers 4.5 to 10mm with 2.2x optical zoom, opens to F1.6 at wide angle and F2.65 at telephoto and takes in 101.4° to 45.5° horizontally, 53.6° to 25.5° vertically and 120.7° to 52.3° diagonally. At F1.6 the camera is rated 0.05 lux in colour and 0.005 lux in black and white, working down to 0 lux with the IR LED on; the ICR filter switches day and night automatically and WDR reaches 120dB. Focus is by simple focus through an IR-corrected P iris from 0.5m, with 0° to 360° pan, -45° to 85° tilt and 0° to 355° rotation.
- 4K resolution up to 3840x2160
- 4.5 to 10mm varifocal lens with 2.2x zoom
- 0.05 lux at F1.6 in colour, 0 lux with IR LED
- Day and night by ICR, 120dB WDR
- H.265, H.264 and MJPEG codecs with WiseStream II
- Deep learning based video analytics
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Analytics (8)
- Analytics / Analytics Events – Based on AI Engine
- Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Face mask detection, Social distancing detection, Slip & fall detection
- Analytics / Analytics Events – Normal
- Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear)
- Analytics / Attributes – Face
- Age, Gender, Face mask, Glasses
- Analytics / Attributes – Person
- Upper/Lower clothes color, Gender, Bag
- Analytics / Attributes – Vehicle
- Type(car, bus, truck, motorcycle, bicycle), Color
- Analytics / Business Intelligence – Based on AI Engine
- People counting, Queue management, Heatmap, Vehicle counting, Crowd counting
- Analytics – Classified Object Type
- Person, Face, Vehicle, License plate
- Analytics – Thumbnail
- BestShot
DORI (EN62676-4 standard) (8)
- DORI (EN62676-4 standard) / Detect (25PPM/ 8PPF) – Tele
- 185.4m(608.31ft)
- DORI (EN62676-4 standard) / Detect (25PPM/ 8PPF) – Wide
- 62.2m(204.04ft)
- DORI (EN62676-4 standard) / Identify (250PPM/ 76PPF) – Tele
- 18.5m(60.83ft)
- DORI (EN62676-4 standard) / Identify (250PPM/ 76PPF) – Wide
- 6.2m(20.40ft)
- DORI (EN62676-4 standard) / Observe (63PPM/ 19PPF) – Tele
- 74.2m(243.32ft)
- DORI (EN62676-4 standard) / Observe (63PPM/ 19PPF) – Wide
- 24.9m(81.62ft)
- DORI (EN62676-4 standard) / Recognize (125PPM/ 38PPF) – Tele
- 37.1m(121.66ft)
- DORI (EN62676-4 standard) / Recognize (125PPM/ 38PPF) – Wide
- 12.4m(40.81ft)
Environmental & Electrical (8)
- Environmental & Electrical / Operating Condition – Humidity
- 0~90% RH(non-condensing)
- Environmental & Electrical / Operating Condition – Temperature
- -25°C~+50°C(-13°F~+122°F)
- Environmental & Electrical / Power Consumption – 12VDC
- Max 17.70W, typical 14.00W
- Environmental & Electrical / Power Consumption – PoE
- Max 20.00W, typical 16.00W
- Environmental & Electrical / Storage Condition – Humidity
- 0~90% RH(non-condensing)
- Environmental & Electrical / Storage Condition – Temperature
- -50°C~+60°C(-58°F~+140°F)
- Environmental & Electrical – Input Voltage
- PoE+(IEEE802.3at, Class4), 12VDC
- Environmental & Electrical – Power Redundance Failover
- Support
General (3)
- General / Edge Storage – Micro SD/SDHC/SDXC
- Max. 256GB x 2slot(Total 512GB)
- General / Memory – Flash
- 512MB
- General / Memory – RAM
- 4GB
Lens (10)
- Lens / Angular Field of View – Diagonal
- 120.7°~52.3°
- Lens / Angular Field of View – Horizontal
- 101.4°~45.5°
- Lens / Angular Field of View – Vertical
- 53.6°~25.5°
- Lens / Max Aperture Ratio (F number) – Tele
- 2.65
- Lens / Max Aperture Ratio (F number) – Wide
- 1.6
- Lens / Zoom Ratio – Optical
- 2.2x
- Lens – Focal Length (mm)
- 4.5~10
- Lens – Focus Control
- Simple focus
- Lens – Lens Type
- P iris(IR corrected)
- Lens – Min. Object Distance
- 0.5m(1.64ft)
Mechanical (5)
- Mechanical – Color
- White
- Mechanical – Material
- Aluminum, Hard-coated dome
- Mechanical – Product Dimensions
- Ø205x163mm(8.07x4.92")
- Mechanical – Product Weight
- 1.95kg(4.30lb)
- Mechanical – RAL Code
- RAL9003
Network (12)
- Network / Application Programming Interface – ONVIF
- S, G, T, M
- Network / Application Programming Interface – Others
- SUNAPI(HTTP API), Hanwha Vision Open Platform
- Network / Streaming – Multicast
- Support
- Network / Streaming – Multiple Streaming
- Up to 6 profiles
- Network / Streaming – Unicast
- Up to 6 users
- Network – Audio Compression
- G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz
- Network – Bitrate Control
- H.265/H.264: CBR or VBR, MJPEG: VBR
- Network – Direct Cloud Connection
- Support
- Network – Ethernet
- Metal shielded RJ-45(10/100/1000BASE-T)
- Network – Protocol
- IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), MQTT
- Network – Smart Codec
- Manual, WiseStreamⅢ
- Network – Video Compression
- H.265/H.264: Main/High, MJPEG
Operational (25)
- Operational / Alarm Interface – In/Out
- 2 configurable I/O ports
- Operational / Alarm Interface – Others
- 12VDC output
- Operational / Electronic Shutter – Mode
- Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine)
- Operational / Electronic Shutter – Speed Range
- 1/5~1/12,000sec
- Operational / Light Viewable Length – IR
- WiseIR 30m(98.42ft)
- Operational / Motion Detection – Quantity
- 8ea
- Operational / Motion Detection – Shape
- 8point Polygonal zones
- Operational / Privacy Masking – Color / Option
- Gray, Black, White
- Operational / Privacy Masking – Quantity
- 6ea
- Operational / Privacy Masking – Shape
- Rectangular zones
- Operational – Alarm Events When Alarm Trigger Occurred
- File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication
- Operational – Alarm Triggers
- Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription
- Operational – Audio In
- Selectable(mic in/line in)
- Operational – Audio Out
- Line out
- Operational – Backlight Compensation
- BLC, WDR, SSDR
- Operational – Day & Night
- Auto(ICR)
- Operational – Digital Image Stabilization
- Support(built-in gyro sensor)
- Operational – Digital Noise Reduction
- WiseNRⅡ(Based on AI engine), SSNRⅤ
- Operational – Gain Control
- Low, Middle, High
- Operational – IR Wavelength
- 850nm
- Operational – LDC
- Support
- Operational – Light Type
- IR LED
- Operational – Video Rotation
- Flip, Mirror, Hallway view(90°/270°)
- Operational – White Balance
- ATW, AWC, Manual, Indoor, Outdoor
- Operational – Wide Dynamic Range (dB)
- 120
Pan (3)
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Pan
- 0°~360°
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Rotate
- 0°~355°
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Tilt
- -45°~85°
Security (9)
- Security – Access Control
- IP-based access control
- Security – Audit
- Access / System / Event Log management
- Security – Data Protect
- Encryption credentials, Encrypt compress for live recording file export
- Security – Device ID
- Device certificate(Hanwha Vision Root CA)
- Security – Network authentication
- IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
- Security – OS / Firmware Protect
- Encrypted firmware, Secure boot, Signed firmware
- Security – Secure Communication
- HTTPS, WSS(WebSocket Secure)
- Security – Secure Storage
- SDcard partition encrypt(AES-256)
- Security – User authentication
- Digest authentication, Prevent brute-force attack
Video (8)
- Video / Imaging Device – Size
- 1/1.8"
- Video / Imaging Device – Type
- CMOS
- Video / Max. Framerate – H.265/H.264
- 30fps/25fps(60Hz/50Hz)
- Video / Max. Framerate – MJPEG
- 30fps
- Video / Min. Illumination (Lux) – BW(1/30sec, 30IRE)
- 0.005
- Video / Min. Illumination (Lux) – Color(1/30sec, 30IRE)
- 0.05
- Video – Resolution
- 3840x2160, 3072x1728, 2688x1520, 2592x1944, 2560x1440, 2048x1536, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360
- Video – Video Out
- CVBS: 1.0 Vp-p / 75Ω composite for installation, USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle.
