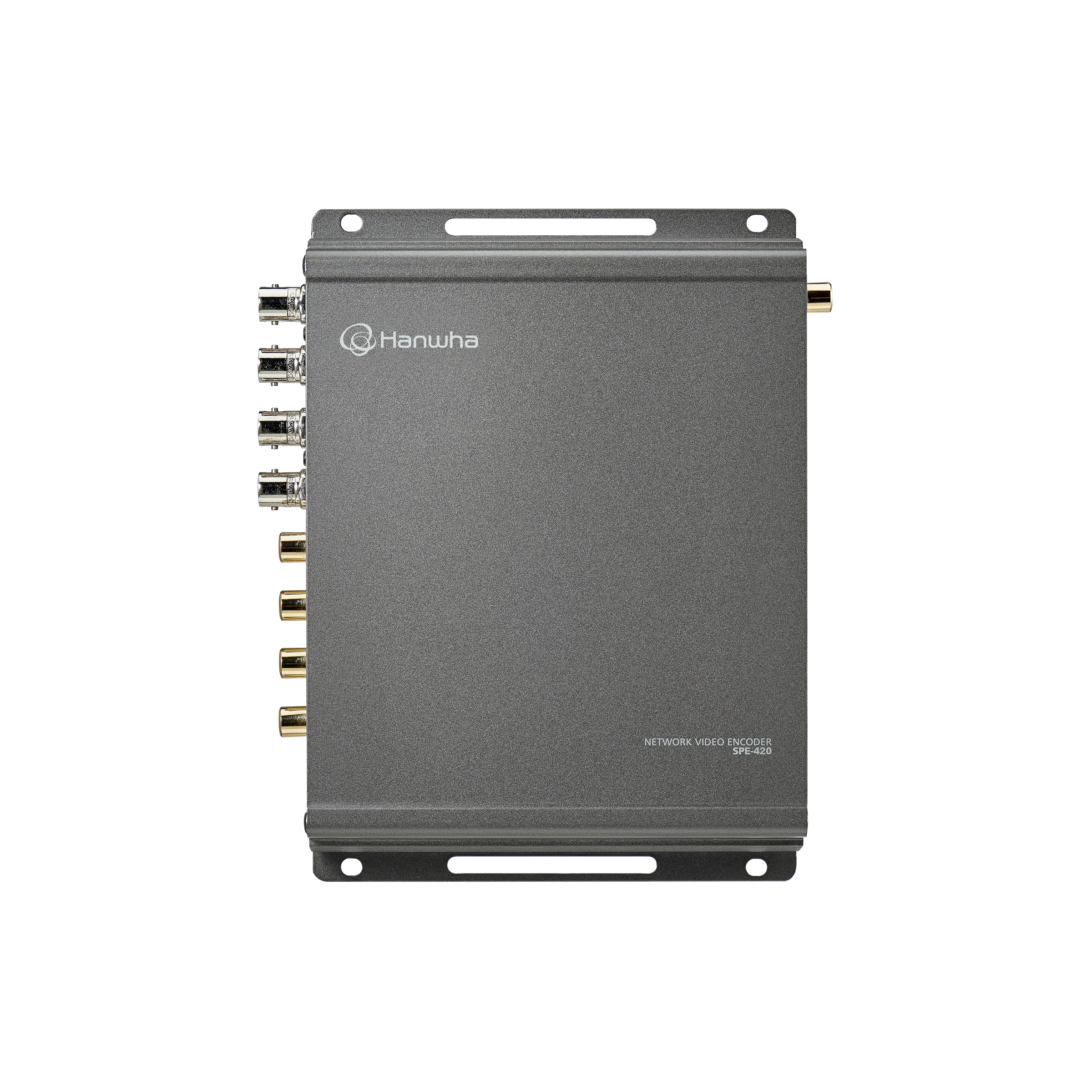

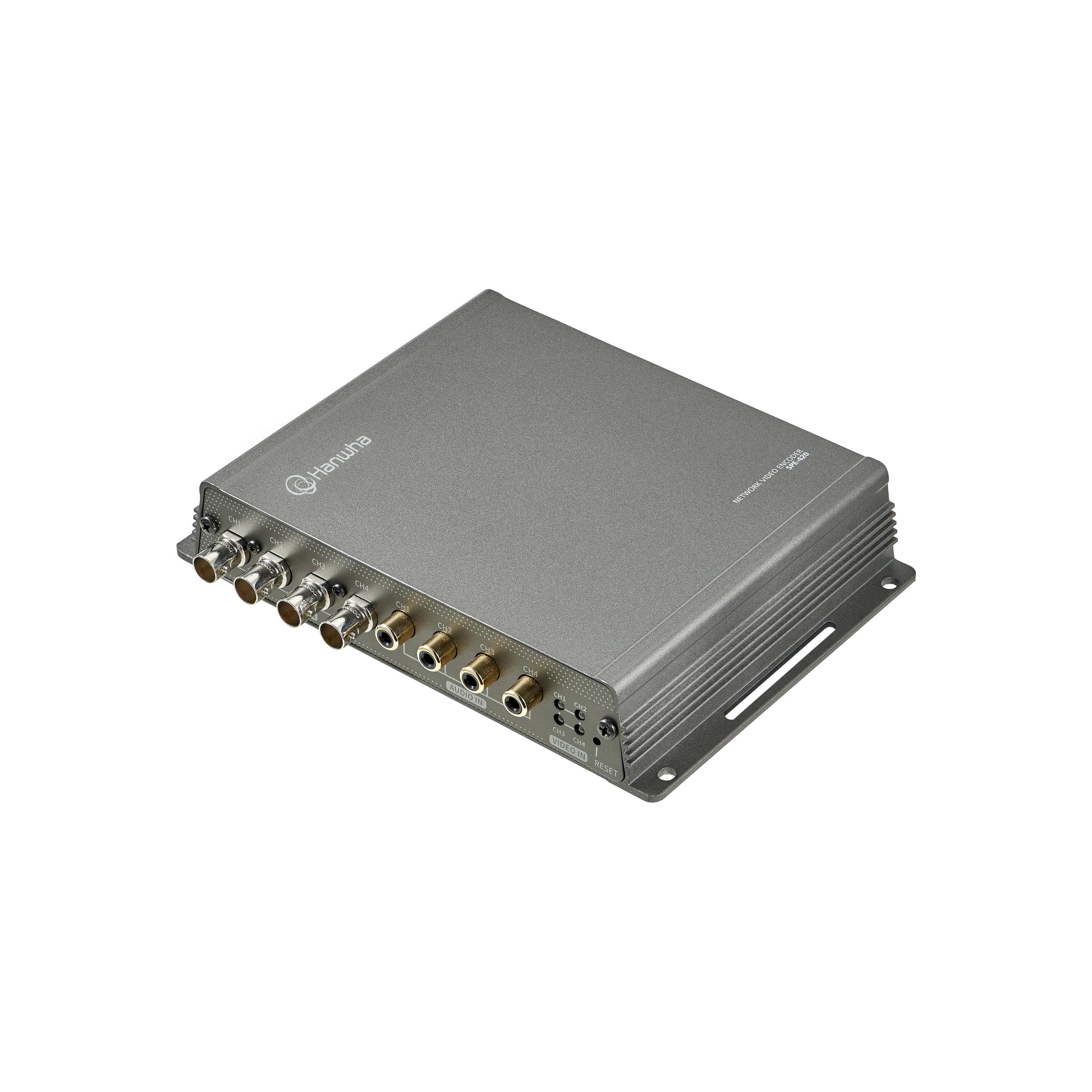

4CH Video Encoder
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 3-4 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- SPE-420
- EAN / GTIN
- 8801089207586
- Weight
- 0.81 kg
- Dimensions (W×H×D)
- 507 × 230 × 194 mm
Description
The SPE-420 is a video encoder with four BNC inputs (1.0 Vp-p / 75Ω composite NTSC/PAL) and automatic detection of CVBS as well as AHD, CVI and TVI at 1, 2, 4 and 5MP. Available codecs are H.265, H.264 (MPEG-4 Part 10/AVC, Main/Baseline/High) and MJPEG with up to 2 profiles per channel; the main stream allows 12fps/CH at 5MP, 15fps/CH at 4MP and 30fps/CH (N) or 25fps/CH (P) for 1080p, 720p, WD1, 4CIF and CIF. Bitrate control for H.265 and H.264 is CBR or VBR, and audio is compressed as G.711 u-law. The feature set covers motion detection, privacy masking with four rectangular zones, de-interlacing, 4 alarm inputs and 2 alarm outputs (1 NO/COM/NC, 1 NO/COM), plus 4 line inputs and 1 line output; alarms are issued by FTP file upload or e-mail. Control is via 1x RS-485 (half duplex) with SAMSUNG-T and PELCO-P/D as well as coaxial control, while the network connection is 1 RJ-45 10/100 Base-T with IPv4 and IPv6. The HDMI output presents four images at 1920x1080.
- 4 BNC inputs, CVBS/AHD/CVI/TVI auto detection
- H.265, H.264 and MJPEG
- Up to 2 profiles per channel
- 4 alarm inputs, 2 alarm outputs
- 1 RJ-45 10/100 Base-T, IPv4 and IPv6
- HDMI output with 4 images at 1920x1080
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Electrical (2)
- Input Voltage / Current
- DC12V, PoE(IEEE 802.3af)
- Power consumption
- MAX : 5W (12V, 0.417A)
Environmental (1)
- Environmental – Operating Temperature / Humidity
- 0°C ~ +50°C / 20% ~ 80% RH
Mechanical (3)
- Color/Metal
- Dark Gray / Metal
- Dimension(WxHxD)
- 178.0 × 34.0 × 127.8(include Connector 148.7)mm
- Weight
- 520g(1.15lb)
Network (16)
- Bitrate Control Method
- H.265, H.264 : CBR or VBR
- IP
- IPv4, IPv6
- Max. Framerate
- - Main Stream 5MP : 12fps/CH, 4MP : 15fps/CH, 1080p/720p/WD1/4CIF/CIF : 30fps/CH(N), 25fps/CH(P) - Sub Stream WD1/4CIF : 30fps/CH, 2CIF/CIF/QVGA/QCIF : 30fps/CH(N), 25fps/CH(P), - MJPEG : 1fps @ 640x368, 352x240, SD Camera : 2fps @ 480x240, 352x240
- Max. User Access
- max. 16 users(4 Users/CH) at Unicast Mode
- Network Resolution
- 2560x1920, 2560x1440, 1920x1080, 1280x720, 928x480(N), 928x240(N), 704x480(N), 704x240(N), 640x368, 352x240(N) 928x576(P), 928*288(P), 704x576(P), 704x288(P), 640x368, 352x288(P)
- Network security
- HTTPS (SSL) Login Authentication, Digest Login Authentication IP Address Filtering, User Access Log, 802.1X Authentication (EAP-TLS, EAP-LEAP)
- Network – Application Programming Interface
- ONVIF profile S, SUNAPI (HTTP API)
- Network – Audio Compression
- G.711 u-law
- Network – Compatabile Software & Recorder
- SmartViewer, SSM, NVR(Hanwha Techwin, P/X/Q/L series)
- Network – Ethernet
- 1 RJ-45 10/100 Base-T
- Network – Protocol
- TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, ONVIF, Bonjour
- Streaming Capability
- Multiple Streaming (Up to 2 Profiles per channel)
- Streaming Method
- Unicast / Multicast
- Video Compression Format
- H.265, H.264 (MPEG-4 Part 10/AVC) : Main / Baseline / High, MJPEG
- Web Viewer
- Supported OS: Windows 10 or later, Windows 7, 8, 10, Mac OS X 10.13 or later, Non-plugin WebViewer Supported Browser: Google Chrome 80 or later, MS Edge 83 or later, Mozilla Firefox 72 or later, Apple Safari 11.0.1 or later
- Webpage Language
- English, French, German, Spanish, Italian, Russian, Turkish, Polish, Dutch, Swedish, Portuguese, Czech, Chinese, Japanese, Korean, Hungarian, Greek
Operational (11)
- Alarm Events
- File Upload Via FTP, E-mail
- Alarm I/O
- 4 Input / 2 Output(1 NO/COM/NC, 1 NO/COM)
- Audio I/O
- 4 Line Input / 1 Line Output
- De-Interlacing
- Support
- Motion Detection
- Off / On
- OSD
- Title, Date(Y/M/D), Time(H/M)
- Operational Coaxial Control
- CVBS(Pelco-C) AHD, TVI, CVI
- Operational – Alarm Triggers
- Motion Detection, Alarm Input, Video Loss, Tampering, Network disconnect
- Privacy Masking
- Off / On (4ea rectangular zones)
- RS-485 Protocol
- SAMSUNG-T, PELCO-P/D
- Remote Control Interface
- 1ea RS-485(Half Duplex)
Video (3)
- Input Channel
- 4CH BNC, 1.0 Vp-p / 75Ω composite NTSC/PAL
- Input Signal & Resolution
- CVBS, AHD/CVI/TVI (1, 2, 4, 5MP) Auto Detection
- Video – Video Out
- 1 HDMI OUT (4 multi Image, 1920x1080)
