2MP IR Indoor Dome
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 3-4 days
Matching accessories
The SBP-300B is an aluminium wall mount base in ivory, listed with RAL code 9003. Its dimensions are 120 x 190.9 x 35 mm and it weighs 700 g. A conduit hole of 19.1 mm (M25) is provided for cable entry. The base is used together with the SBP-300WM and SBP-300WM1 wall mounts. Aluminium wall mount baseIvory, RAL code 9003120 x 190.9 x 35 mmWeight 700 gConduit hole 19.1 mm (M25)For SBP-300WM and SBP-300WM1
Not in stock · delivery 3-4 days
The SBP-300CM is an aluminium ceiling mount for the pendant installation of network and analogue cameras, dome models among them. It is finished in ivory. The tube body measures ø130 x 300.5 mm and weighs 700 g. The mount screw size is stated as PF 1 1/2 inch and the mount can be used with hanging adaptors as well as outdoor PTZ cameras. SBP-122HM, SBP-168HM and SBP-300HM7 are listed as supported. Ceiling mount for pendant installationAluminium, ivory finishø130 x 300.5 mm, 700 gMount screw size PF 1 1/2 inchFor network and analogue camerasFor SBP-122HM, SBP-168HM, SBP-300HM7
Not in stock · delivery 3-4 days
The SBP-300LM parapet mount fixes cameras to a parapet or roof edge and can be combined with hanging mounts and outdoor PTZ cameras. The materials given are aluminium and SECC, with an ivory finish to RAL 9003. The mount measures 824.7 x 841 x 82 mm, weighs 730 g and supports loads up to 20 kg. Its mount thread size is PF 1 1/2 inch, and the data sheet lists SBP-122HM and SBP-300HM7 as supported products. Aluminium and SECCIvory finish, RAL 9003Dimensions 824.7 x 841 x 82 mmWeight 730 gMaximum load 20 kgWorks with SBP-122HM, SBP-300HM7
Not in stock · delivery 3-4 days
The SBP-300NB is an installation box for PTZ cameras that houses connections and cabling in a protected enclosure. The materials stated are aluminium, steel and silicon, and the finish is ivory. The box measures ø185 x 221 x 94.3 mm and weighs 3.4 kg. Its conduit hole is 19.1 mm (3/4 inch, M25) and ingress protection is rated IP66. It is intended for the SBP-300WM and SBP-300WM1 wall mounts. Aluminium, steel and siliconIvory finishDimensions ø185 x 221 x 94.3 mmWeight 3.4 kgConduit hole 19.1 mm (M25)Ingress protection IP66
Not in stock · delivery 3-4 days
The SBP-300WM is an aluminium wall mount for installing cameras on vertical surfaces. Finished in ivory, it measures 276.5 x 112 x 183 mm and has a net weight of 730 g. The mount screw size is M10 and the permissible maximum load is 10 kg. Supported products according to the data sheet are SBP-122HM, SBP-168HM and SBP-300HM7. Aluminium constructionIvory finishDimensions 276.5 x 112 x 183 mmWeight 730 gMount screw size M10Maximum load 10 kg
Not in stock · delivery 3-4 days
The SBP-300WM1 is a wall mount intended for PTZ cameras on a wall construction. The bracket is made of aluminium and finished in ivory. It measures 112 x 183 x 207.5 mm, weighs 625 g and is rated for loads up to 10 kg. The data sheet names SBP-122HM, SBP-168HM and SBP-300HM7 as supported products. Aluminium constructionIvory finishDimensions 112 x 183 x 207.5 mmWeight 625 gMaximum load 10 kgWorks with SBP-122HM, SBP-168HM, SBP-300HM7
Not in stock · delivery 3-4 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- XND-6020R
- EAN / GTIN
- 8801089142641
- Weight
- 0.61 kg
- Dimensions (W×H×D)
- 143 × 143 × 118 mm
Description

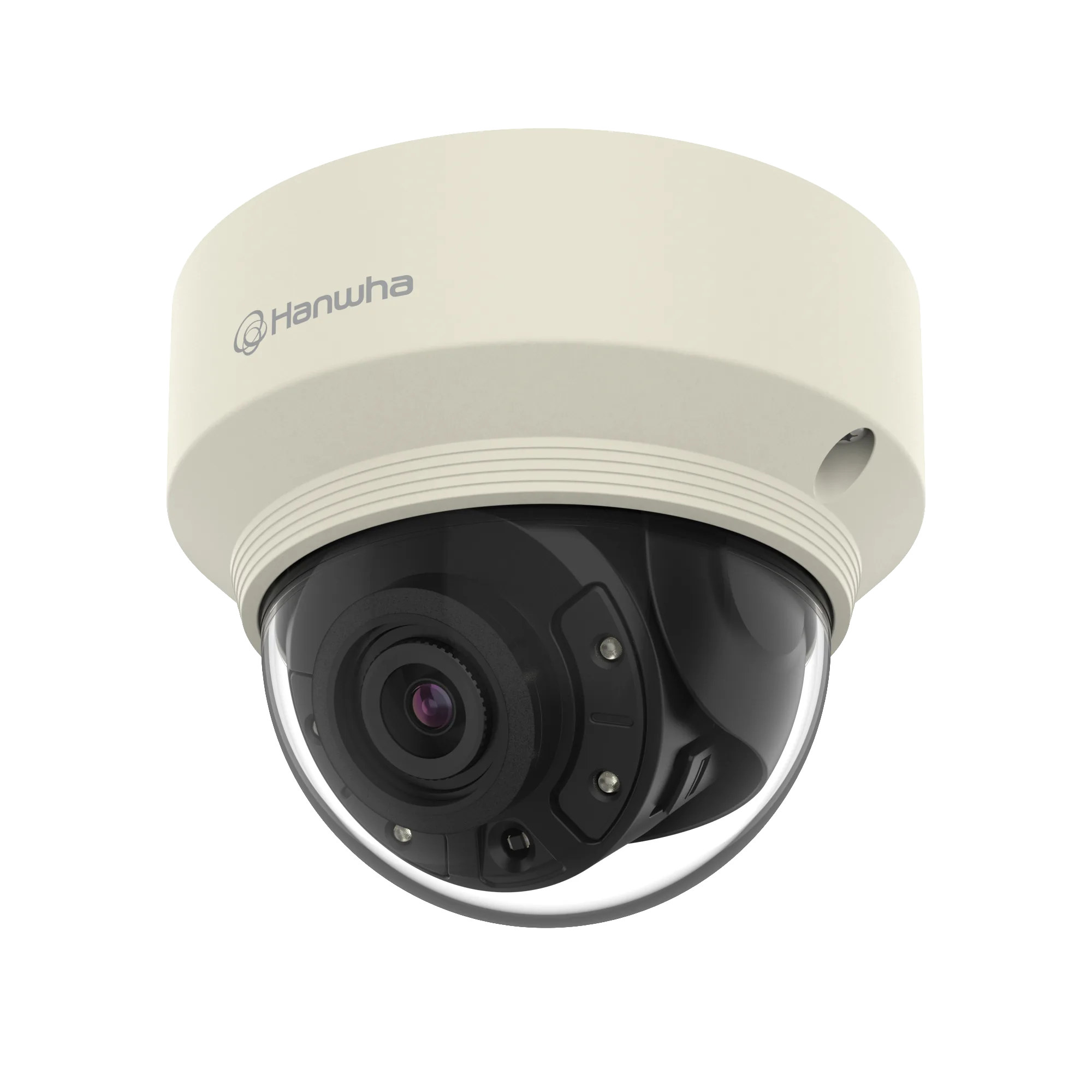

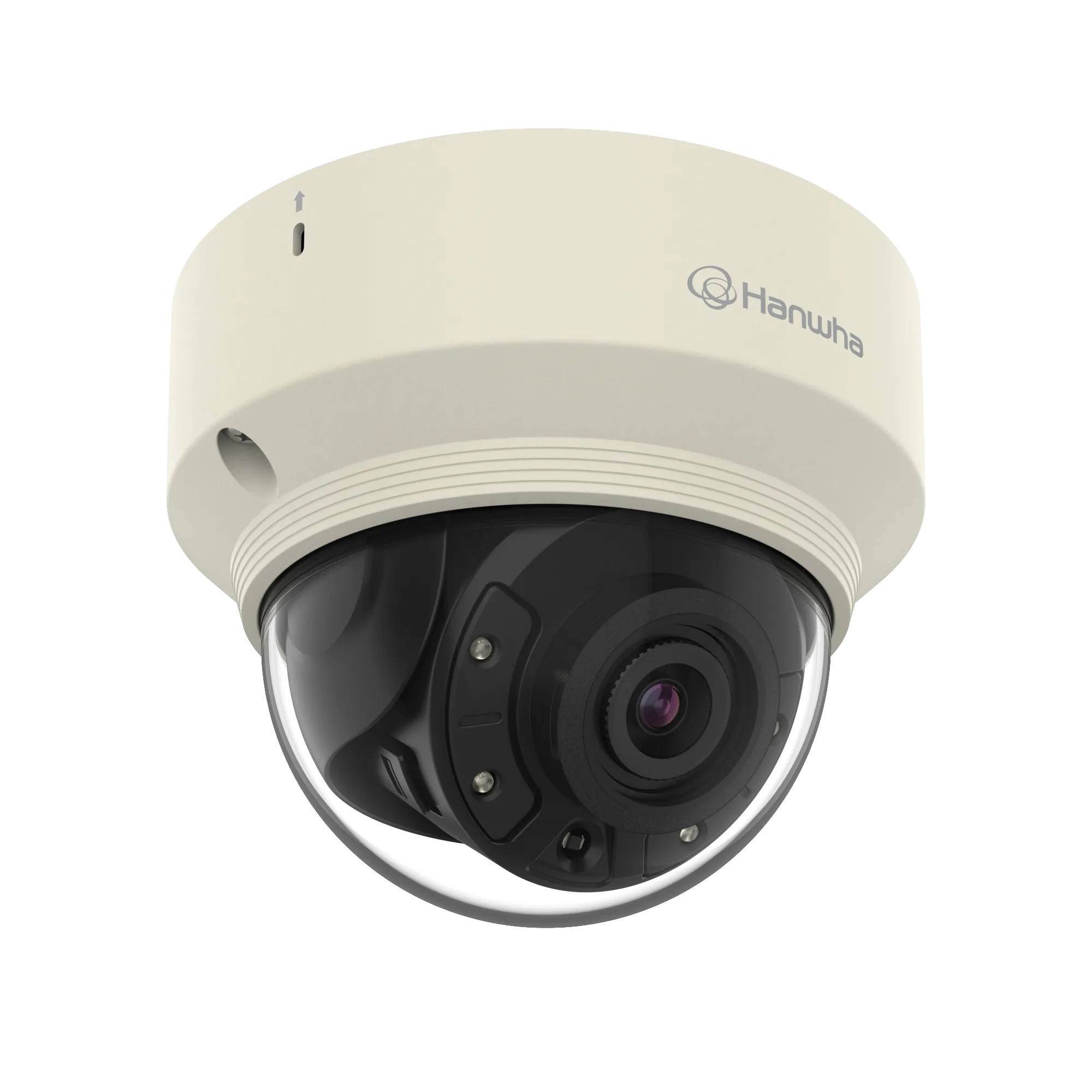

The XND-6020R is a 2MP network dome camera with infrared illumination reaching 30 m and a 1/2.8" CMOS sensor for a maximum of 1920x1080. A built-in 4 mm F1.4 fixed-iris lens covers 88.6° horizontally, 47.5° vertically and 104.8° diagonally from a minimum object distance of 0.4 m. Frame rates reach 60fps/50fps (60Hz/50Hz) in H.265 and H.264 and 30fps in MJPEG, with minimum illumination stated as 0.015 lux in colour and 0.0015 lux in black-and-white. WDR of up to 150 dB, BLC, HLC, SSDR, SSNRⅤ, defog and automatic ICR day and night switching keep the image usable as light changes. Motion detection and handover are included alongside analytics such as loitering, directional, fog and audio detection, digital auto tracking, sound classification, heatmap, people counting, queue management and tampering.
- 1/2.8" CMOS, up to 1920x1080
- Fixed 4 mm F1.4 lens, fixed iris
- 30 m IR range
- WDR up to 150 dB, defog
- 60fps/50fps in H.265 and H.264
- 0.015 lux in colour
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Analytics (2)
- Analytics / Analytics Events – Normal
- Defocus detection, Motion detection, Tampering, Fog detection, Face detection, Audio detection, Sound classification, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Virtual line(Crossing, Direction) , Digital auto tracking
- Analytics / Business Intelligence – Normal
- People counting, Queue management, Heatmap
Certifications & Standards (1)
- Certifications & Standards – Environment
- IEC 62262 IK08
Environmental & Electrical (7)
- Environmental & Electrical / Operating Condition – Humidity
- 0~90% RH(non-condensing)
- Environmental & Electrical / Operating Condition – Temperature
- -10°C~+55°C(+14°F~+131°F)
- Environmental & Electrical / Power Consumption – 12VDC
- Max 8W
- Environmental & Electrical / Power Consumption – PoE
- Max 9W
- Environmental & Electrical / Storage Condition – Humidity
- 0~90% RH(non-condensing)
- Environmental & Electrical / Storage Condition – Temperature
- -50°C~+60°C(-58°F~+140°F)
- Environmental & Electrical – Input Voltage
- PoE(IEEE802.3af, Class3), 12VDC
General (3)
- General / Edge Storage – Micro SD/SDHC/SDXC
- Max. 256GB x 2slot(Total 512GB)
- General / Memory – Flash
- 256MB
- General / Memory – RAM
- 1GB
Lens (7)
- Lens / Angular Field of View – Diagonal
- 104.8°
- Lens / Angular Field of View – Horizontal
- 88.6°
- Lens / Angular Field of View – Vertical
- 47.5°
- Lens / Max Aperture Ratio (F number) – Wide
- 1.4
- Lens – Focal Length (mm)
- 4
- Lens – Lens Type
- Fixed iris
- Lens – Min. Object Distance
- 0.4m(1.31ft)
Mechanical (4)
- Mechanical – Color
- Ivory
- Mechanical – Material
- Aluminum
- Mechanical – Product Dimensions
- Ø110x90mm(4.33x3.54")
- Mechanical – Product Weight
- 380g(0.84lb)
Network (11)
- Network / Application Programming Interface – ONVIF
- S, G, T
- Network / Application Programming Interface – Others
- SUNAPI(HTTP API), Hanwha Vision Open Platform
- Network / Streaming – Multicast
- Support
- Network / Streaming – Multiple Streaming
- Up to 10 profiles
- Network / Streaming – Unicast
- Up to 20 users
- Network – Audio Compression
- G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz
- Network – Bitrate Control
- H.265/H.264: CBR or VBR, MJPEG: VBR
- Network – Ethernet
- RJ-45(10/100BASE-T)
- Network – Protocol
- IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), PIM-SM
- Network – Smart Codec
- Manual, WiseStreamⅡ
- Network – Video Compression
- H.265/H.264: Main/Baseline/High, MJPEG
Operational (25)
- Operational / Alarm Interface – In/Out
- Input 1ea, Output 1ea
- Operational / Electronic Shutter – Mode
- Minimum, Maximum, Anti flicker
- Operational / Electronic Shutter – Speed Range
- 2~1/12,000sec
- Operational / Light Viewable Length – IR
- 30m(98.42ft)
- Operational / Motion Detection – Quantity
- 8ea
- Operational / Motion Detection – Shape
- 8point Polygonal zones
- Operational / Privacy Masking – Color / Option
- Gray, Green, Red, Blue, Black, White, Mosaic
- Operational / Privacy Masking – Quantity
- 32ea
- Operational / Privacy Masking – Shape
- Polygonal zones
- Operational – Alarm Events When Alarm Trigger Occurred
- File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP
- Operational – Alarm Triggers
- Analytics, Network disconnect, Alarm input
- Operational – Audio In
- Selectable(mic in/line in)
- Operational – Audio Out
- Line out
- Operational – Backlight Compensation
- BLC, HLC, WDR, SSDR
- Operational – Day & Night
- Auto(ICR)
- Operational – Defog
- Support
- Operational – Digital Image Stabilization
- Support
- Operational – Digital Noise Reduction
- SSNRⅤ
- Operational – Gain Control
- Low, Middle, High
- Operational – IR Wavelength
- 850nm
- Operational – LDC
- Support
- Operational – Light Type
- IR LED
- Operational – Video Rotation
- Flip, Mirror, Hallway view(90°/270°)
- Operational – White Balance
- ATW, AWC, Manual, Indoor, Outdoor
- Operational – Wide Dynamic Range (dB)
- 150
Pan (3)
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Pan
- 0°~354°
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Rotate
- 0°~355°
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Tilt
- 0°~67°
Security (8)
- Security – Access Control
- IP-based access control
- Security – Audit
- Access / System / Event Log management
- Security – Data Protect
- Encryption credentials, Encrypt compress for live recording file export
- Security – Network authentication
- IEEE 802.1X(EAP-TLS, EAP-LEAP)
- Security – OS / Firmware Protect
- Encrypted firmware, Secure boot, Signed firmware
- Security – Secure Communication
- HTTPS, WSS(WebSocket Secure), SRTP
- Security – Secure Storage
- SDcard partition encrypt(AES-256)
- Security – User authentication
- Digest authentication
Video (8)
- Video / Imaging Device – Size
- 1/2.8"
- Video / Imaging Device – Type
- CMOS
- Video / Max. Framerate – H.265/H.264
- 60fps/50fps(60Hz/50Hz)
- Video / Max. Framerate – MJPEG
- 30fps
- Video / Min. Illumination (Lux) – BW(1/30sec, 30IRE)
- 0.0015
- Video / Min. Illumination (Lux) – Color(1/30sec, 30IRE)
- 0.015
- Video – Resolution
- 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
- Video – Video Out
- CVBS: 1.0 Vp-p / 75Ω composite for installation, USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle.
