2MP IR Bullet
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inIn stock, ships immediately · delivery 1-2 days
Matching accessories

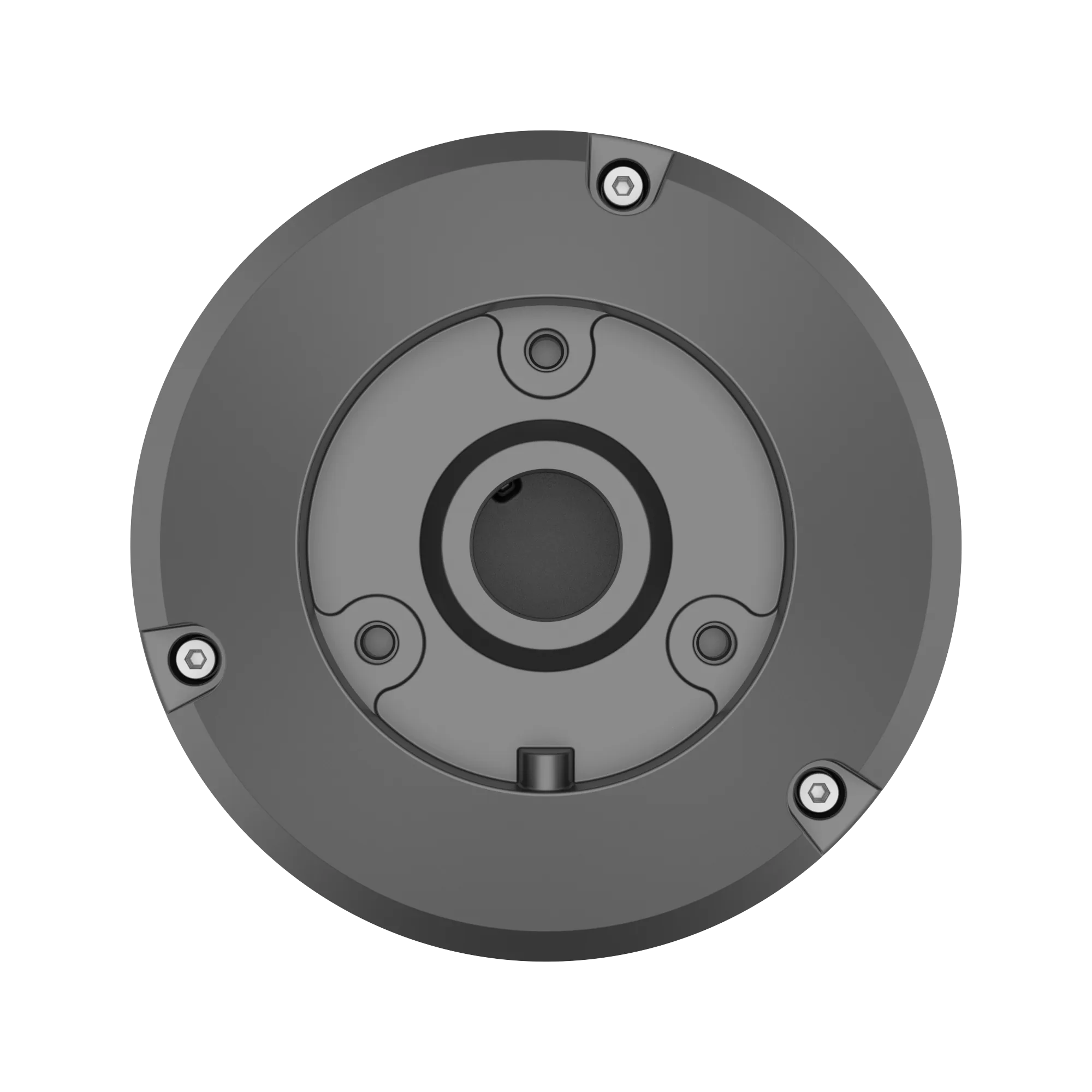

The SBO-147B is a waterproof back box made of aluminium in dark grey. At ø147.5x73.3mm and 980g it is comparatively large. Its conduit hole measures 19.1mm. The QNO-6012R and QNO-6082R are recorded as supported cameras. Additional compatible models are published by the manufacturer on its website or in its Toolbox. Waterproof back boxAluminium, dark greyø147.5x73.3mm, 980g19.1mm conduit holeFor QNO-6012R and QNO-6082R
In stock, ships immediately · delivery 1-2 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- QNO-6082R
- EAN / GTIN
- 8801089165527
- Weight
- 1.15 kg
- Dimensions (W×H×D)
- 120 × 125 × 345 mm
Description

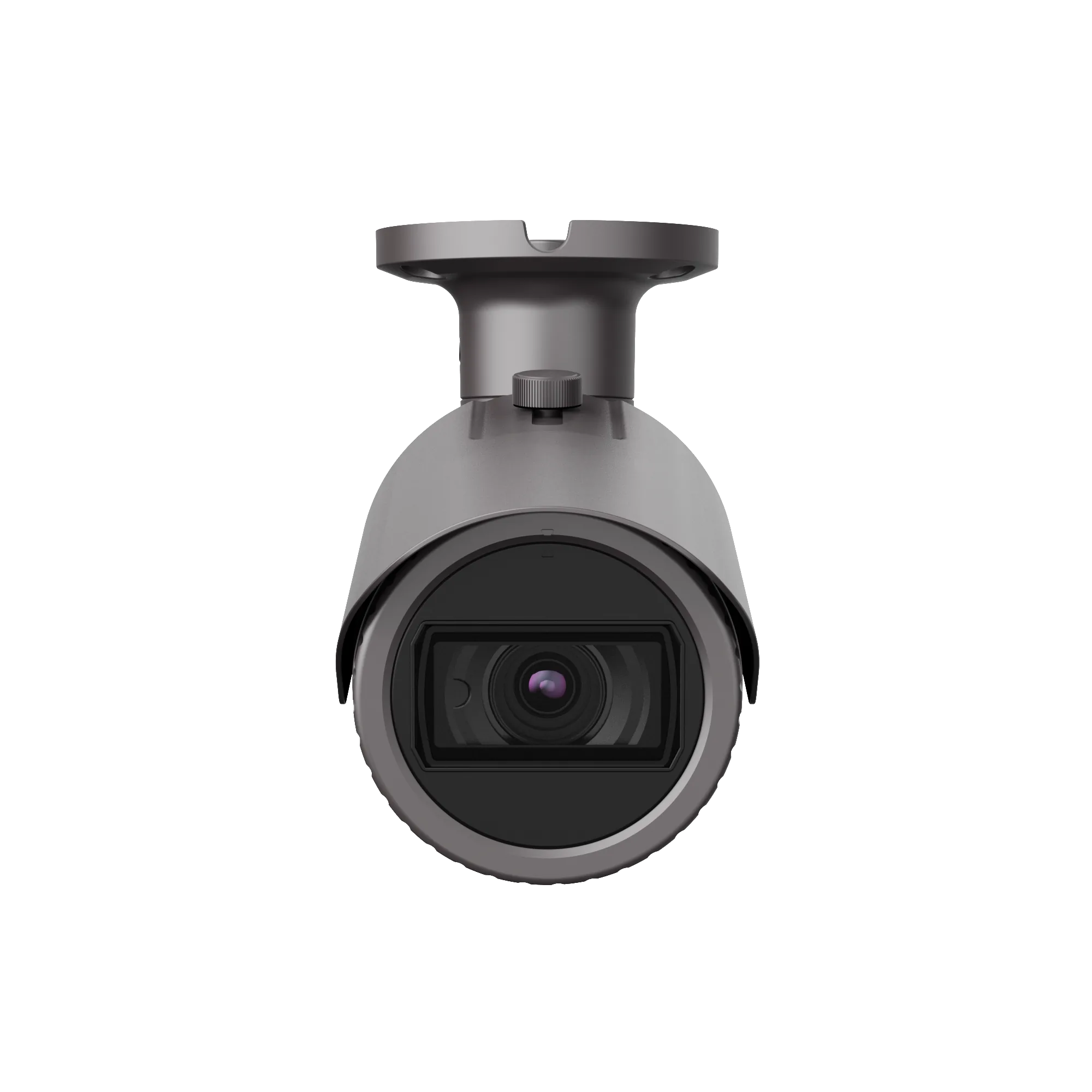

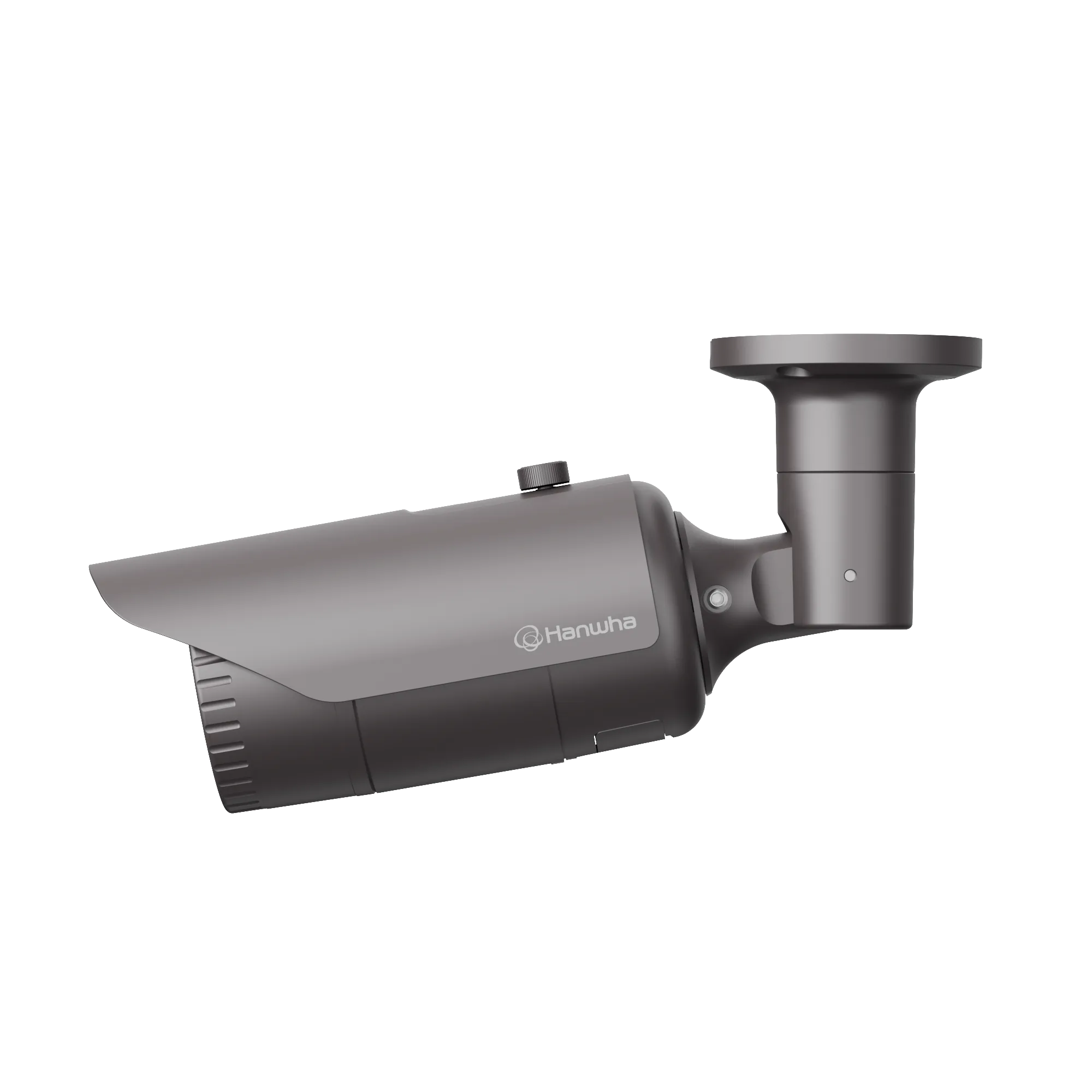

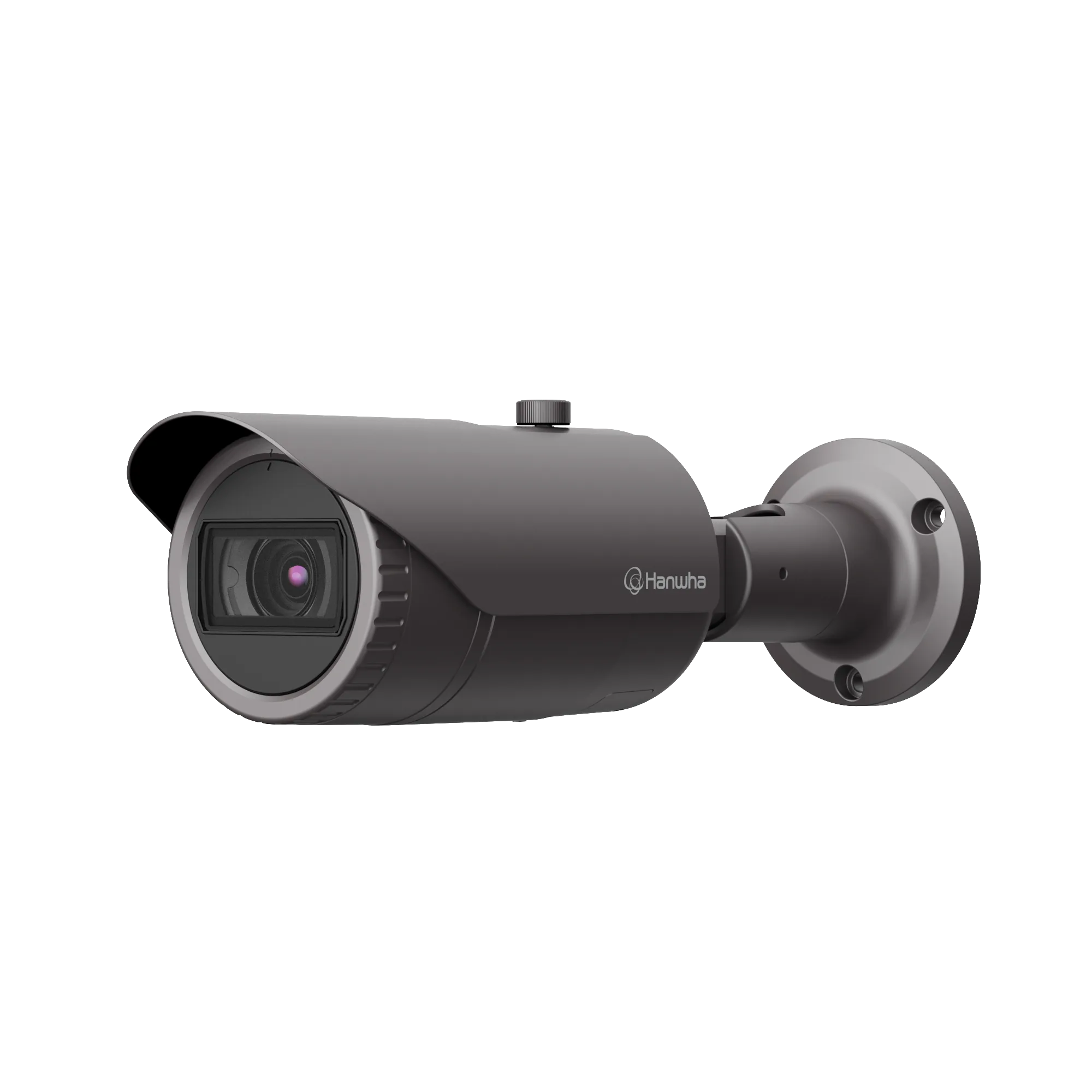

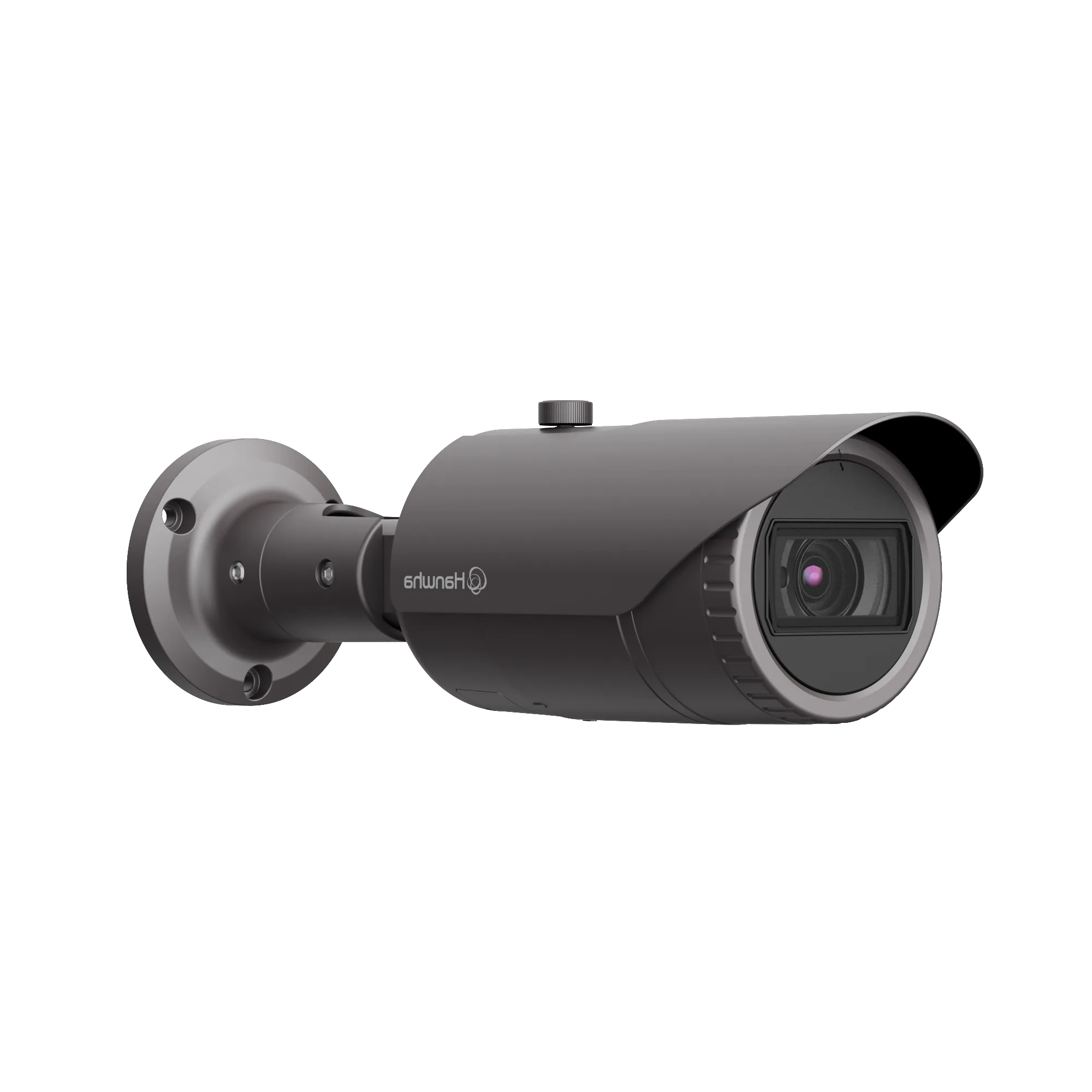

The QNO-6082R pairs an IR bullet housing with a motorised varifocal lens from 3.2 to 10 mm at 3.1x optical zoom. Its 1/2.8-inch CMOS sensor delivers up to 2MP (1920 x 1080), the angle of view runs from 109° to 33° horizontally, 58° to 18° vertically and 132° to 38° diagonally, and the aperture ranges from F1.6 wide to F2.9 tele. H.265 and H.264 reach 30fps/25fps (60Hz/50Hz) with WDR off and 15fps/12fps (60Hz/50Hz) with WDR on, while MJPEG manages 15fps and up to 4fps at 2MP. Colour images are possible from 0.03 lux, black and white from 0.003 lux and 0 lux with the IR LED active, with focusing by simple focus or manually using a DC auto iris. ICR day/night switching, 120 dB WDR, motion, tampering and defocus detection, hallway view at 90° and 270° and LDC are included, and the Micro SD/SDHC/SDXC slot takes up to 128 GB.
- 2MP resolution (1920 x 1080)
- Motorised varifocal lens, 3.2 to 10 mm (3.1x)
- F1.6 wide to F2.9 tele, DC auto iris
- 120 dB WDR, hallway view 90°/270°, LDC
- Micro SD/SDHC/SDXC slot up to 128 GB
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Analytics (1)
- Analytics / Analytics Events – Normal
- Defocus detection, Motion detection, Tampering, Virtual area(Intrusion/Enter/Exit), Virtual line(Crossing, Direction)
Certifications & Standards (3)
- Certifications & Standards – EMC
- FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835
- Certifications & Standards – Environment
- IEC/EN 63000, IEC 60529 IP66, IEC 62262 IK10, NEMA 250 type 4X
- Certifications & Standards – Safety
- UL 60950-1, CAN/CSA C22.2 NO. 60950-1, IEC 62471
DORI (EN62676-4 standard) (8)
- DORI (EN62676-4 standard) / Detect (25PPM/ 8PPF) – Tele
- 128.8m(422.56ft)
- DORI (EN62676-4 standard) / Detect (25PPM/ 8PPF) – Wide
- 27.4m(89.85ft)
- DORI (EN62676-4 standard) / Identify (250PPM/ 76PPF) – Tele
- 12.9m(42.26ft)
- DORI (EN62676-4 standard) / Identify (250PPM/ 76PPF) – Wide
- 2.7m(8.99ft)
- DORI (EN62676-4 standard) / Observe (63PPM/ 19PPF) – Tele
- 51.5m(169.02ft)
- DORI (EN62676-4 standard) / Observe (63PPM/ 19PPF) – Wide
- 11.0m(35.94ft)
- DORI (EN62676-4 standard) / Recognize (125PPM/ 38PPF) – Tele
- 25.8m(84.51ft)
- DORI (EN62676-4 standard) / Recognize (125PPM/ 38PPF) – Wide
- 5.5m(17.97ft)
Environmental & Electrical (8)
- Environmental & Electrical / Operating Condition – Humidity
- 0~90% RH(non-condensing)
- Environmental & Electrical / Operating Condition – Others
- Start up should be done at above -20°C
- Environmental & Electrical / Operating Condition – Temperature
- -30°C~+55°C(-22°F~+131°F)
- Environmental & Electrical / Power Consumption – 12VDC
- Max 6.5W, typical 4.8W
- Environmental & Electrical / Power Consumption – PoE
- Max 7.4W, typical 5.4W
- Environmental & Electrical / Storage Condition – Humidity
- 0~90% RH(non-condensing)
- Environmental & Electrical / Storage Condition – Temperature
- -30°C~+60°C(-22°F~+140°F)
- Environmental & Electrical – Input Voltage
- PoE(IEEE802.3af, Class3), 12VDC
General (3)
- General / Edge Storage – Micro SD/SDHC/SDXC
- Max. 128GB x 1slot
- General / Memory – Flash
- 256MB
- General / Memory – RAM
- 512MB
Lens (10)
- Lens / Angular Field of View – Diagonal
- 132°~38°
- Lens / Angular Field of View – Horizontal
- 109°~33°
- Lens / Angular Field of View – Vertical
- 58°~18°
- Lens / Max Aperture Ratio (F number) – Tele
- 2.9
- Lens / Max Aperture Ratio (F number) – Wide
- 1.6
- Lens / Zoom Ratio – Optical
- 3.1x
- Lens – Focal Length (mm)
- 3.2~10
- Lens – Focus Control
- Simple focus, Manual
- Lens – Lens Type
- DC auto iris
- Lens – Min. Object Distance
- 0.5m(1.64ft)
Mechanical (4)
- Mechanical – Color
- Dark grey
- Mechanical – Material
- Aluminum
- Mechanical – Product Dimensions
- ø78.0x259.8mm(3.07x10.23")
- Mechanical – Product Weight
- 900g(1.98lb)
Network (12)
- Network / Application Programming Interface – ONVIF
- S, G, T
- Network / Application Programming Interface – Others
- SUNAPI(HTTP API), Hanwha Vision Open Platform
- Network / Streaming – Multicast
- Support
- Network / Streaming – Multiple Streaming
- Up to 3 profiles
- Network / Streaming – Unicast
- Up to 6 users
- Network – Audio Compression
- G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps
- Network – Bitrate Control
- H.265/H.264: CBR or VBR, MJPEG: VBR
- Network – Direct Cloud Connection
- Optional (needs gateway)
- Network – Ethernet
- RJ-45(10/100BASE-T)
- Network – Protocol
- IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP
- Network – Smart Codec
- WiseStreamⅡ
- Network – Video Compression
- H.265/H.264: Main/High, MJPEG
Operational (21)
- Operational / Alarm Interface – In/Out
- Input 1ea, Output 1ea
- Operational / Electronic Shutter – Mode
- Minimum, Maximum, Anti flicker
- Operational / Electronic Shutter – Speed Range
- 1/5~1/12,000sec
- Operational / Light Viewable Length – IR
- 30m(98.42ft)
- Operational / Motion Detection – Quantity
- 4ea
- Operational / Motion Detection – Shape
- 8point Polygonal zones
- Operational / Privacy Masking – Quantity
- 6ea
- Operational / Privacy Masking – Shape
- Rectangular zones
- Operational – Alarm Events When Alarm Trigger Occurred
- File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset
- Operational – Alarm Triggers
- Analytics, Network disconnect, Alarm input
- Operational – Audio In
- Selectable(mic in/line in)
- Operational – Backlight Compensation
- BLC, WDR, SSDR
- Operational – Day & Night
- Auto(ICR)
- Operational – Digital Noise Reduction
- SSNR
- Operational – Gain Control
- Low, Middle, High
- Operational – IR Wavelength
- 850nm
- Operational – LDC
- Support
- Operational – Light Type
- IR LED
- Operational – Video Rotation
- Flip, Mirror, Hallway view(90°/270°)
- Operational – White Balance
- ATW, AWC, Manual, Indoor, Outdoor
- Operational – Wide Dynamic Range (dB)
- 120
Pan (3)
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Pan
- 0°~360°
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Rotate
- 0°~360°
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Tilt
- 0°~100°
Security (9)
- Security – Access Control
- IP-based access control
- Security – Audit
- Access / System / Event Log management
- Security – Data Protect
- Encryption credentials, Encrypt compress for live recording file export
- Security – Device ID
- Device certificate(Hanwha Vision Root CA)
- Security – Network authentication
- IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
- Security – OS / Firmware Protect
- Encrypted firmware
- Security – Secure Communication
- HTTPS, WSS(WebSocket Secure), SRTP
- Security – Secure Storage
- SDcard partition encrypt(AES-256)
- Security – User authentication
- Digest authentication, Prevent brute-force attack
Video (8)
- Video / Imaging Device – Size
- 1/2.8"
- Video / Imaging Device – Type
- CMOS
- Video / Max. Framerate – H.265/H.264
- 30fps/25fps(60Hz/50Hz)(WDR off) / 15fps/12fps(60Hz/50Hz)(WDR on)
- Video / Max. Framerate – MJPEG
- 15fps(@2MP Max. 4fps)
- Video / Min. Illumination (Lux) – BW(1/30sec, 30IRE)
- 0.003
- Video / Min. Illumination (Lux) – Color(1/30sec, 30IRE)
- 0.03
- Video – Resolution
- 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360
- Video – Video Out
- CVBS: 1.0 Vp-p / 75Ω composite for installation
