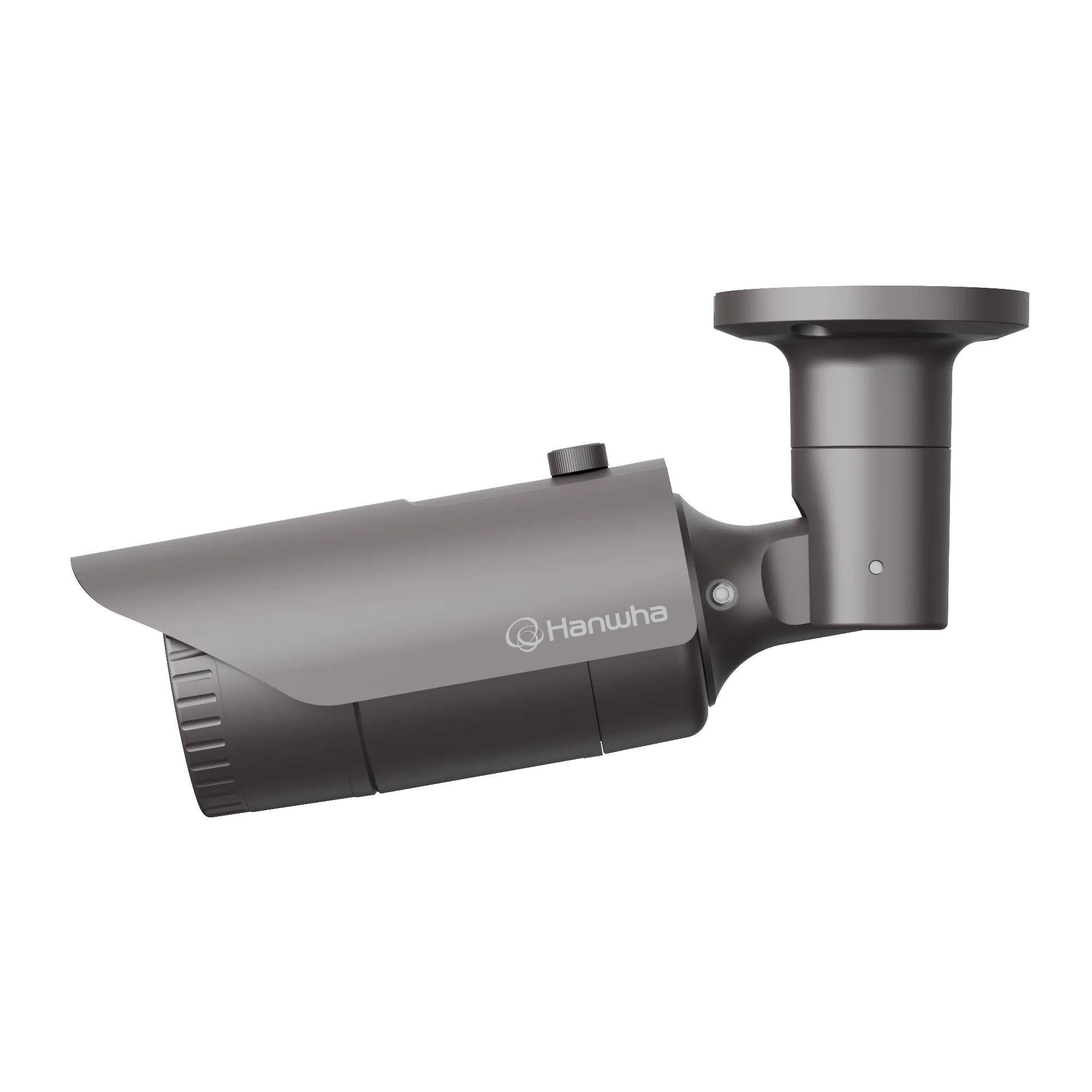

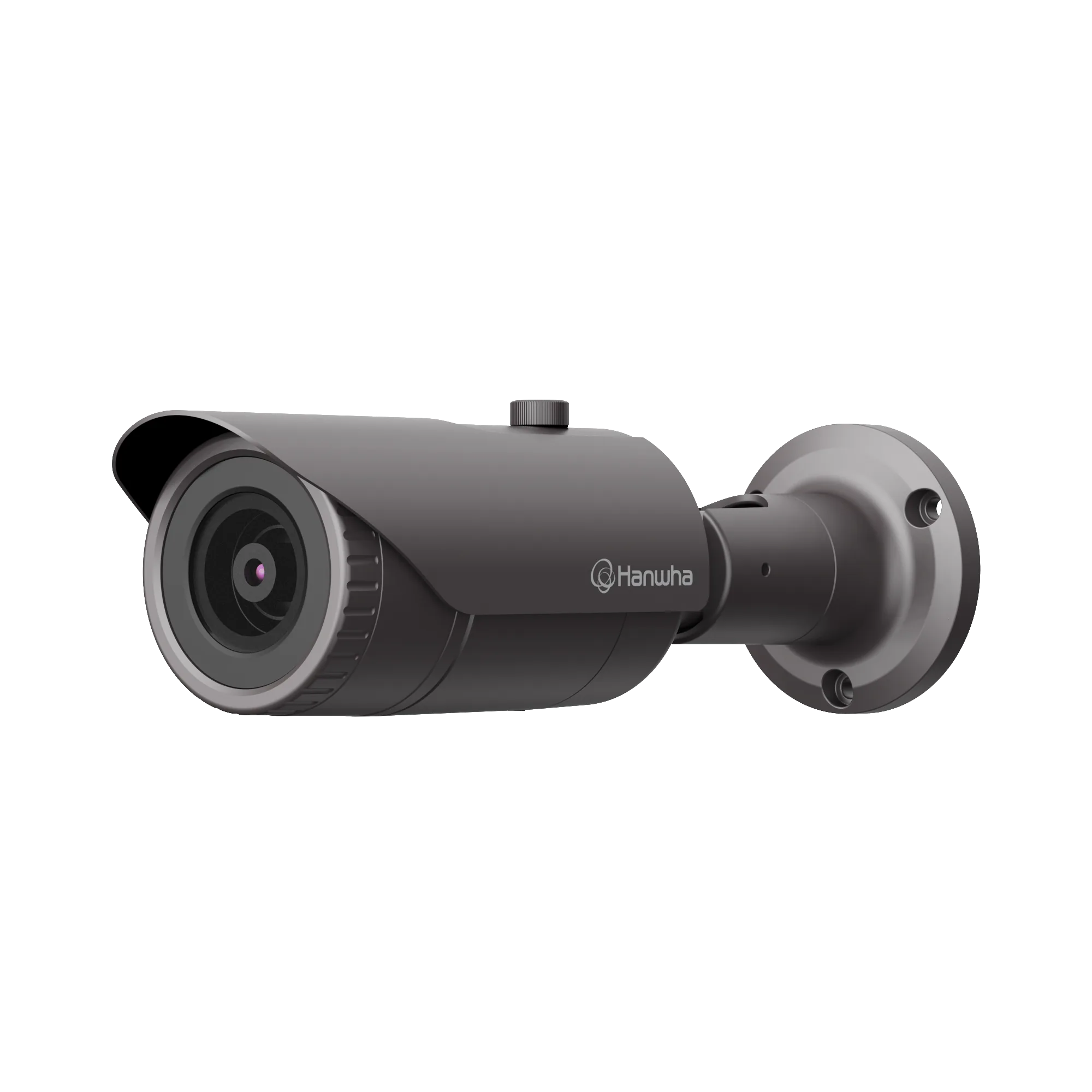

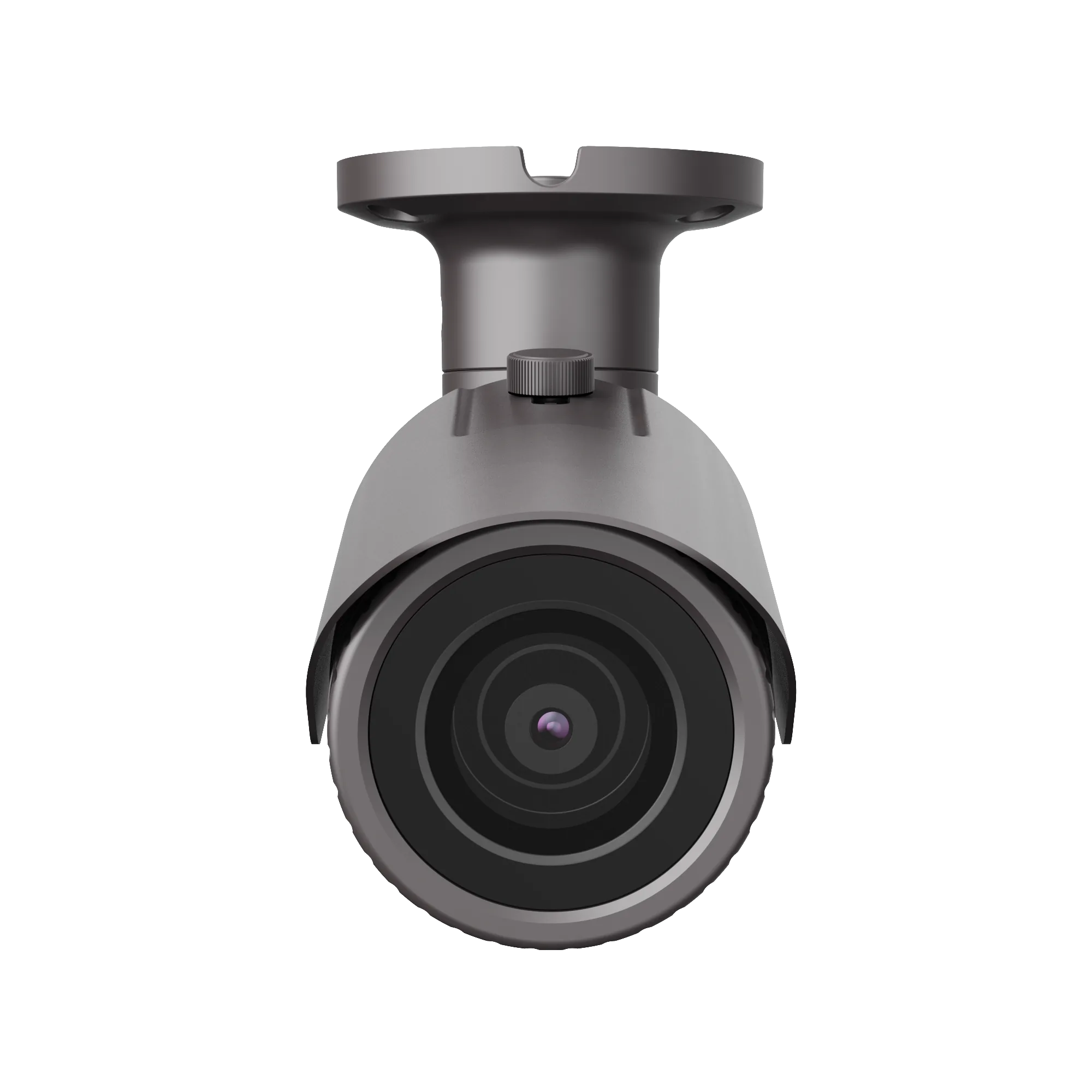

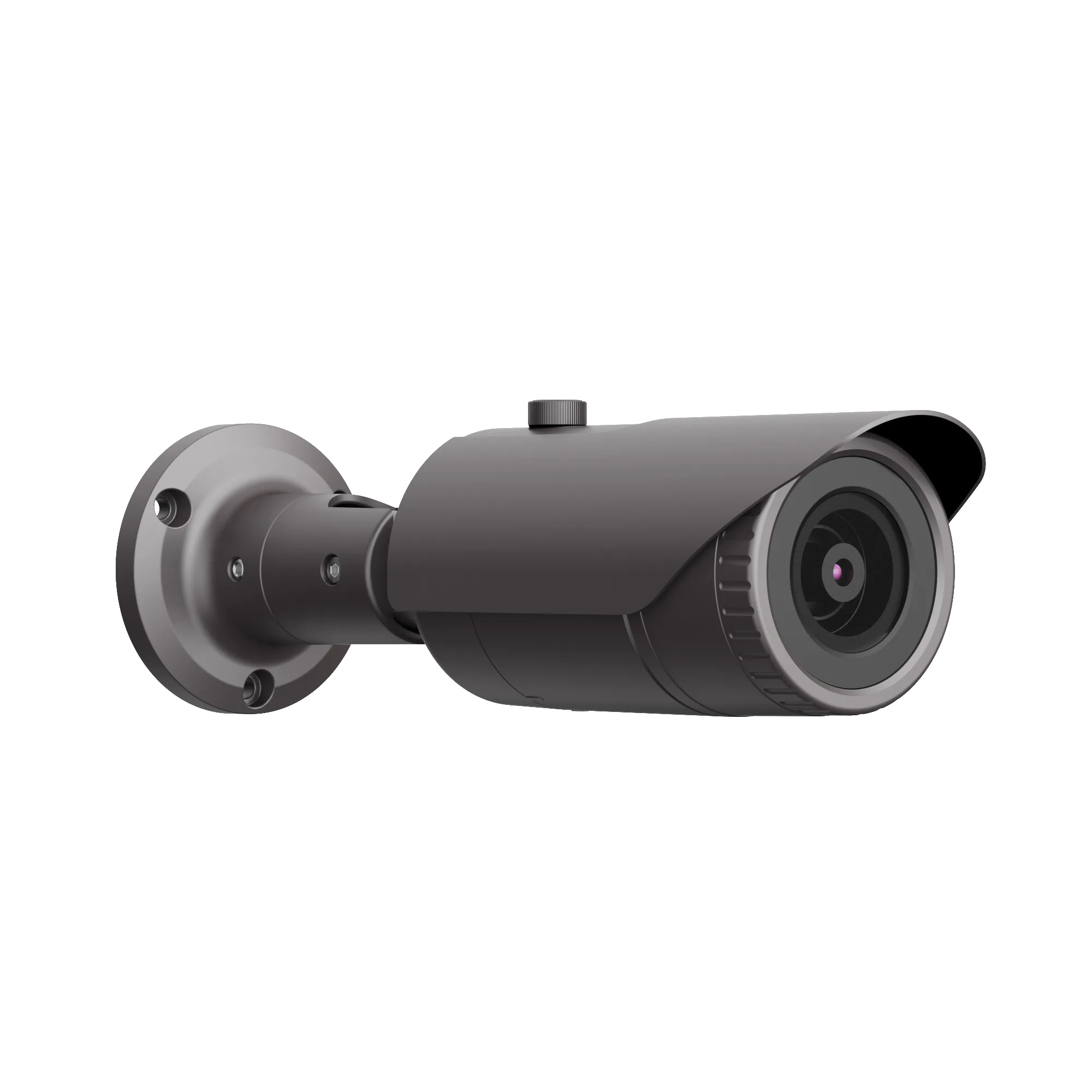

2MP IR Bullet
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 3-4 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- QNO-6012R
- EAN / GTIN
- 8801089164230
- Weight
- 0.95 kg
- Dimensions (W×H×D)
- 120 × 290 × 110 mm
Description
The QNO-6012R is an IR bullet network camera with a 1/2.8-inch CMOS sensor and a maximum resolution of 2MP (1920 x 1080). Fixed lenses of 2.8 mm, 4 mm and 6 mm are offered; the 2.8 mm version at F2.0 covers 114° horizontally, 62° vertically and 135° diagonally at a minimum object distance of 0.5 m. Across all resolutions H.265 and H.264 reach 30fps/25fps (60Hz/50Hz), while MJPEG manages 15fps and up to 4fps at 2MP, with multiple streaming supported. Colour images start at 0.03 lux, black and white at 0.003 lux, and 0 lux with the IR LED switched on. ICR day/night switching, 120 dB WDR, BLC, SSDR and SSNR work together with motion, tampering and defocus detection. Hallway view at 90° and 270° and LDC are supported, and the Micro SD/SDHC/SDXC slot takes up to 128 GB.
- 2MP resolution (1920 x 1080)
- 2.8 mm, 4 mm or 6 mm fixed lens
- 120 dB WDR, ICR day/night
- Hallway view 90°/270°, LDC support
- Micro SD/SDHC/SDXC slot up to 128 GB
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Analytics (1)
- Analytics / Analytics Events – Normal
- Defocus detection, Motion detection, Tampering, Virtual area(Intrusion/Enter/Exit), Virtual line(Crossing, Direction)
Certifications & Standards (3)
- Certifications & Standards – EMC
- FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835
- Certifications & Standards – Environment
- IEC/EN 63000, IEC 60529 IP66, IEC 62262 IK10
- Certifications & Standards – Safety
- UL 60950-1, CAN/CSA C22.2 NO. 60950-1, IEC 62471
DORI (EN62676-4 standard) (4)
- DORI (EN62676-4 standard) / Detect (25PPM/ 8PPF) – Wide
- 25.1m(82.21ft)
- DORI (EN62676-4 standard) / Identify (250PPM/ 76PPF) – Wide
- 2.5m(8.22ft)
- DORI (EN62676-4 standard) / Observe (63PPM/ 19PPF) – Wide
- 10.0m(32.89ft)
- DORI (EN62676-4 standard) / Recognize (125PPM/ 38PPF) – Wide
- 5.0m(16.44ft)
Environmental & Electrical (8)
- Environmental & Electrical / Operating Condition – Humidity
- 0~90% RH(non-condensing)
- Environmental & Electrical / Operating Condition – Others
- Start up should be done at above -20°C
- Environmental & Electrical / Operating Condition – Temperature
- -30°C~+55°C(-22°F~+131°F)
- Environmental & Electrical / Power Consumption – 12VDC
- Max. 6.1W, typical 4.5W
- Environmental & Electrical / Power Consumption – PoE
- Max. 7.0W, typical 5.2W
- Environmental & Electrical / Storage Condition – Humidity
- 0~90% RH(non-condensing)
- Environmental & Electrical / Storage Condition – Temperature
- -30°C~+60°C(-22°F~+140°F)
- Environmental & Electrical – Input Voltage
- PoE(IEEE802.3af, Class3), 12VDC
General (3)
- General / Edge Storage – Micro SD/SDHC/SDXC
- Max. 128GB x 1slot
- General / Memory – Flash
- 256MB
- General / Memory – RAM
- 512MB
Lens (7)
- Lens / Angular Field of View – Diagonal
- 135°
- Lens / Angular Field of View – Horizontal
- 114°
- Lens / Angular Field of View – Vertical
- 62°
- Lens / Max Aperture Ratio (F number) – Wide
- 2.0
- Lens – Focal Length (mm)
- 2.8
- Lens – Focus Control
- Fixed
- Lens – Min. Object Distance
- 0.5m(1.64ft)
Mechanical (5)
- Mechanical – Color
- Dark grey
- Mechanical – Compatible Gang Box
- Single, Double, 4" Octagon
- Mechanical – Material
- Aluminum
- Mechanical – Product Dimensions
- ø70.0x246.0mm(2.76x9.69")
- Mechanical – Product Weight
- 700g(1.54lb)
Network (12)
- Network / Application Programming Interface – ONVIF
- S, G, T
- Network / Application Programming Interface – Others
- SUNAPI(HTTP API), Hanwha Vision Open Platform
- Network / Streaming – Multicast
- Support
- Network / Streaming – Multiple Streaming
- Up to 3 profiles
- Network / Streaming – Unicast
- Up to 6 users
- Network – Audio Compression
- G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps
- Network – Bitrate Control
- H.265/H.264: CBR or VBR, MJPEG: VBR
- Network – Direct Cloud Connection
- Optional (needs gateway)
- Network – Ethernet
- RJ-45(10/100BASE-T)
- Network – Protocol
- IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast)
- Network – Smart Codec
- WiseStreamⅡ
- Network – Video Compression
- H.265/H.264: Main/High, MJPEG
Operational (21)
- Operational / Alarm Interface – In/Out
- Input 1ea, Output 1ea
- Operational / Electronic Shutter – Mode
- Minimum, Maximum, Anti flicker
- Operational / Electronic Shutter – Speed Range
- 1/5~1/12,000sec
- Operational / Light Viewable Length – IR
- 20m(65.62ft)
- Operational / Motion Detection – Quantity
- 4ea
- Operational / Motion Detection – Shape
- 8point Polygonal zones
- Operational / Privacy Masking – Quantity
- 6ea
- Operational / Privacy Masking – Shape
- Rectangular zones
- Operational – Alarm Events When Alarm Trigger Occurred
- File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset
- Operational – Alarm Triggers
- Analytics, Network disconnect, Alarm input
- Operational – Audio In
- Selectable(mic in/line in)
- Operational – Backlight Compensation
- BLC, WDR, SSDR
- Operational – Day & Night
- Auto(ICR)
- Operational – Digital Noise Reduction
- SSNR
- Operational – Gain Control
- Low, Middle, High
- Operational – IR Wavelength
- 850nm
- Operational – LDC
- Support
- Operational – Light Type
- IR LED
- Operational – Video Rotation
- Flip, Mirror, Hallway view(90°/270°)
- Operational – White Balance
- ATW, AWC, Manual, Indoor, Outdoor
- Operational – Wide Dynamic Range (dB)
- 120
Pan (3)
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Pan
- 0°~360°
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Rotate
- 0°~360°
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Tilt
- 0°~100°
Security (9)
- Security – Access Control
- IP-based access control
- Security – Audit
- Access / System / Event Log management
- Security – Data Protect
- Encryption credentials, Encrypt compress for live recording file export
- Security – Device ID
- Device certificate(Hanwha Vision Root CA)
- Security – Network authentication
- IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
- Security – OS / Firmware Protect
- Encrypted firmware
- Security – Secure Communication
- HTTPS, WSS(WebSocket Secure), SRTP
- Security – Secure Storage
- SDcard partition encrypt(AES-256)
- Security – User authentication
- Digest authentication, Prevent brute-force attack
Video (8)
- Video / Imaging Device – Size
- 1/2.8"
- Video / Imaging Device – Type
- CMOS
- Video / Max. Framerate – H.265/H.264
- 30fps/25fps(60Hz/50Hz)
- Video / Max. Framerate – MJPEG
- 15fps(@2MP Max. 4fps)
- Video / Min. Illumination (Lux) – BW(1/30sec, 30IRE)
- 0.003
- Video / Min. Illumination (Lux) – Color(1/30sec, 30IRE)
- 0.03
- Video – Resolution
- 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360
- Video – Video Out
- CVBS: 1.0 Vp-p / 75Ω composite for installation
