2MP Analogue HD+ IR Bullet
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 3-4 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- HCO-6020R
- EAN / GTIN
- 8801089155368
- Weight
- 0.51 kg
- Dimensions (W×H×D)
- 120 × 285 × 110 mm
Description

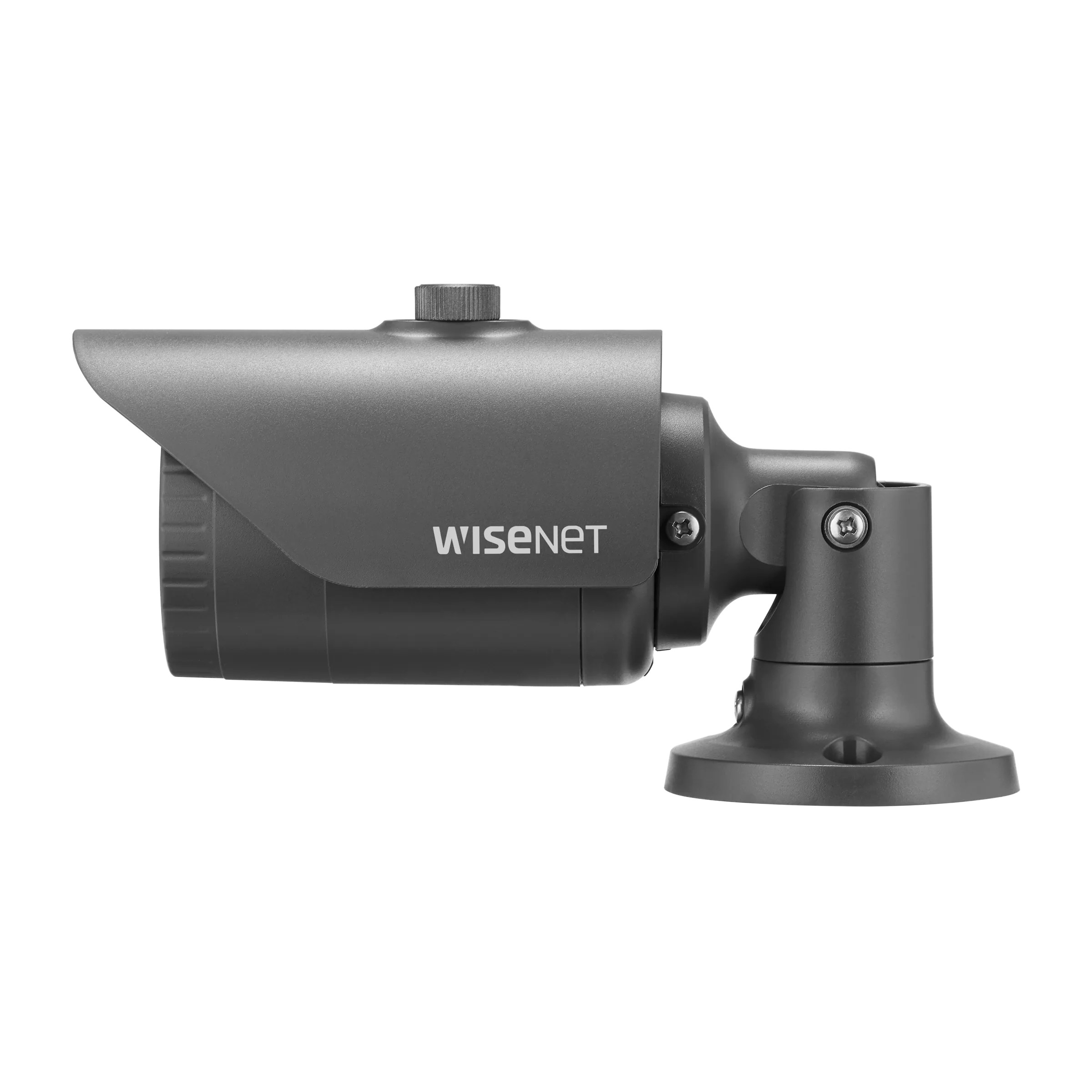

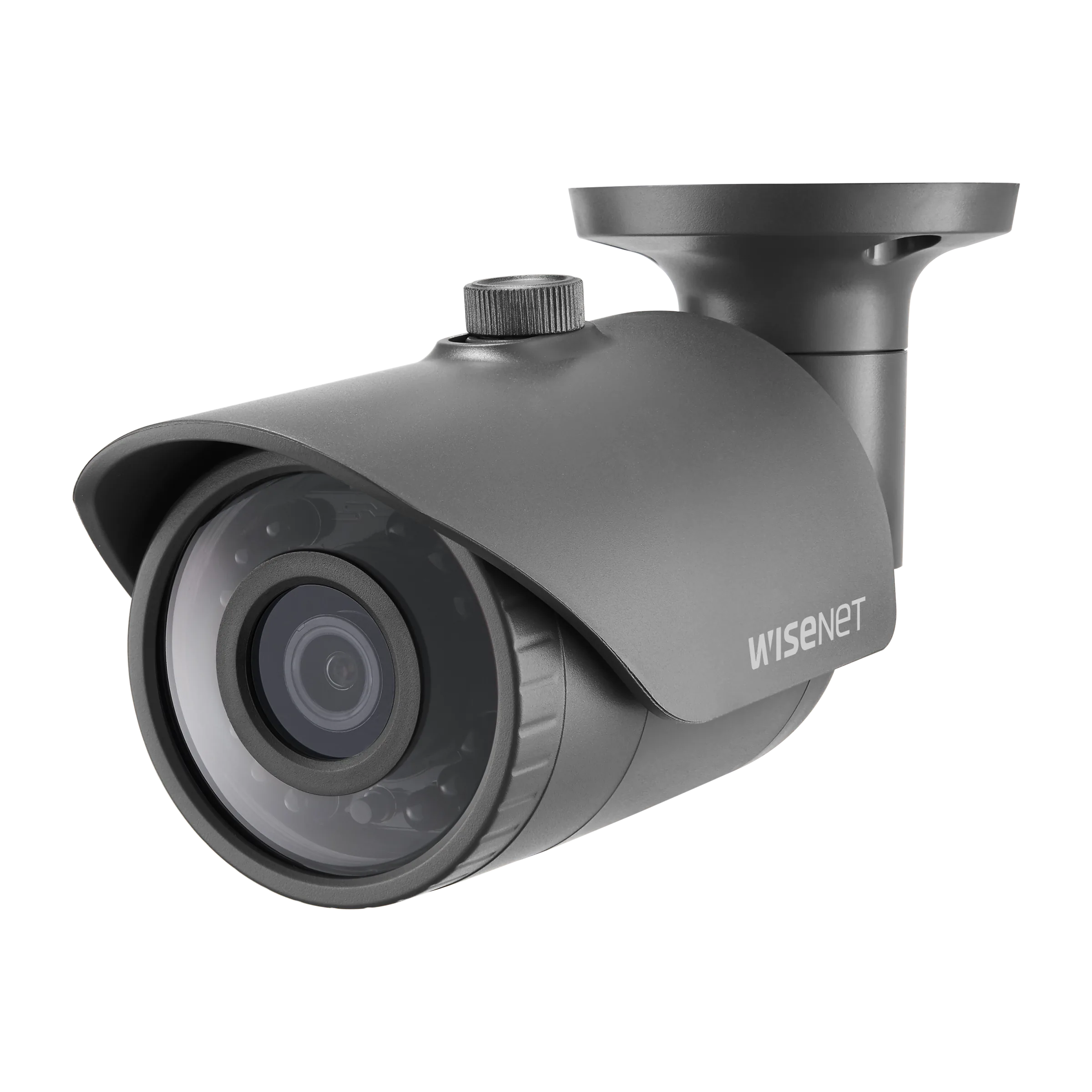

The HCO-6020R is an analog IR bullet camera using a 1/2.8-inch CMOS sensor to record 2 megapixels, or 1920x1080, at 30fps (NTSC) or 25fps (PAL). A fixed 4mm F1.6 lens gives 87.6° horizontal, 46.4° vertical and 104.5° diagonal coverage, focus is manual and the minimum object distance is 0.5m. Sensitivity is quoted at 0.17 lux in colour and 0.017 lux in black and white, with an automatic ICR filter managing the day and night change. Video is available over BNC as AHD, TVI, CVI or CVBS and can be run up to 500m on 5C2V coaxial cable. Image tuning relies on BLC, HLC and 120dB WDR together with SSNRⅣ noise reduction and a defog function. Four motion detection areas and eight privacy zones are also provided.
- 1/2.8-inch CMOS sensor, 1920x1080
- Fixed 4mm F1.6 lens
- 0.17 lux colour, 0.017 lux black and white
- 120dB WDR, SSNRⅣ, defog
- Eight privacy zones, four motion areas
- AHD/TVI/CVI/CVBS BNC output up to 500m
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Analytics (1)
- Analytics / Analytics Events – Normal
- Motion detection
Certifications & Standards (1)
- Certifications & Standards – Environment
- IEC 60529 IP66
Environmental & Electrical (4)
- Environmental & Electrical / Operating Condition – Humidity
- 0~90% RH(non-condensing)
- Environmental & Electrical / Operating Condition – Temperature
- -30°C~+55°C(-22°F~+131°F)
- Environmental & Electrical – Input Voltage
- 12VDC
- Power Consumption 12VDC
- Max 5.4W
Lens (7)
- Lens / Angular Field of View – Diagonal
- 104.5°
- Lens / Angular Field of View – Horizontal
- 87.6°
- Lens / Angular Field of View – Vertical
- 46.4°
- Lens / Max Aperture Ratio (F number) – Wide
- 1.6
- Lens – Focal Length (mm)
- 4
- Lens – Focus Control
- Manual
- Lens – Min. Object Distance
- 0.5m(1.64ft)
Mechanical (4)
- Mechanical – Color
- Dark grey
- Mechanical – Material
- PC(Polycarbonate)
- Mechanical – Product Dimensions
- ø58.6x165.2mm(2.31x6.50")
- Mechanical – Product Weight
- 279g(0.62lb)
Operational (14)
- Coaxial Protocol
- ACP, TCP, CCP, CVBS
- Defog
- Support
- IR Viewable Length
- 30m(98.43ft)
- Operational / Electronic Shutter – Speed Range
- 1~1/12,000sec
- Operational / Motion Detection – Quantity
- 4ea
- Operational / Privacy Masking – Quantity
- 8ea
- Operational / Privacy Masking – Shape
- Rectangular zones
- Operational – Backlight Compensation
- BLC, HLC, WDR
- Operational – Day & Night
- Auto(ICR)
- Operational – Digital Noise Reduction
- SSNRⅣ
- Operational – Gain Control
- Low, Middle, High, Very High
- Operational – Video Rotation
- Flip, Mirror
- Operational – White Balance
- ATW, AWC, Manual, Indoor, Outdoor
- Operational – Wide Dynamic Range (dB)
- 120
Video (8)
- Max. Framerate(NTSC/PAL)
- 30fps/25fps
- Min. Illumination BW
- 0.017
- Min. Illumination Color
- 0.17
- Video / Imaging Device – Size
- 1/2.8"
- Video / Imaging Device – Type
- CMOS
- Video Transmission Distance
- 500m(5C2V Coaxial Cable)
- Video – Resolution
- 1920x1080
- Video – Video Out
- BNC: AHD/TVI/CVI/CVBS Selectable
