24" All-in-One PC for Clinical Workflows
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 3-4 days
Product data
- Manufacturer
- AG-Neovo
- Article number
- TXA-2401
- EAN / GTIN
- 4710739598957
Description
Designed as an all-in-one PC for clinical workflows, the TXA-2401 uses a 23.8-inch VA panel with a 3000:1 contrast ratio, 178/178 degree viewing angles, 5 ms response time and 0.274 mm pixel pitch. Input is projective capacitive with a positional accuracy of plus/minus 2.5 mm across a clear glass surface. Windows 11 IoT Enterprise 64-bit comes preinstalled, backed by 8 GB DDR4 expandable to 32 GB and a 2.5-inch SATA SSD of 256 GB that can grow to 1 TB, with an optional M.2 2280 SATA SSD from 64 GB to 1 TB. Connectivity covers two RJ45 LAN ports, HDMI 1.4, one COM port, four USB 2.0 and four USB 3.0 ports plus Wi-Fi 802.11 a/b/g/n/ac/ax with Bluetooth 5.2. A 5 MP camera, two microphones and two 3 W speakers handle communication. Power comes from an external supply rated DC 19 V, 4.74 A.
- 23.8-inch VA panel, 3000:1 contrast
- Windows 11 IoT Enterprise 64-bit
- 8 GB DDR4 to 32 GB, SATA SSD 256 GB to 1 TB
- Wi-Fi 802.11 a/b/g/n/ac/ax and Bluetooth 5.2

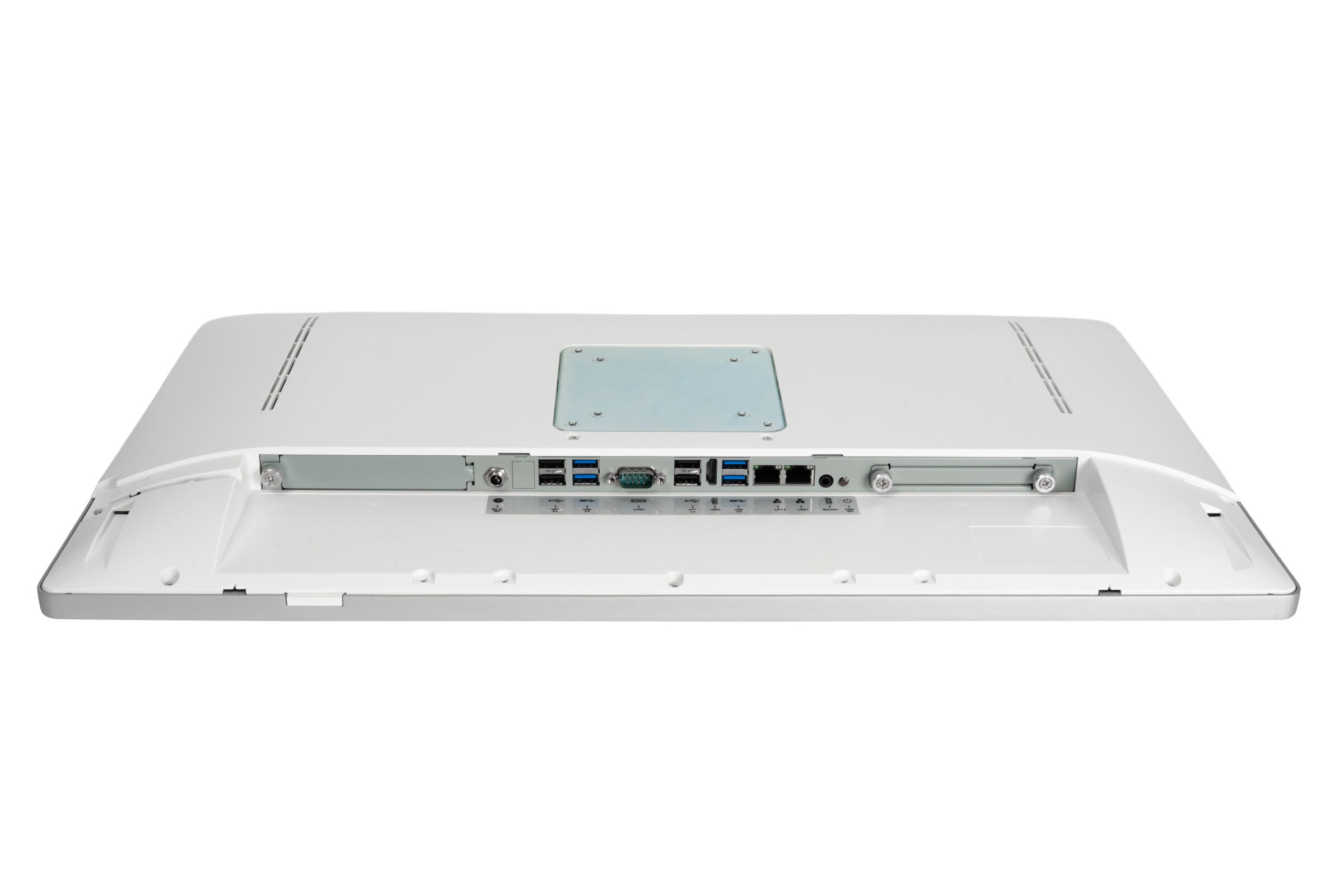

- 2x LAN RJ45, HDMI 1.4, COM, 4x USB 2.0, 4x USB 3.0
- 5 MP camera, two microphones, 2x 3 W speakers
Made by
AG Neovo builds displays for continuous operation: surveillance monitors with 24/7 rating, metal housing and burn-in protection from 10 to 55 inches, public view monitors with a built-in camera, stretched displays for video walls, 4K digital signage, interactive smartboards with AI camera, plus workstations and mounts. Every model comes with technical data, data sheet, manual and certificates. AI4Vision is an authorised distributor; trade prices after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
- Aspect Ratio
- 16:9
- Bezel Width
- Even bezel 2.0 mm
- Brightness
- 250 cd/m², < 350 cd/㎡
- CPU
- Intel Tiger Lake i5-1135-G7
- Camera Pixel
- 1.4um x 1.4um
- Camera Resolution
- 5MP
- Casing Colour
- White
- Ceiling Mount
- CMP-01 + WMK-03
- Certifications & Compliance
- CE, LVD, UKCA, IEC/EN 60601-1, IEC/EN 60601-1-2, WEEE, RoHS, REACH
- Colour Gamut
- NTSC 72%
- Contrast Ratio
- 3000:1
- Desk Mount
- DMC-01, DMC-02D
- Display Colour
- 16.7M
- External Control
- RJ45
- Features
- Speaker
- HDMI
- 1.4 x 1
- Humidity
- 10%-90% (non-condensing)
- IK Rating
- IK05
- IP Rating
- Front-Sided IP65
- Innovation
- White Casing
- Internal Speakers
- 3W x 2
- LAN
- RJ45 x 2
- MOHS Hardness
- 5
- Max. Resolution
- FHD 1920 x 1080
- Memory
- 8GB DDR4 (default), support up to 32GB
- Microphone
- x 2
- Multi-touch Plug & Play
- 10-point touch Windows® 11
- OS
- Windows 11 IoT Enterprise 64bit
- Off Mode
- 1. WOL off ( System off ) : Max 1.1w 2. WOL On (System on ) : Max 1.3w
- On Mode (Max)
- 75W
- Operating Time (Internal)
- 24/7
- Orientation
- Landscape / Portrait
- Outputs
- HDMI
- Packaging
- 9.6 kg (21.2 lb)
- Packaging (W x H x D)
- 648.0 x 520.0 x 164.0 mm (25.5" x 20.5" x 6.5")
- Panel Size
- 23.8"
- Panel Size on Carton
- 23.8"
- Panel Type
- VA
- Pixel Pitch
- 0.274 mm
- Positional Accuracy
- ±2.5mm
- Power Adaptor Certifications
- CE, cUL/UL, IEC/EN 60601-1, IEC/EN 60601-1-2, ROHS, WEEE
- Power Requirements
- DC 19V, 4.74A
- Power Supply
- External
- Product w/o Base
- 6.8 kg (15.0 lb)
- Product w/o Base (W x H x D)
- 581.4 x 353.4 x 43.1 mm (22.9" x 13.9" x 1.7")
- Rear Cover Material
- Plastic
- Resolution
- FHD 1920 x 1080 (16:9)
- Response Time
- 5 ms
- Serial/COM
- COM x 1
- Sizes
- 22"-28"
- Stand
- DMS-01D, ES-02
- Standby Mode
- < 5W
- Storage
- 2.5” SATA SSD 256GB (default), support up to 1TB; SATA M.2 2280 SSD 64GB–1TB (Optional)
- Supplied
- Power Adaptor, Power Cord
- Surface Treatment
- Anti-Glare Treatment (Haze 40%),3H Hard Coating, Clear Glass
- Technology
- Projective Capacitive
- Temperature
- -20°C-60°C (-4°F-140°F), 0°C-40°C (32°F-104°F)
- Thickness
- 2.4mm (0.09")
- Touch Technology
- PCAP
- USB
- 2.0 x 4, 3.0 x 4
- VESA FPMPMI
- YES (75 x 75 mm, 100 x 100 mm)
- Viewing Angle (H/V)
- 178°/178°
- Viewing Angles
- 178/178
- Wall Mount
- PMK-01, WMA-01, WMK-01, WMK-03
- Wi-Fi/Bluetooth
- Wi-Fi 802.11 a/b/g/n/ac/ax, Bluetooth 5.2
