1-ch Indoor EPoC Surge Protector
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 2-3 weeks
Product data
- Manufacturer
- AETEK
- Article number
- SD-301
- EAN / GTIN
- 4711502640484
Description

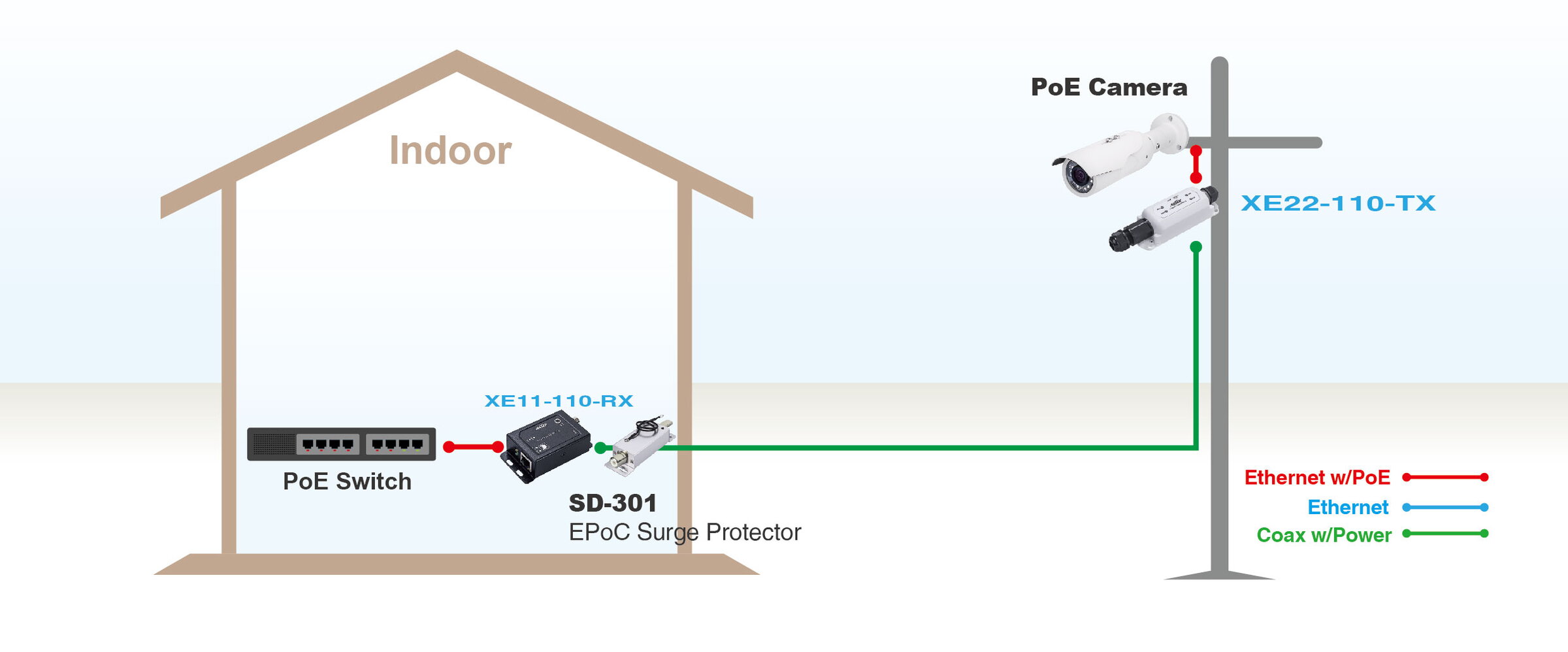

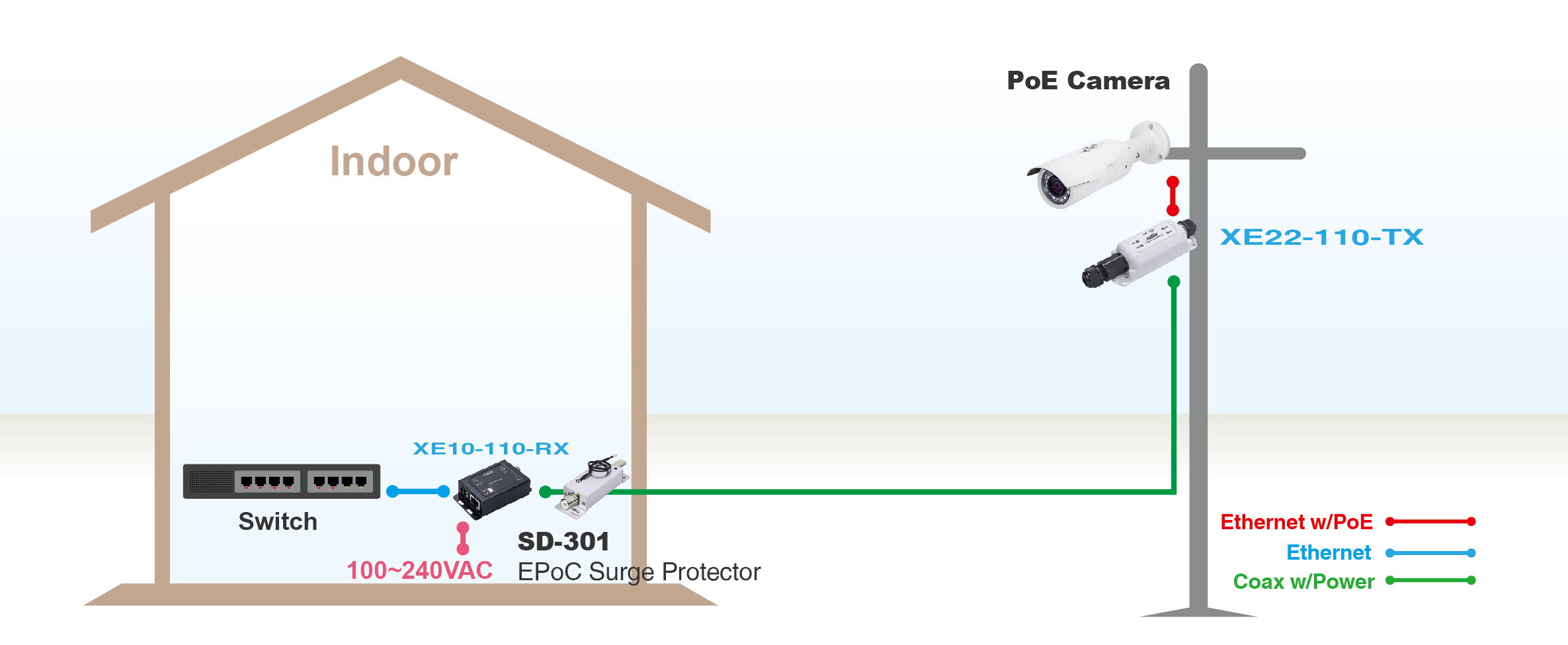

Single-channel surge protector for EPoC links, mounted beside the EPoC receiver to guard both the signal and the power path on the coaxial run. Two BNC sockets form the pass-through. Protection level is 6 kV in common and differential mode alike, clamping voltage 100 V in both, discharge current 2 kA at 1 kA per line, response time 5 ns. Up to 60 V DC and 1 A are permitted, at which point dissipation is 2 W. An indicator lights once the protector is used up. Wall mounted, operating and storage range -40 °C to 85 °C, humidity 5 to 95 % non-condensing, 80 x 40 x 25 mm, 0.18 kg, EMC to CE and FCC.
Made by
AETEK builds PoE switches for video security installations: from compact 4-port units to 24-port switches, with PoE+ and PoE++/bt, as desktop, rack and ceiling units with daisy-chain capability, also for outdoors with fibre uplinks. For selection, look at total PoE budget, port count, SFP uplinks and temperature range. Technical data and data sheets on every article, trade prices after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Certifications (1)
- Certifications EMC
- CE, FCC
Environmental Specifications (4)
- Environmental Specifications – Operating Humidity
- 5% ~ 95% non-condensing
- Environmental Specifications – Operating Temperature
- -40°C~ 85°C (-40°F~ 185°F)
- Environmental Specifications – Storage Temperature
- -40°C~ 85°C (-40°F~ 185°F)
- Environmental Specifications – Weather Rating
- -
Mechanical Specifications (3)
- Mechanical Specifications – Connectors
- BNC x 2
- Mechanical Specifications – Dimensions (L x W x H)
- 80 x 40 x 25 mm
- Mechanical Specifications – Weight
- 0.18KG
Specifications (9)
- Common Mode Clamping Voltage
- 100V
- Common Mode Protection Level
- 6KV
- Number of Ports
- 1
- Power Dissipation @ 1A
- 2W
- Specifications Response Time
- 5ns
- Specifications – Differential Mode Clamping Voltage
- 100V
- Specifications – Differential Mode Protection Level (10/700us)
- 6KV
- Specifications – Max Discharge Current (8/20us, 1KA per Line)
- 2KA
- Specifications – Maximum Operation DC Voltage 60VDC Maximum Operation DC Current
- 1A
